Designed for musicians, performers, presenters, and instructors, the JBL IRX115S is a powered 15" portable subwoofer that's designed to complement the IRX108BT and IRX112BT full-range PA speakers. The subwoofer provides remarkable volume, clarity, and a total ease of use. When combined with the IRX-series tops, the professionally engineered package can outperform larger competing systems.

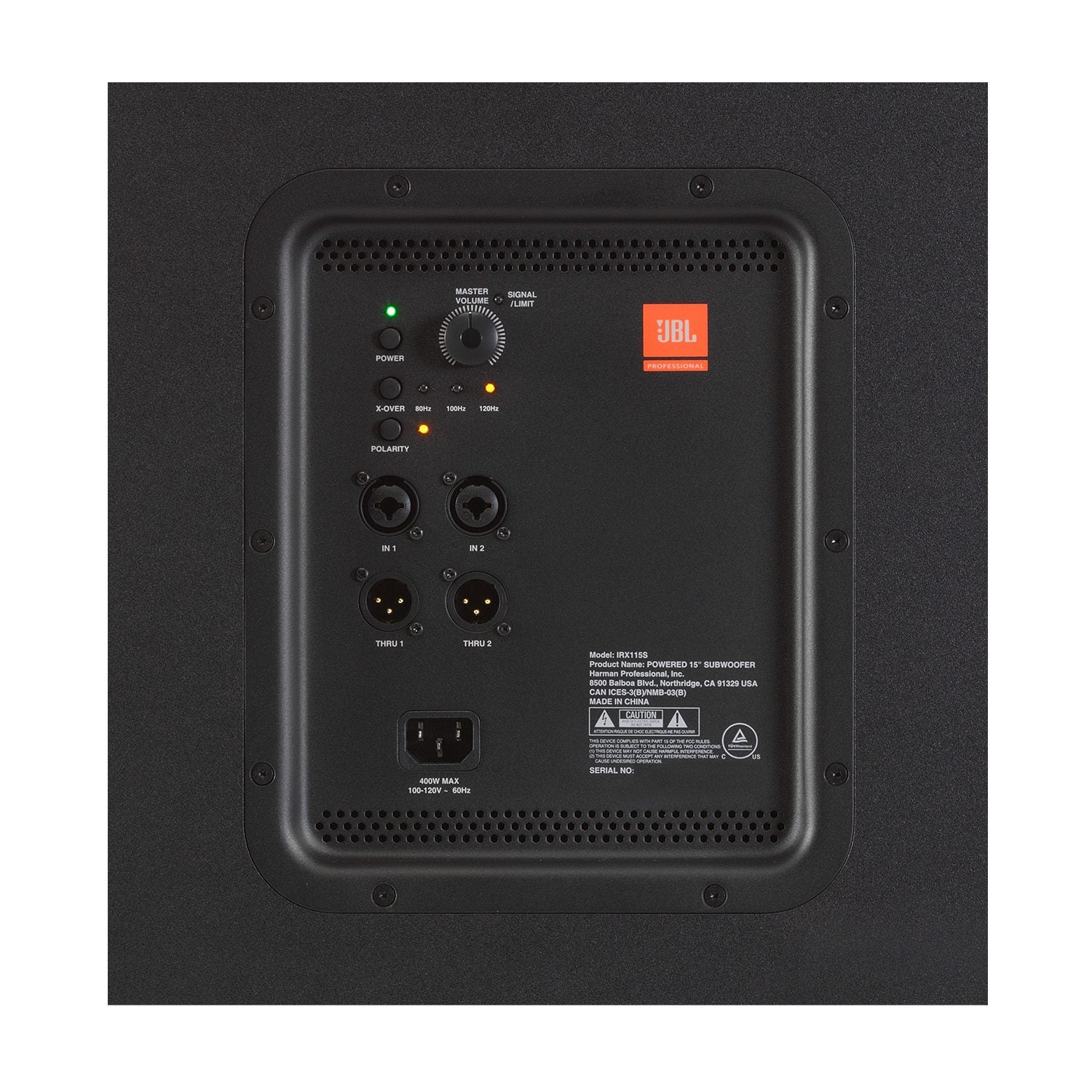

The IRX115S features three user selectable crossover settings (80, 100, 120 Hz) and a polarity switch to let you dial-in an optimal settings quickly and efficiently. The rear panel provides 2-channels of line inputs, each with combo XLR-1/4" connectors as well as two XLR thru to connect additional subwoofers.
The MDF enclosure is rugged and capable of handling the rigors of on-the-road wear and tear. The 1300W amplifier powers the 15" woofer to provide a frequency response of 45 to 103 Hz with a peak SPL of 128 dB. The JBL IRX115S ships with a power cord.
Powerful 15" woofer with 3" voice-coil generates smooth, deep low-frequency responseSelectable 80, 100, and 120 Hz crossover points are optimized for JBL IRX Series loudspeakersPorted enclosure enhances output and reduces woofer noiseFrequency Response: 45 to 103 Hz (-3 dB)Power Rating: 1300WMax SPL: 128 dBI/Os: 2 XLR-1/4" combo inputs, 2 XLR out (thru)Polarity switch optimizes system responseLightweight, road-tested MDF cabinetBuilt-in pole mount expands system configuration optionsReinforced grille offers rugged protection without compromising acoustic performanceErgonomic handles make transport easyLightweight at 65.3 lb
JBL IRX 115S
Key Specifications
Speaker & Amplifier
Enclosure Type: Bass-Reflex
Total Output Power: 400 W RMS / 600 W Program / 1300 W Peak
Drivers
LF Driver: 1x 15" / 38 cm Woofer, Voice Coil: 3" / 76.2 mm
Performance
Frequency Range/Response: 35 Hz to 147 Hz (-10 dB), 45 Hz to 103 Hz (-3 dB)
Maximum SPL: 128 dB
Signal Processing
Crossover Frequency: 80 to 120 Hz
EQ & Filters: No
Alignment Delay: No
Digital Signal Processing: No
Connectivity
Audio I/O: 2x Combo XLR-1/4" TRS Line Input, 2x XLR 3-Pin Line Output
Network I/O: No
USB I/O: No
Wireless: No
Mobile App Compatible: No
Power
AC Input Power: 100 to 120 VAC, 60 Hz
AC Power I/O: 1x IEC Input
Physical
Color: Black

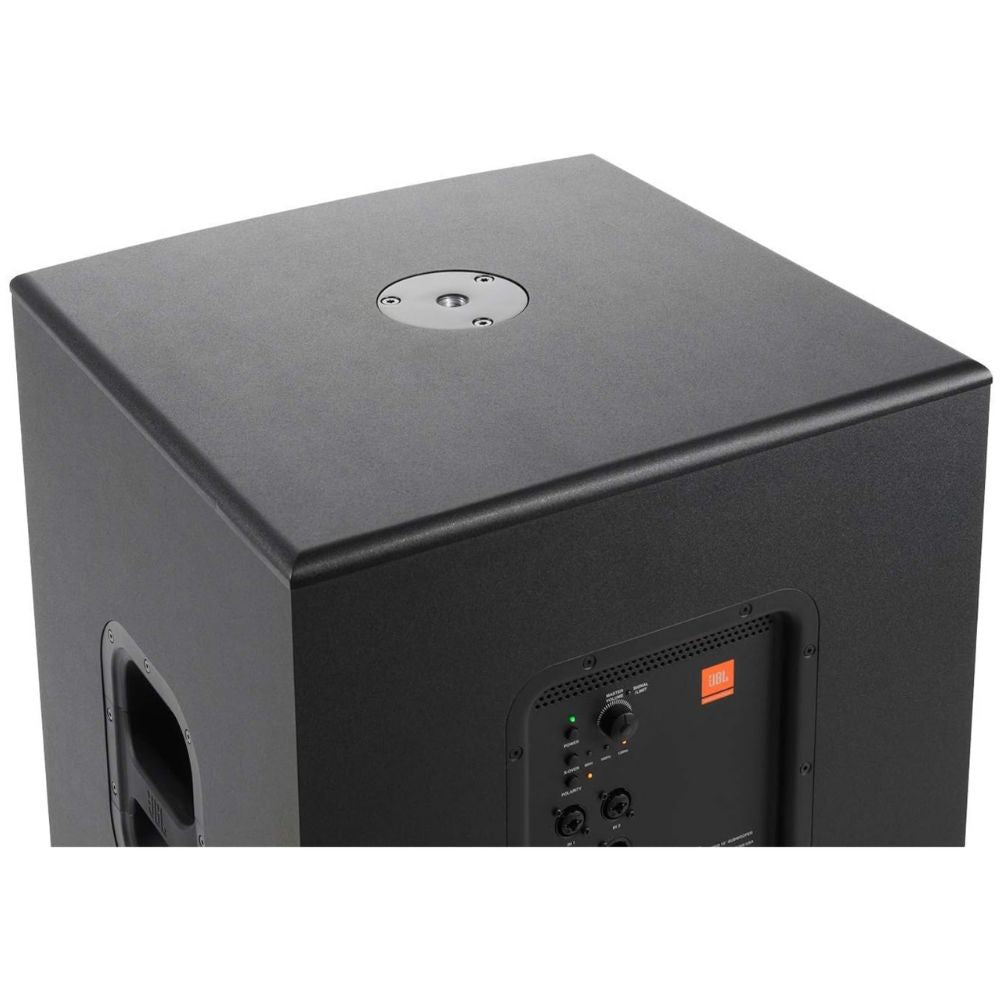

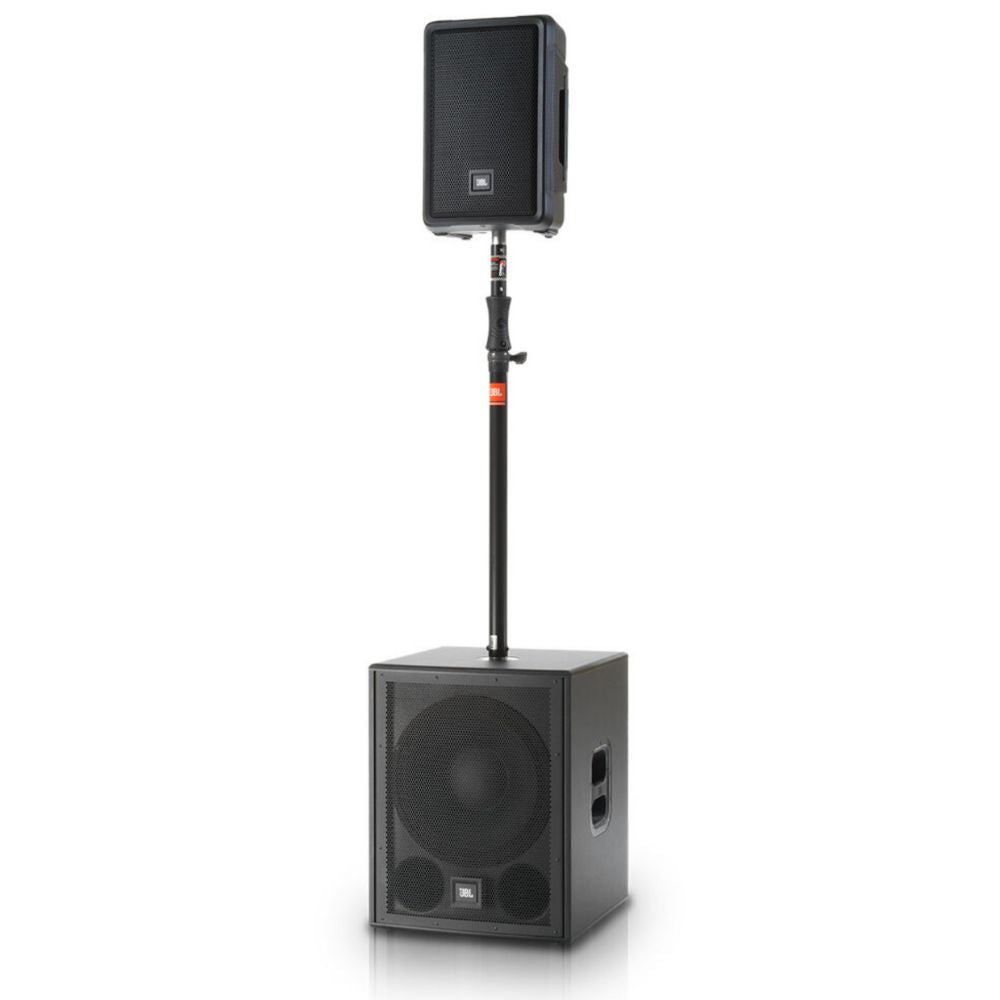

Mounting: 1x M20-Threaded Pole Socket (Top)
Handles: Yes
Construction Material: MDF, Metal Grille
Environmental Resistance: No
Dimensions: 23.6 x 18.9 x 18.9" / 59.9 x 48 x 48 cm
