Key Specifications

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Total Output Power

2000 W

LF Driver

1x 10" / 25.4 cm Woofer

HF Driver

1x 1.4" / 35.6 mm Titanium Compression Driver

Frequency Range/Response

50 Hz to 20 kHz (-10 dB)
56 Hz to 20 kHz (-6 dB)

Speaker

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

2000 W

Amplifier

Amplifier Power Rating

Low Frequency (LF): 1800 W Peak
Mid Frequency (MF): 225 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

1x 10" / 25.4 cm Woofer

HF Driver

1x 1.4" / 35.6 mm Titanium Compression Driver

Performance

Frequency Range/Response

50 Hz to 20 kHz (-10 dB)
56 Hz to 20 kHz (-6 dB)

Maximum SPL

130 dB (Peak)
124 dB (Continuous)

Coverage Angle

90° H x 90° V

Signal Processing

Crossover Frequency

80 / 100 / 125 Hz

EQ & Filters

4-Band Parametric EQ

Alignment Delay

Up to 100 ms (113' / 34.44 m)

Digital Signal Processing

No

Connectivity

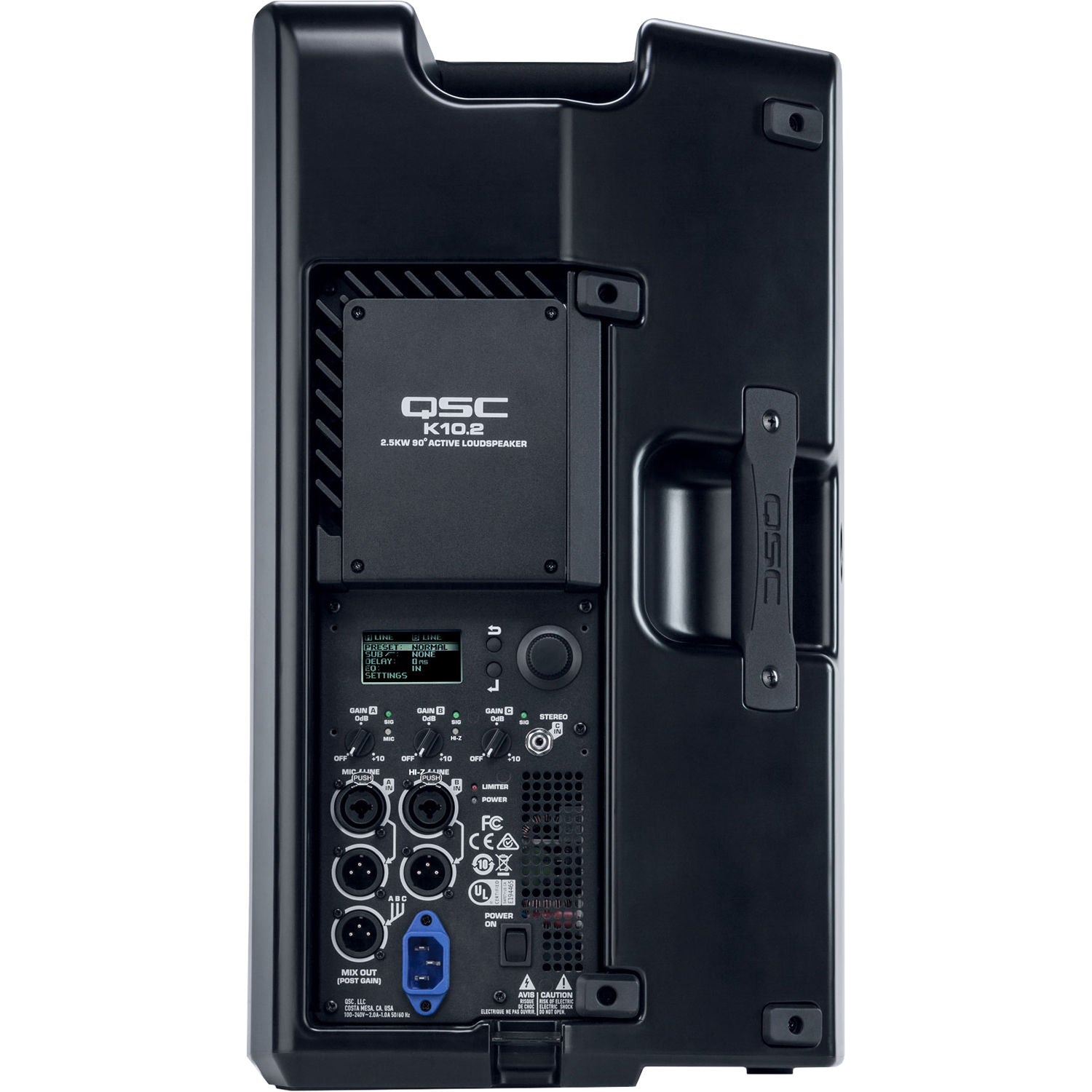

Audio I/O

1x Combo XLR-1/4" TRS Mic/Line Input
1x Combo XLR-1/4" TRS Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Aux Input
2x XLR 3-Pin Line Thru/Output
1x XLR 3-Pin Mix Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input (Locking)

Current Consumption

100 VAC: 2.1 A (1/8 Power)
120 VAC: 1.9 A (1/8 Power)
240 VAC: 1.1 A (1/8 Power)

Physical

Color

Black

Mounting

Stand Mount

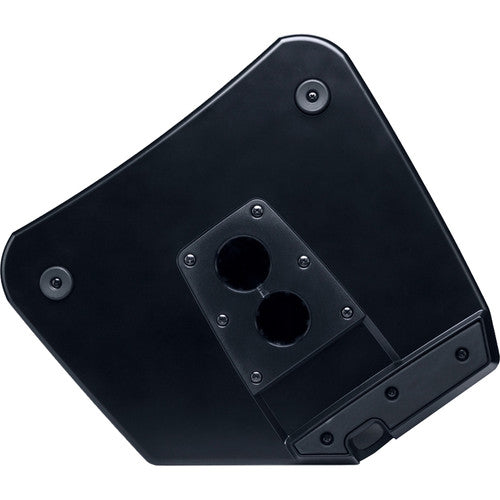

1 x 1.38" / 35 mm Dual-Angle Pole Socket (Bottom)
Suspension Points
2 x M10 Fly Point

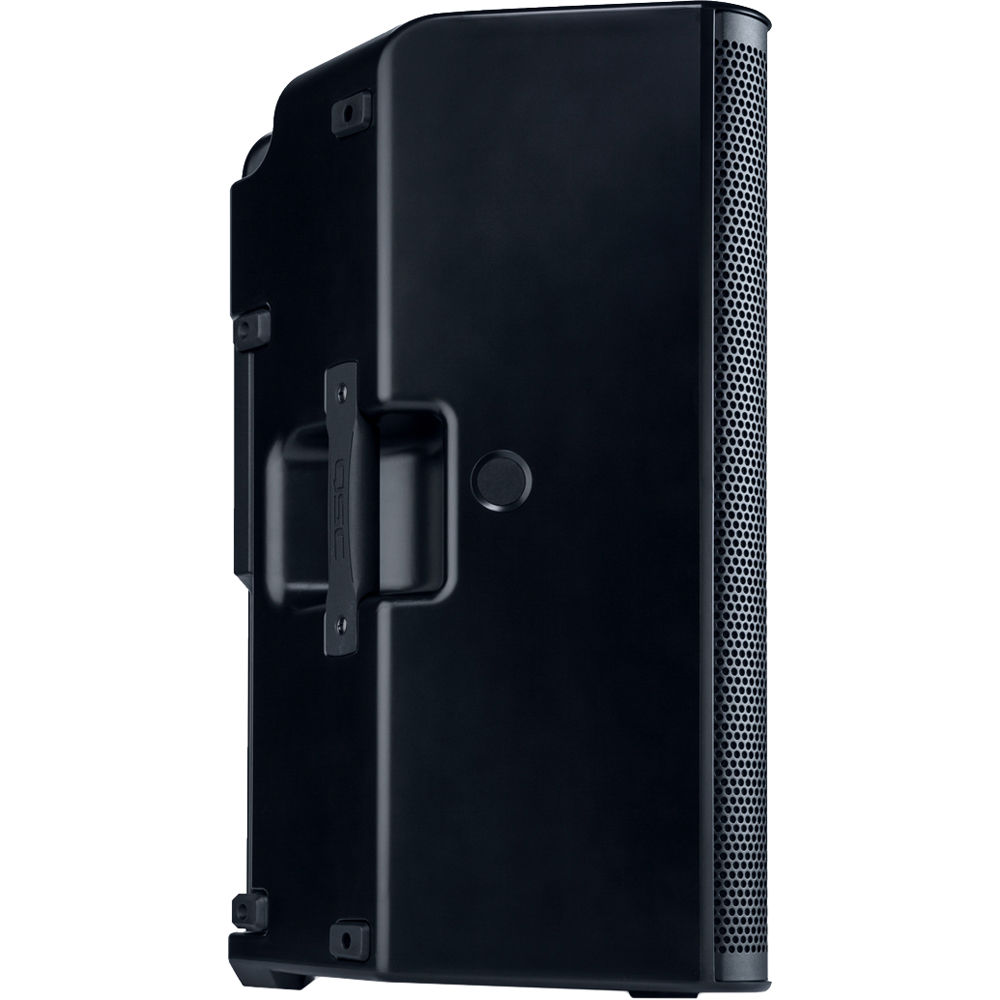

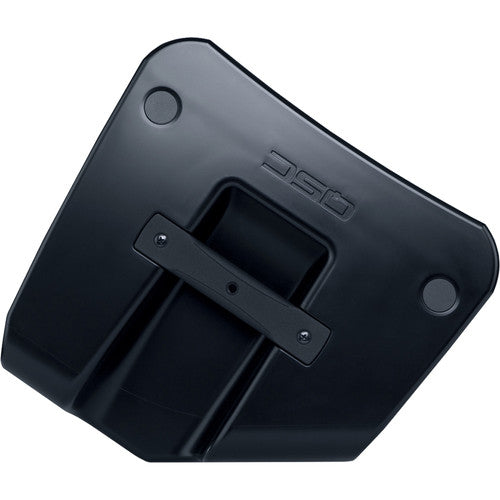

Handles

1x Top
1x Side

Construction Material

ABS, Metal Grille

Environmental Resistance

No

Dimensions

20.4 x 12.6 x 11.8" / 518.2 x 320 x 299.7 mm

Weight

32 lb / 14.5 kg

Packaging Info

Package Weight

38.8 lb

Box Dimensions (L × W × H)

22 x 17.5 x 16.5"
