Key Specifications

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Total Output Power

2000 W

LF Driver

1x 12" / 30.48 cm Woofer

HF Driver

1x 1.4" / 35.6 mm Titanium Compression Driver

Frequency Range/Response

45 Hz to 20 kHz (-10 dB)
50 Hz to 20 kHz (-6 dB)

Speaker

Speaker Type

Active Loudspeaker/Stage Monitor

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

2000 W

Amplifier

Amplifier Power Rating

Low Frequency (LF): 1800 W Peak
Mid Frequency (MF): 225 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

1x 12" / 30.48 cm Woofer

HF Driver

1x 1.4" / 35.6 mm Titanium Compression Driver

Performance

Frequency Range/Response

45 Hz to 20 kHz (-10 dB)
50 Hz to 20 kHz (-6 dB)

Maximum SPL

132 dB (Peak)
126 dB (Continuous)

Coverage Angle

75° Conical

Signal Processing

Crossover Frequency

80 / 100 / 125 Hz

EQ & Filters

4-Band Parametric EQ

Alignment Delay

Up to 100 ms (113' / 34.44 m)

Digital Signal Processing

No

Connectivity

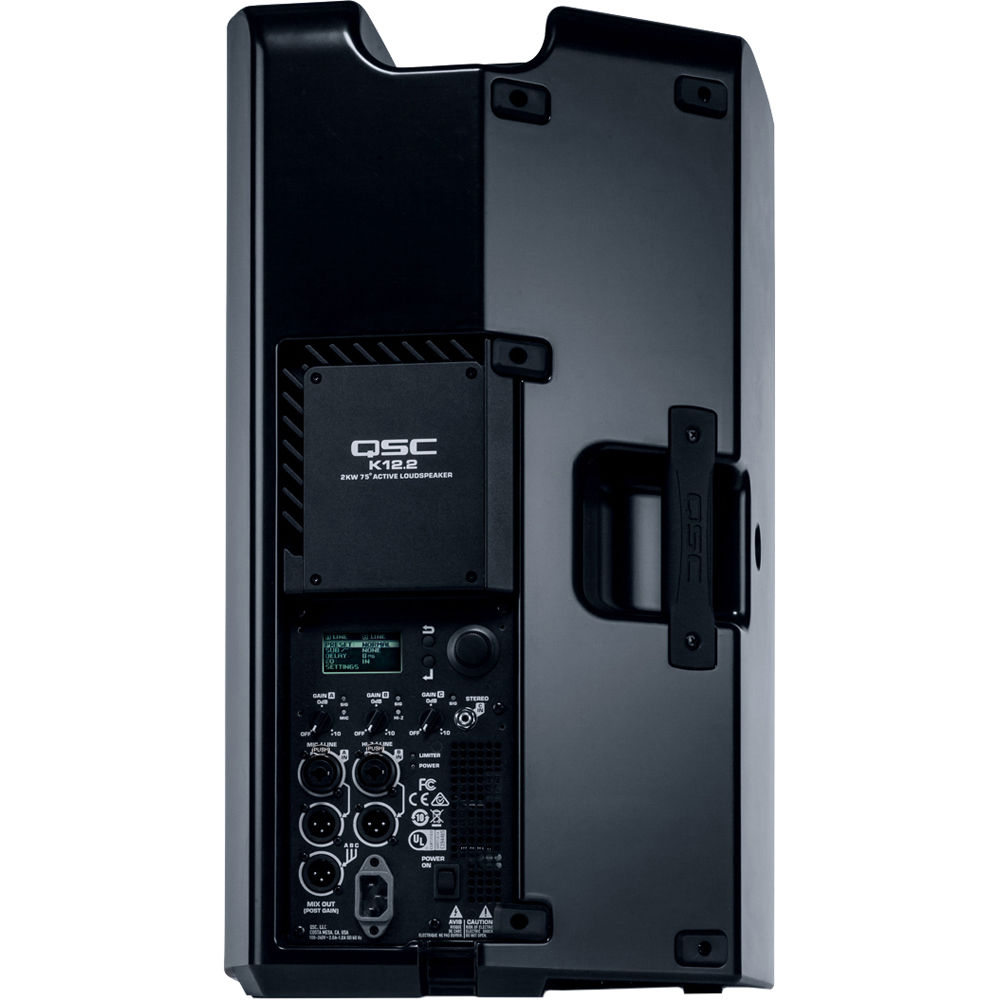

Audio I/O

1x Combo XLR-1/4" TRS Mic/Line Input
1x Combo XLR-1/4" TRS Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Aux Input
2x XLR 3-Pin Thru/Output
1x XLR 3-Pin Mix Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input (Locking)

Current Consumption

100 VAC: 2.1 A (1/8 Power)
120 VAC: 1.9 A (1/8 Power)
240 VAC: 1.1 A (1/8 Power)

Physical

Color

Black

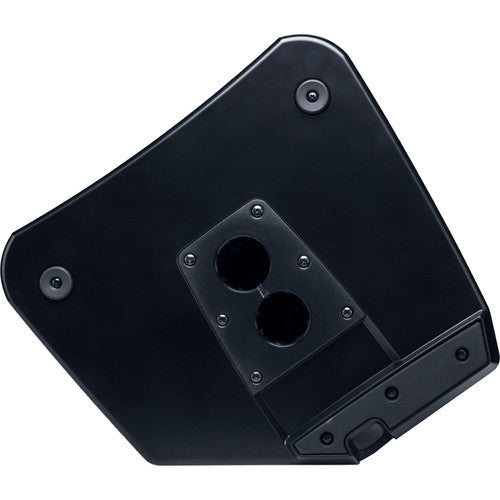

Mounting

Stand Mount
2 x 1.38" / 35 mm Dual-Angle Pole Socket (Bottom)
Suspension Points
2 x M10 Fly Point

Handles

1x Top
1x Side

Construction Material

ABS, Metal Grille

Environmental Resistance

No

Dimensions

23.7 x 14 x 13.8" / 602 x 355.6 x 350.5 mm

Weight

39 lb / 17.7 kg

Packaging Info

Package Weight

49 lb

Box Dimensions (L × W × H)

25.7 x 18.5 x 18.3"
