Key Specifications

Monitor Type & Configuration

Active 2-Way

Number of Included Monitors

Single Monitor

Enclosure

Bass-Reflex / Ported, Shielded

Drivers

Tweeter

1 × 1" / 25.4 mm Dome

Woofer

1 × 6.5" / 16.5 cm Composite Cone

Amplifiers

LF: 90 W / 145 W Peak
HF: 50 W / 100 W Peak

Performance

Frequency Range

39 Hz to 21 kHz (±3 dB)

Maximum Sound Pressure Level (SPL)

118 dB

Protections & Limiting

Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

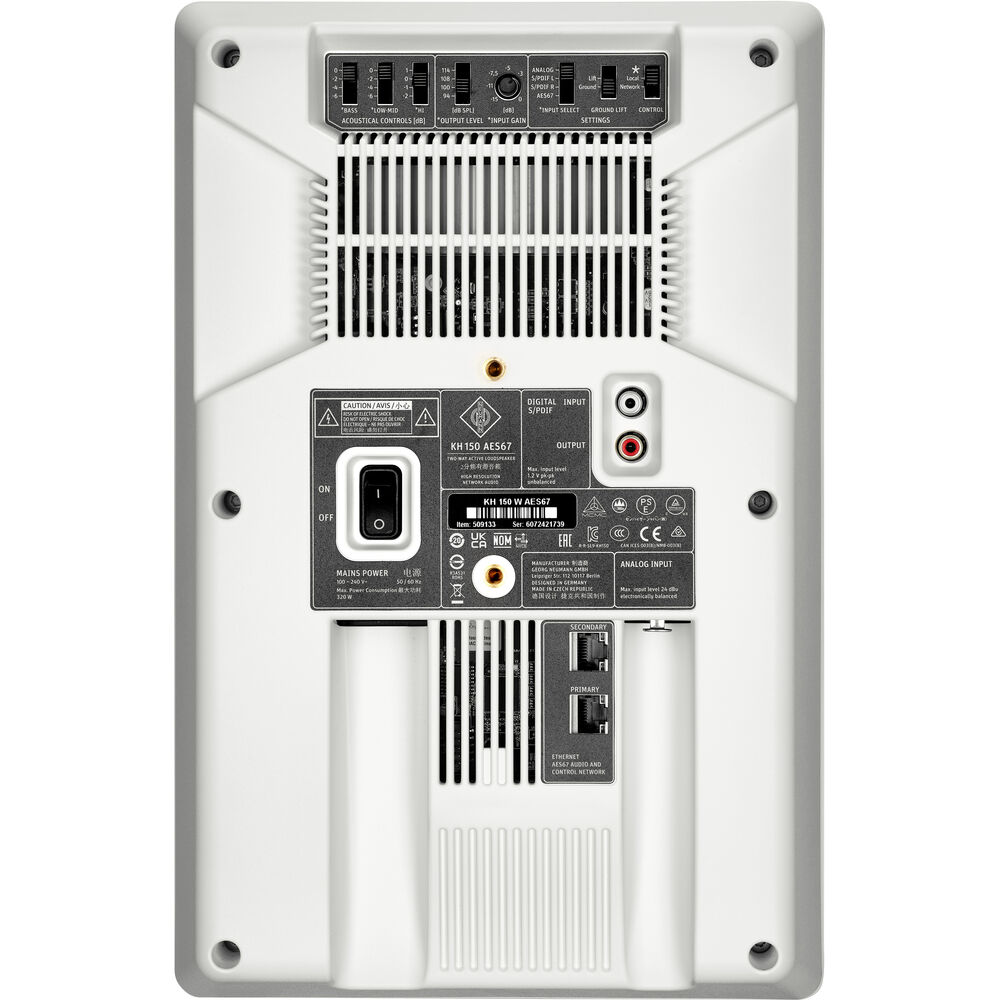

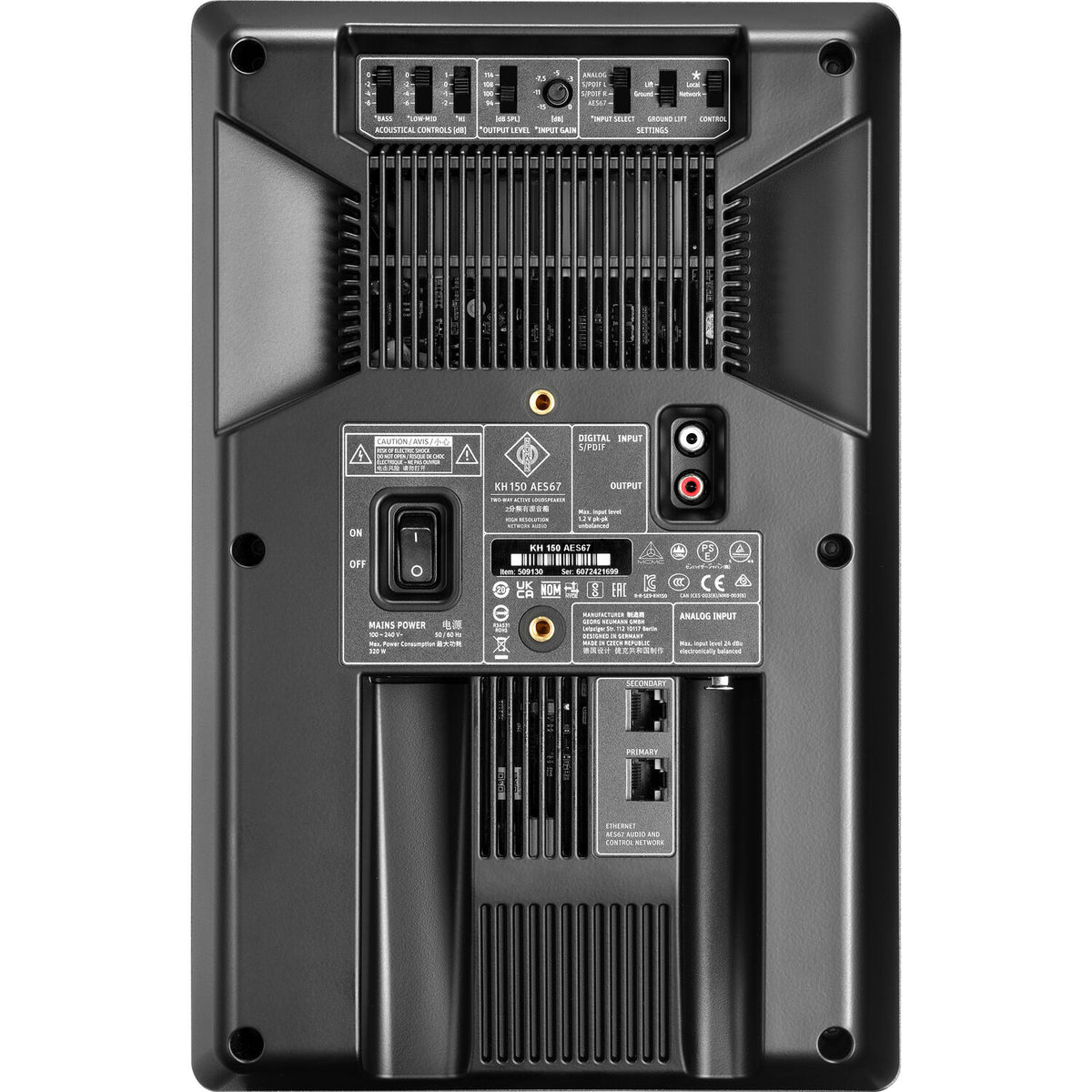

Connectivity

Audio Input

1 × Combo XLR / 1/4" TRS Balanced Input

Digital Audio I/O

1 × RCA Coaxial S/PDIF Input
1 × RCA Coaxial S/PDIF Output

Network I/O

2 × RJ45 AES67

USB

No

Wireless

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

17 W (Idle)
0.3 W (Standby)

Physical

Color

Anthracite Gray

Monitor Orientation

Vertical

Mounting Points

2 × M6 (Rear Panel)

Packaging Information

Package Weight

21.92 lb

Box Dimensions (L × W × H)

18.7 × 16.5 × 12.2"
