Key Specifications

Monitor Type & Configuration

Active 3-Way

Number of Included Monitors

Single Monitor (Right Side)

Enclosure

Sealed, Shielded

Total Power Output

290 W RMS

Drivers

Tweeter

1 × 1" / 25.4 mm Dome

Midrange

1 × 3" / 7.5 cm Cone

Woofer

1 × 8.24" / 21 cm Cone

Amplifiers

HF: 70 W RMS / 90 W Peak Class-AB
MF: 70 W RMS / 90 W Peak Class-AB
LF: 150 W RMS / 210 W Peak Class-AB

Performance

Frequency Range

34 Hz to 21 kHz (±3 dB, -3 dB)

Frequency Response

34 Hz to 21 kHz (±3 dB)

Maximum Sound Pressure Level (SPL)

116.3 dB

Total Harmonic Distortion (THD)

0.5%

Maximum Input Level

+24 dBu

Analog Input Sensitivity / Gain

0 to -15 dBu (Continuously Variable)

Protections & Limiting

Excursion Limiter, Soft Limiter, Thermal Limiting

Signal Processing

EQ

LF Shelf: -7.5 to 0 dB (2.5 dB Steps)
Low-Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Steps)
HF Shelf: -2 to +1 dB (1 dB Steps)

Filters

High-Pass: 15 Hz, 6 dB/Octave

Crossover Frequency

Low-Pass: 650 Hz, 24 dB/Octave
High-Pass: 2 kHz, 24 dB/Octave

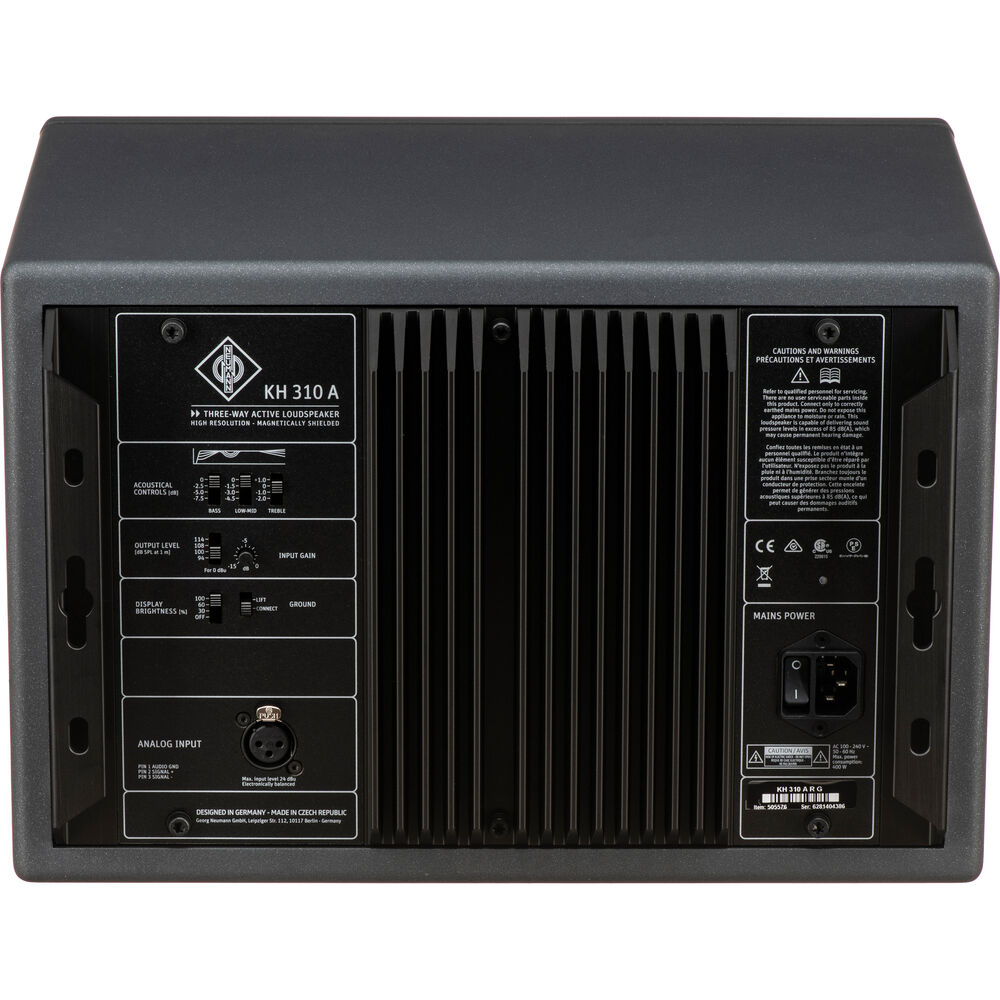

Connectivity

Audio Input

1 × XLR 3-Pin Balanced Input (13 Kilohms)

Network I/O

No

USB

No

Wireless

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

24 W (Idle)
300 W (Maximum)

Physical

Color

Black

Monitor Orientation

Horizontal

Enclosure Material

Metal Grille

Mounting Points

2 × M8 (Side Panels)

Dimensions (W × H × D)

15.1 × 10 × 11.5" / 383 × 253 × 292 mm

Weight

28.6 lb / 13.0 kg

Packaging Information

Package Weight

36.2 lb

Box Dimensions (L × W × H)

23 × 15 × 14"
