Key Specifications

Monitor Type & Configuration

Active Subwoofer

Number of Included Monitors

Single Monitor

Enclosure

Sealed, Shielded

Total Power Output

256 W

Drivers

Subwoofer Driver

1 × 10" / 25.4 cm Cone

Performance

Frequency Range

18 Hz to 300 Hz

Frequency Response

18 Hz to 800 Hz (±6 dB)

Maximum Sound Pressure Level (SPL)

105 dB

Dynamic Range

119 dBA

Maximum Input Level

+24 dBu

Analog Input Sensitivity / Gain

+2 dB to -12 dB

Protections & Limiting

Limiter, Peak Limiter, Thermal Limiting

Signal Processing

EQ

1 × LF Shelf
1 × HF Shelf

Filters

1 × Low-Pass

Crossover Frequency

80 Hz

Phase Adjustment

0° / 180° Phase Inversion

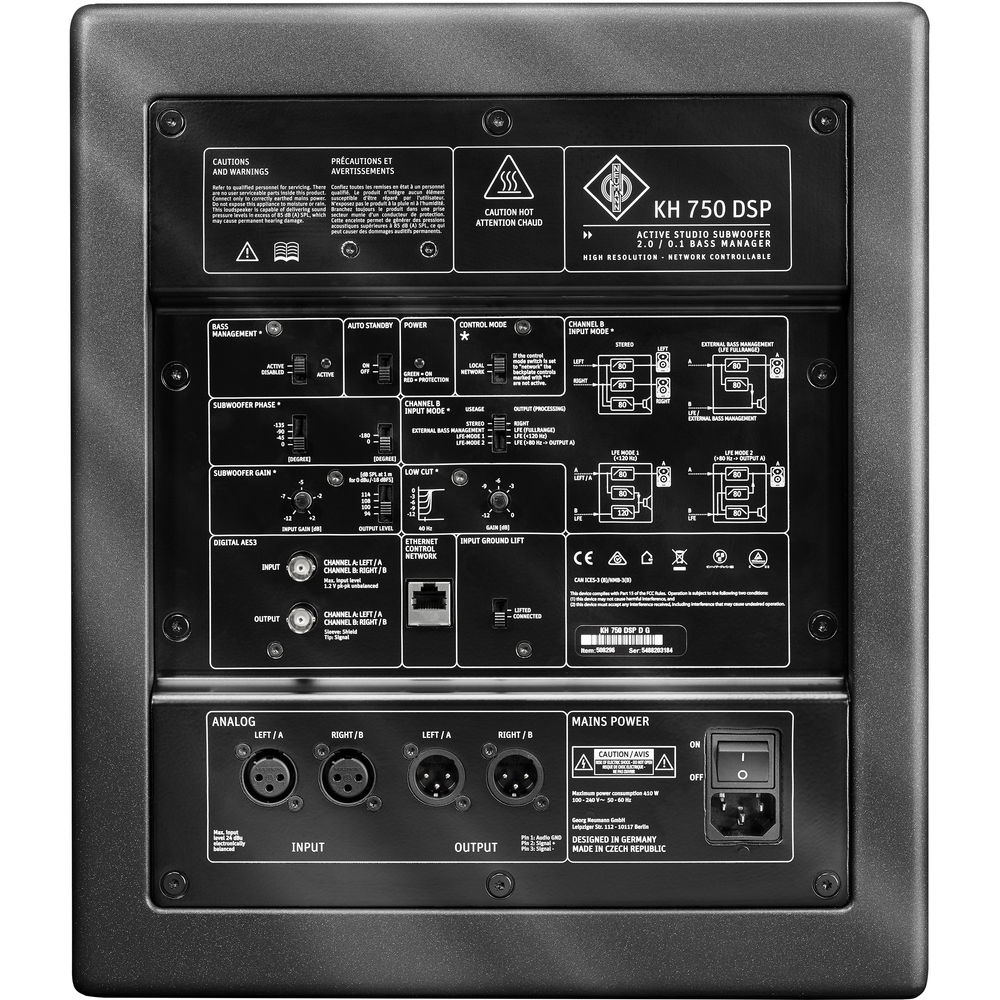

Connectivity

Audio I/O

2 × XLR 3-Pin Balanced Inputs
2 × XLR 3-Pin Balanced Outputs

Digital Audio I/O

1 × BNC Coaxial AES-3id / S/PDIF Input
1 × BNC Coaxial AES-3id / S/PDIF Output

Network I/O

1 × RJ45 Ethernet

USB

No

Wireless

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

410 W (Maximum)

Physical

Color

Black

Monitor Orientation

Vertical

Enclosure Material

Aluminum, Wood

Dimensions (W × H × D)

13 × 15.1 × 15.1" / 330 × 383 × 383 mm

Weight

43.0 lb / 19.5 kg

Packaging Information

Package Weight

47.82 lb

Box Dimensions (L × W × H)

20.1 × 19.3 × 15.5"
