Key Specifications

Monitor Type & Configuration

Active 2-Way

Number of Included Monitors

Single Monitor

Enclosure

Bass-Reflex / Ported, Shielded

Total Power Output

190 W

Drivers

Tweeter

1 × 1" / 25.4 mm Dome

Woofer

1 × 4" / 10.16 cm Composite Cone

Amplifiers

LF: 90 W / 120 W Peak
HF: 50 W / 70 W Peak

Performance

Frequency Range

53 Hz – 21 kHz ±6 dB
57 Hz – 21 kHz ±3 dB

Maximum Sound Pressure Level (SPL)

108.8 dB

Dynamic Range

114 dBA

Maximum Input Level

+24 dBu (Balanced)

Analog Input Sensitivity / Gain

0 dB to -15 dB (Incrementally Variable)

Protections & Limiting

Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

Signal Processing

EQ

1 × Low-Mid Shelf

Crossover Frequency

Low-Pass: 1.8 kHz, 48 dB/Octave Slope

Connectivity

Audio Input

1 × Combo XLR / 1/4" TRS Balanced Line Input

Digital Audio I/O

No

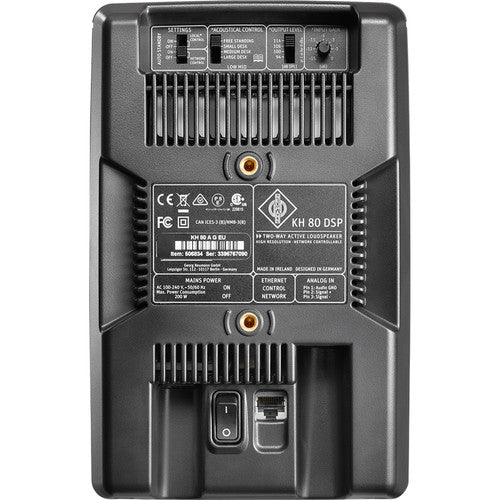

Network I/O

1 × RJ45 Ethernet

USB

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50/60 Hz

Power Consumption

180 W (Maximum)

Physical

Color

White

Monitor Orientation

Vertical

Mounting Points

2 × M6 (Rear Panel)

Dimensions (W × H × D)

6.1 × 9.2 × 7.6" / 154 × 233 × 194 mm

Weight

9.0 lb / 4.1 kg
