Key Specifications

Product Model

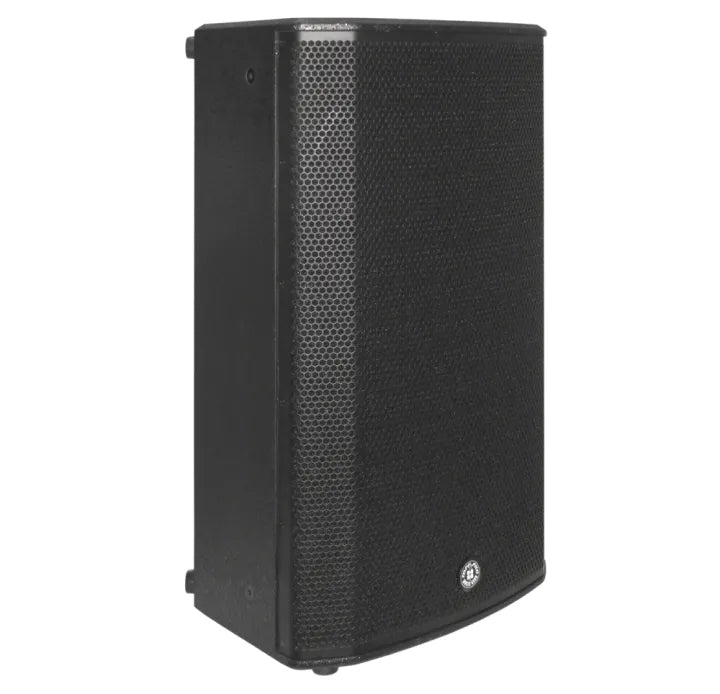

KS HD15A

System Type

2-Way Active Loudspeaker with DSP & OLED

Power Architecture

• Program Power: 2000W
• Peak Power: 4000W
• Max SPL: 130dB Peak

Acoustic Performance

LF Transducer

15" (381mm) Woofer with 3" Voice Coil

HF Transducer

1" Exit Ferrite Compression Driver (1.75" Voice Coil)

Frequency Response

45Hz - 20KHz (-6dB)

Crossover

1.5KHz | 24dB Slope | Linkwitz-Riley

Connectivity & Interface

Inputs

• 2 x Locking XLR/1/4" Combo (Mic/Line & Hi-Z)
• 1 x 3.5mm TRS Stereo Input

Output

1 x XLR/M (Mix Output)

User Interface

Monochrome OLED Display (1.65") with Rotary Encoder

Physical Construction

Enclosure

Plywood cabinet with resistant black paint

Rigging / Mounting

• 10 x M10 Threaded Inserts
• Integrated Pull-Back Point
• Standard Metal Pole-mount

Dimensions / Weight

726 x 421 x 410 mm | 24.65 kg (54.34 lbs)
