Key Specifications

Product / Accessory Type

Bulk Audio Cable

Recommended Applications

Microphones, Portable Audio Applications, Audio Patch Cords, PA Systems

Electrical & Transmission Specifications

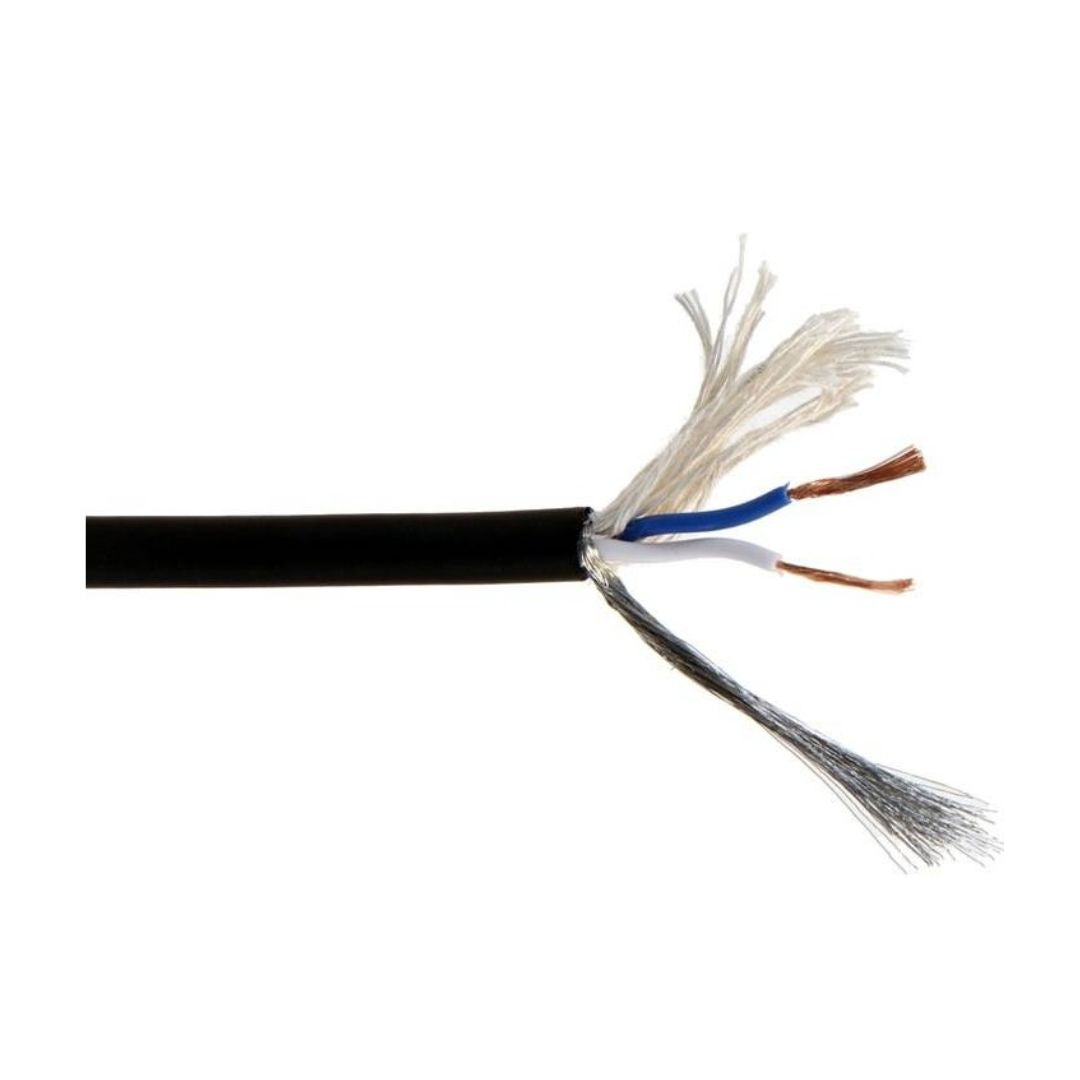

Number of Conductors

2 Conductors

Nominal Impedance

88 Ohms

Nominal Capacitance

Between Conductors: 70 pF/m (22 pF/ft);
Between Conductors & Shield: 106 pF/m (33 pF/ft)

Conductor D.C. Resistance (D.C.R.)

< 6.5 Ohms / 100 m (< 19.8 Ohms / 1,000 ft)

Shield D.C. Resistance (D.C.R.)

< 3.1 Ohms / 100 m (< 9.4 Ohms / 1,000 ft)

Group Delay Time

6 ns/m (1.83 ns/ft)

Insulation Properties

Type: Irradiation Cross-linked Polyethylene (IPE);
Dielectric Strength: 500 VAC / min;
Insulation Resistance: 1,000 MOhms per 0.91 m (3 ft)

Mechanical & Environmental Specifications

Outer Cable Diameter

6.00 mm (0.236") Nominal

Jacket & Insulator Thickness

Jacket: 1.00 mm (0.039");
Insulator: 19.70 mm (0.770")

Brittle Point Temperature

-49 °C (-56 °F)

Dimensions, Weight & Packaging Specifications

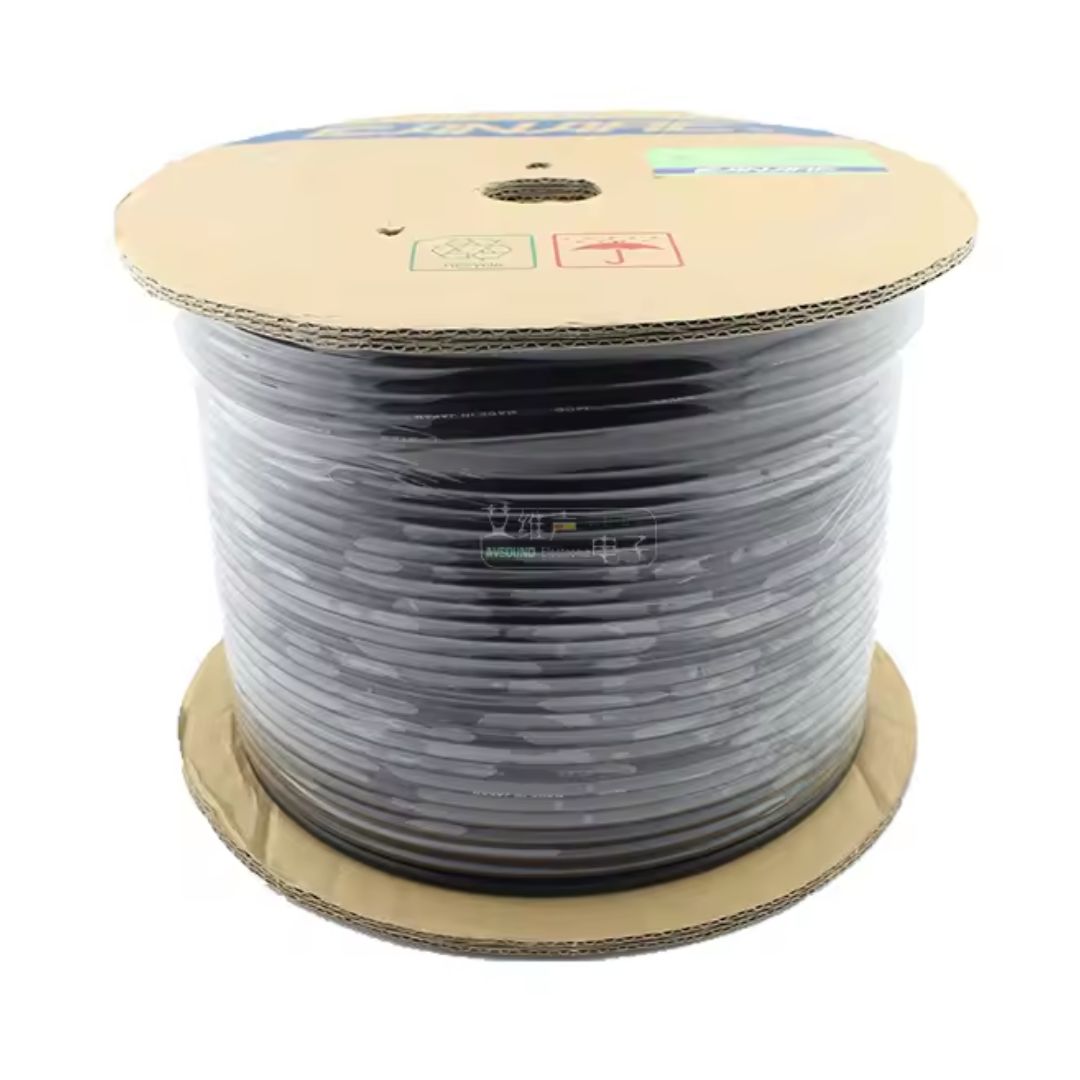

Cable Spool Length

200 m (656 ft)

Product Net Weight

9.07 kg (20.00 lbs)

Package Shipping Weight

9.75 kg (21.50 lbs)

Packaging Box Dimensions (L×W×H)

386 mm x 302 mm x 226 mm (15.20" x 11.90" x 8.90")
