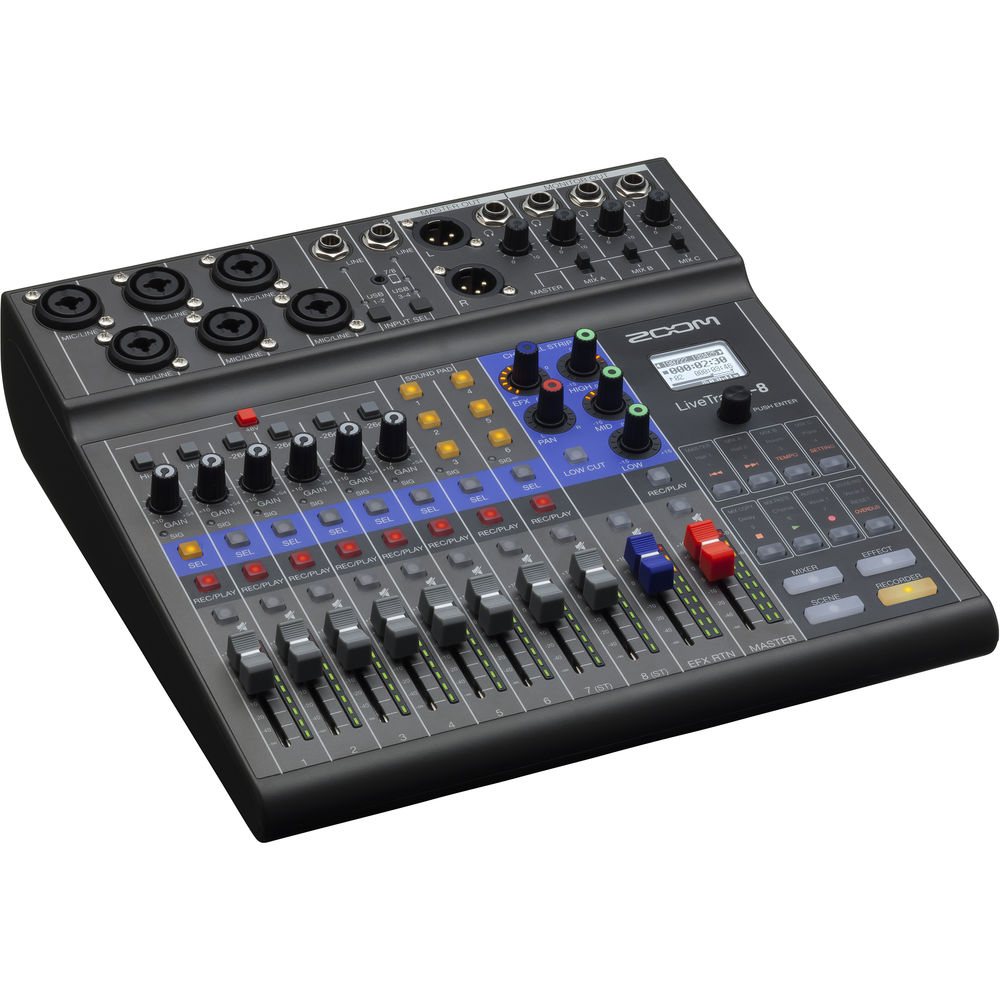

Key Specifications

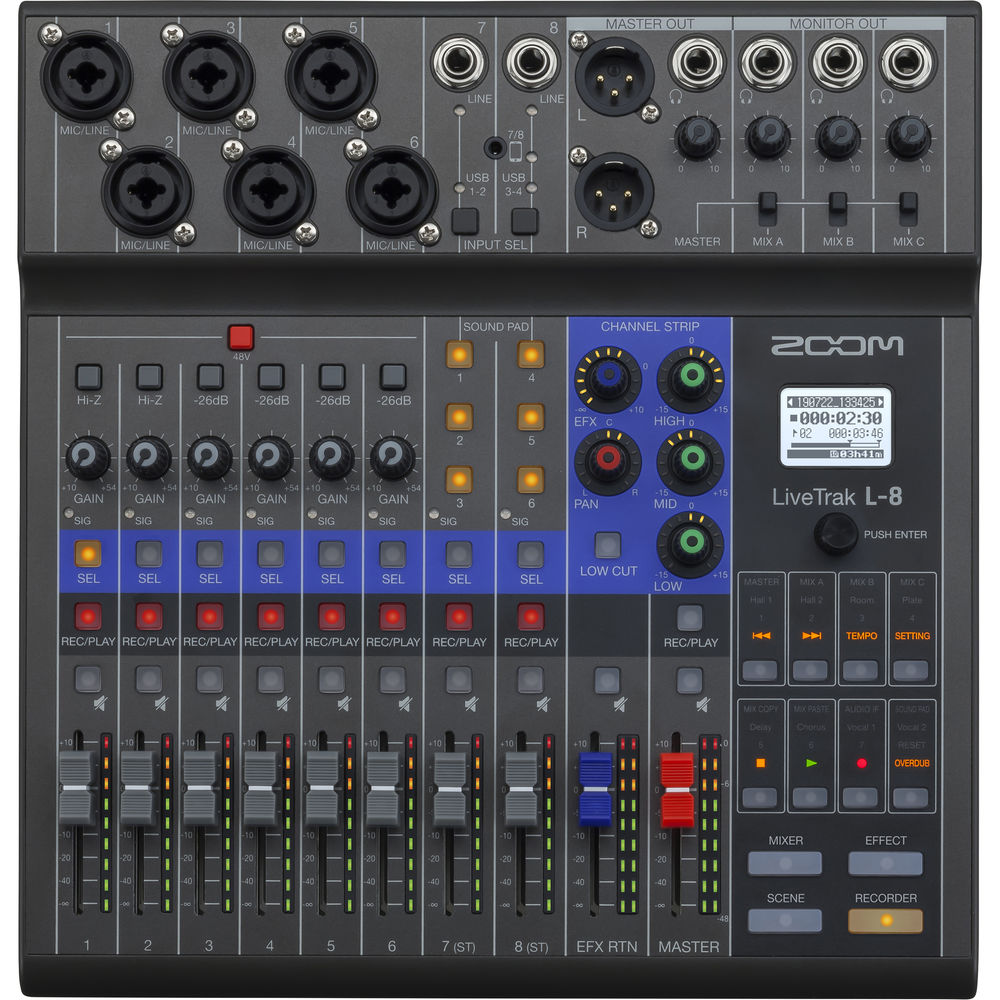

Inputs and Outputs / Number of Channels

Inputs

MIC/LINE : 6 | LINE : 2

Output

MASTER OUT : 1 | MASTER OUT (PHONES) : 1 | MONITOR OUT (PHONES) : 3

Inputs

MIC/LINE Type

XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

MIC/LINE Input Gain

+10 – +54 dB/–3 – +41 dB (when Hi-Z ON)

MIC/LINE Input Impedance

XLR: 3 kΩ | TRS: 3 kΩ/1 MΩ (when Hi-Z ON)

MIC/LINE Maximum Input Level

–2 dBu when –26dB switch OFF (at 0 dBFS) | +24 dBu when –26dB switch ON (at 0 dBFS)

Phantom Power

+48 V

LINE Type

TS phone jack

LINE Input Impedance

10 kΩ

LINE Maximum Input Level

+3 dBu

Smartphone Connection Jack Type

TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)

Smartphone Connection Jack Input Impedance

10 kΩ

Smartphone Connection Jack Maximum Input Level

+3 dBu

Output

MASTER OUT Type

XLR jacks (balanced)

MASTER OUT Maximum Output Level

+14.5 dBu

MASTER OUT Output Impedance

100 Ω

MASTER OUT (PHONES) Type

Standard stereo phone jack

MASTER OUT (PHONES) Maximum Output Level

10 mW + 10 mW (60Ω load)

MASTER OUT (PHONES) Output Impedance

10 Ω

MONITOR OUT (PHONES) Type

Standard stereo phone jack

MONITOR OUT (PHONES) Maximum Output Level

10 mW + 10 mW (60Ω load)

MONITOR OUT (PHONES) Output Impedance

10 Ω

Buses

MASTER

1

MONITOR

3

SEND EFX

1

Channel Strip

LOW CUT

75 Hz, 12 dB/OCT

EQ

HIGH: 10 kHz, ±15 dB, shelving | MID: 2.5 kHz, ±15 dB, peaking | LOW: 100 Hz, ±15 dB, shelving

Level Meter

9 segments

Send Effects

8 types

Recorder

Maximum Simultaneous Recording Tracks

12 at 44.1/48/96 kHz

Maximum Simultaneous Playback Tracks

10

Recording Format

WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Recording Media

4GB – 32GB SDHC-compliant cards (Class 10 or higher) | 64GB – 1TB SDXC-compliant cards (Class 10 or higher)

Audio Interface

44.1/48 kHz

Recording: 12 channels | Playback: 4 channels

Bit Depth

24-bit

Interface

USB 2.0

System Requirements for Audio Interface Mode

Windows

OS： Windows® 8.1 / 10 / 11 (32bit/64bit) | CPU: Intel® Core i3 or faster* | USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac

OS： macOS 10.12 ~ 26 | CPU: Intel® Core i3 or faster | USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad

OS： iOS 10 ~ 26, iPadOS 15 ~ 26
* Apple Lightning-to-USB Camera Adapter required.

Card Reader

Class

Mass storage USB 2.0 High Speed

Additional Specs

Sampling Frequency

44.1/48/96 kHz

Frequency Response

20 Hz – 20 kHz: –1 dB at 44.1 kHz | 20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)

Equivalent Input Noise

–121 dBu or less (IHF-A) at +54dB/150Ω input

Display

LCD with backlight (96×64 resolution)

Power

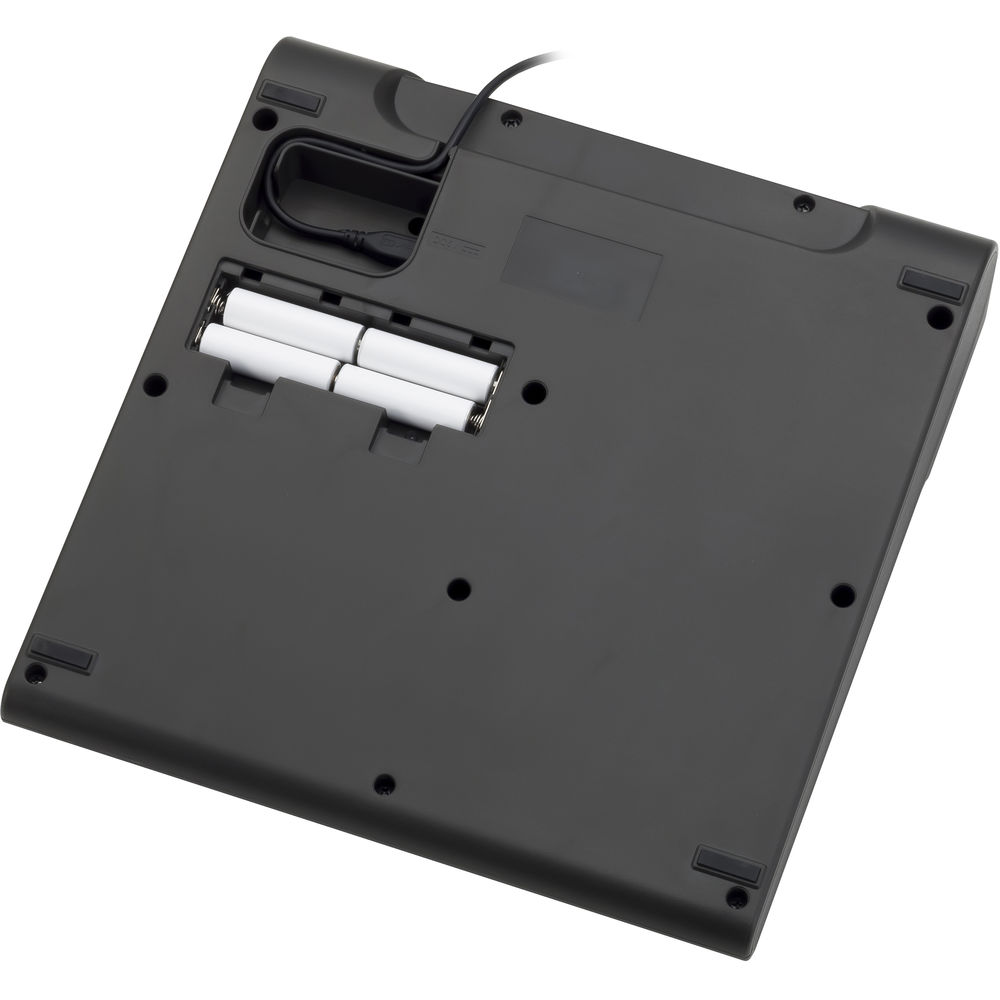

4 AA batteries (alkaline, lithium, or rechargeable NiMH) | AC adapter (ZOOM AD-17): DC 5V/1A | Supports USB bus power

Estimated Continuous Recording Time Using Batteries

Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω):
• Alkaline batteries: about 1.5 hours
• NiMH batteries (1900 mAh): about 3 hours
• Lithium batteries: about 5 hours
• The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

Power Consumption

5 W

External Dimensions

268 mm (W) × 282 mm (D) × 74 mm (H)

Weight (unit only)

1.56 kg
