Key Specifications

Speaker Configuration

16x Full-Range Speaker Column with Subwoofer

Number of Input Channels

3 (2 x Mono, 1 x Stereo)

Amplifier Power Rating

Speakers: 1x 250 W
Subwoofer: 1x 1000 W

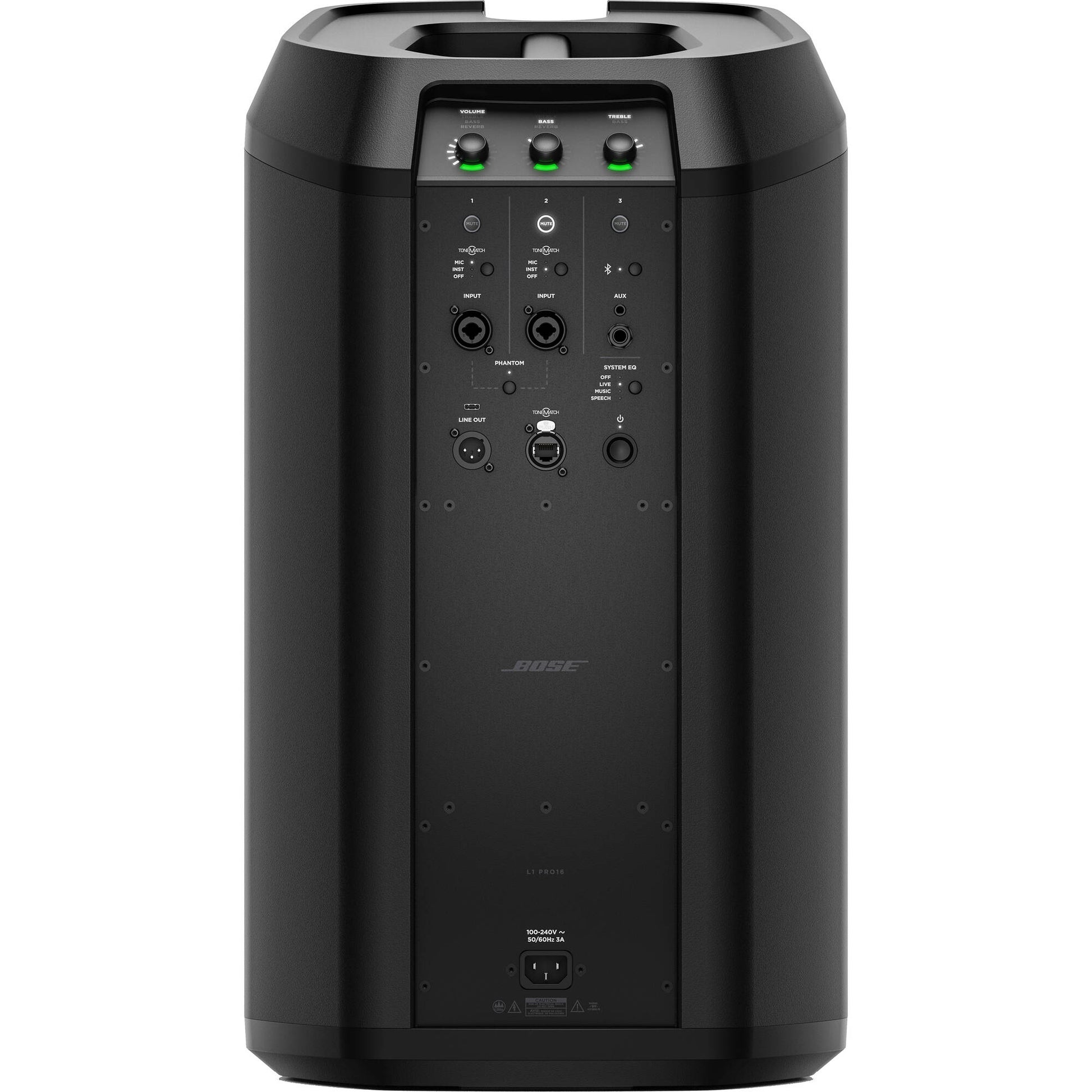

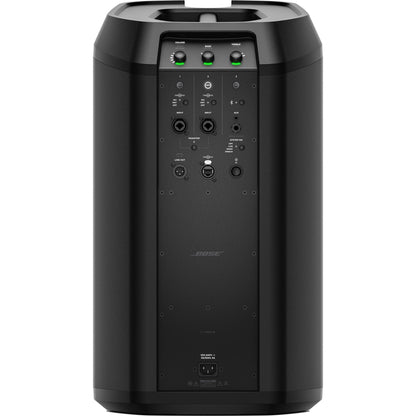

Audio I/O

Connections

2x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1x 1/4" TRS Female Unbalanced Line Input
1x XLR 3-Pin Male Balanced Line Output

Amplifier

Amplifier Class

Class-D

Speakers

Full-Range Driver

16x 2" / 50.8 mm Cone

Subwoofer Driver

1x 18 x 10" / 457.2 x 254 mm Woofer

Magnet

Neodymium

Signal Processing

Input Pad

No

EQ

HF Shelf, LF Shelf

Semi-Parametric EQ

No

Effects

Reverb

Filters

No

Performance

Frequency Response

42 Hz to 20 kHz

Maximum SPL

112 dB (Continuous)
118 dB (Peak)

Coverage Angle

180° H x 30° V

Protections

No

Connectivity

Audio I/O

2x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1x 1/4" TRS Female Unbalanced Line Input
1x XLR 3-Pin Male Balanced Line Output

Phantom Power

+48 V

Network I/O

No

Wireless Connectivity

Bluetooth

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Transport Options

1x Handle (Top)

Environmental Resistance

No

Dimensions (H x W x D)

79.2 x 18 x 14" / 201.2 x 45.7 x 35.6 cm

Weight

54.8 lb / 24.9 kg

Packaging Info

Package Weight

62 lb

Box Dimensions (LxWxH)

44 x 25.5 x 17.7"
