Key Specifications

Speaker Configuration

32x Full-Range Speaker Column

Number of Input Channels

3 (2 x Mono, 1 x Stereo)

Amplifier Power Rating

Speakers: 1x 480 W

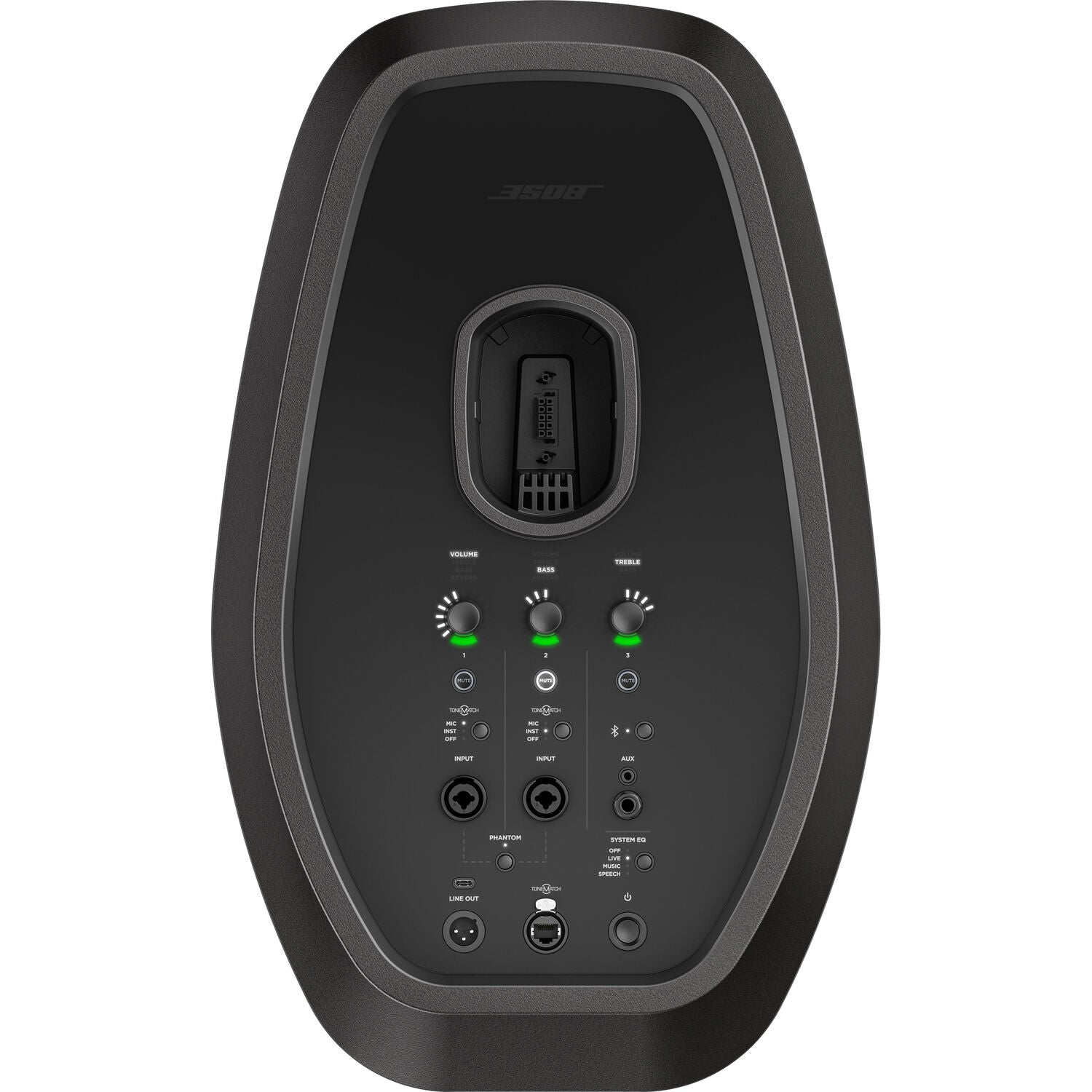

Audio I/O

Connections

2x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1x 1/4" TRS Female Unbalanced Line Input
1x 1/4" TRS Female Balanced Line Output
1x XLR 3-Pin Male Balanced Line Output

USB I/O

No

Bluetooth

Yes

Amplifier

Amplifier Class

Class-D

Speakers

Full-Range Driver

32x 2" / 50.8 mm Cone

Magnet

Neodymium

Signal Processing

Input Pad

No

EQ

HF Shelf, LF Shelf

Semi-Parametric EQ

No

Effects

Reverb

Filters

No

Performance

Frequency Response

40 Hz to 20 kHz

Coverage Angle

180° H x 0° V

Protections

No

Connectivity

Audio I/O

2x Combo XLR-1/4" 3-Pin Female Balanced Mic/Line/Hi-Z Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input
1x 1/4" TRS Female Unbalanced Line Input
1x 1/4" TRS Female Balanced Line Output
1x XLR 3-Pin Male Balanced Line Output

Phantom Power

+48 V

USB I/O

No

Mobile App Compatible

Yes: Android & iOS
App Name: Bose Music App
Functionality: Adjust Settings, Remote Control, Setup

Network I/O

No

Wireless Connectivity

Bluetooth

Wireless

Bluetooth

Yes

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Environmental Resistance

No

Dimensions (H x W x D)

84.1 x 21.7 x 13.6" / 213.6 x 55.1 x 34.5 cm

Weight

28.6 lb / 13 kg

Packaging Info

Package Weight

41 lb

Box Dimensions (LxWxH)

47 x 17.5 x 9"
