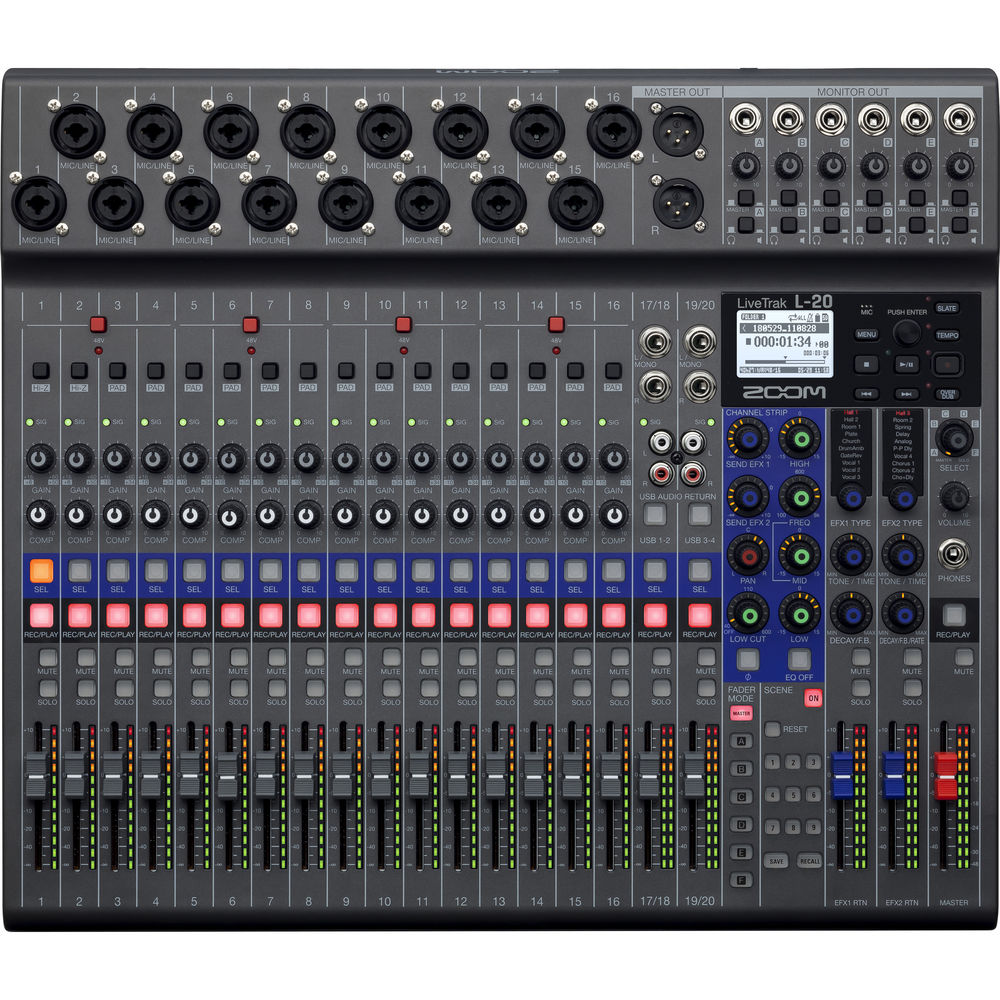

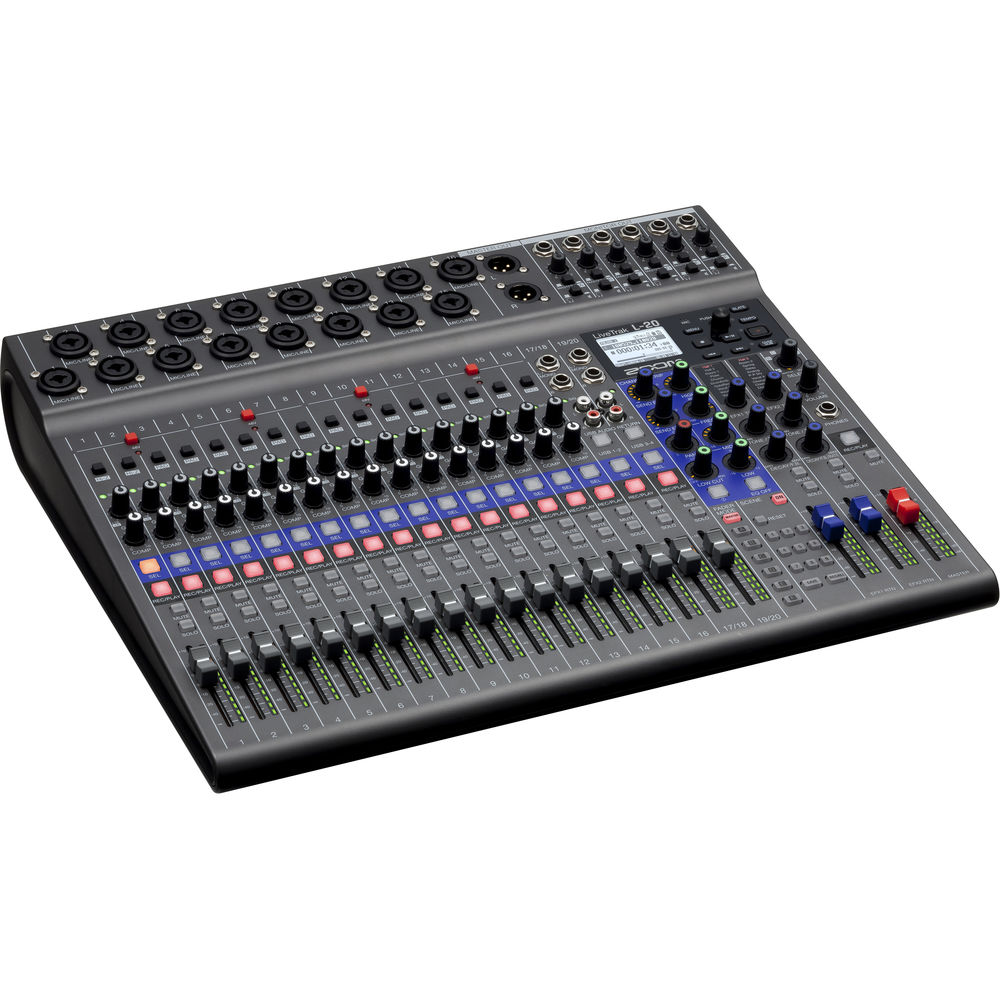

Key Specifications

Number of Input and Output Channels

Inputs

Mono (MIC/LINE): 16 | Stereo (LINE): 2

Outputs

MASTER OUT: 1 | MONITOR OUT: 6 | PHONES : 1

Inputs

Mono (MIC/LINE) Type

XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Mono (MIC/LINE) Input Gain

PAD OFF: +16 – +60dB | PAD ON: − 10 – +34 dB | Hi-Z ON: +6 – +50 dB

Mono (MIC/LINE) Input Impedance

XLR: 3 k Ω | TRS: 10 k Ω /1 M Ω (when Hi-Z ON)

Mono (MIC/LINE) Maximum Input Level

PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS)

Phantom Power

+48 V

Stereo (LINE) Type

TS phone/RCA pin (unbalanced) jacks

Stereo (LINE) Maximum Input Level

+10 dBu

Outputs

MASTER OUT Type

XLR jacks (balanced)

MASTER OUT Maximum Output Level

+14.5 dBu

MASTER OUT Output Impedance

100 Ω

MONITOR OUT A–F (Balanced) Type

TRS phone jacks (balanced)

MONITOR OUT A–F (Balanced) Maximum Output Level

+14.5 dBu

MONITOR OUT A–F (Balanced) Output Impedance

100 Ω

MONITOR OUT A–F (Unbalanced) Type

Standard stereo phone jacks

MONITOR OUT A–F (Unbalanced) Maximum Output Level

42 mW + 42 mW at 60 Ω

MONITOR OUT A–F (Unbalanced) Output Impedance

100 Ω

PHONES Type

Standard stereo phone jacks

PHONES Maximum Output Level

42 mW + 42 mW at 60 Ω

PHONES Output Impedance

100 Ω

Buses

MASTER

1

MONITOR

6

SEND EFX

2

Channel Strip

COMP

Yes

LOW CUT

40–600 Hz, 12dB/OCT

EQ

HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving

Level Meters

Level Segments

12

Send Effects

Effects

20 types

EFX 1

Hall 1, Hall 2, Room 1, Plate, Church , DrumAmb , GateRev, Vocal 1 , Vocal 2 , Vocal 3

EFX 2

Hall 3, Room 2, Spring Delay, Analog P-P Dly , Vocal 4, Chorus 1, Chorus 2

Recorder

Maximum Simultaneous Recording Tracks

22 at 44.1/48/96 kHz

Maximum Simultaneous Playback Tracks

20

Recording Format

WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Recording Media

4GB – 32GB SDHC cards (Class 10 or higher) , 64GB – 1TB SDXC cards (Class 10 or higher)

Audio Interface

44.1/48 kHz

Recording: 22 channels | Playback: 4 channels

Bit Depth

24-bit

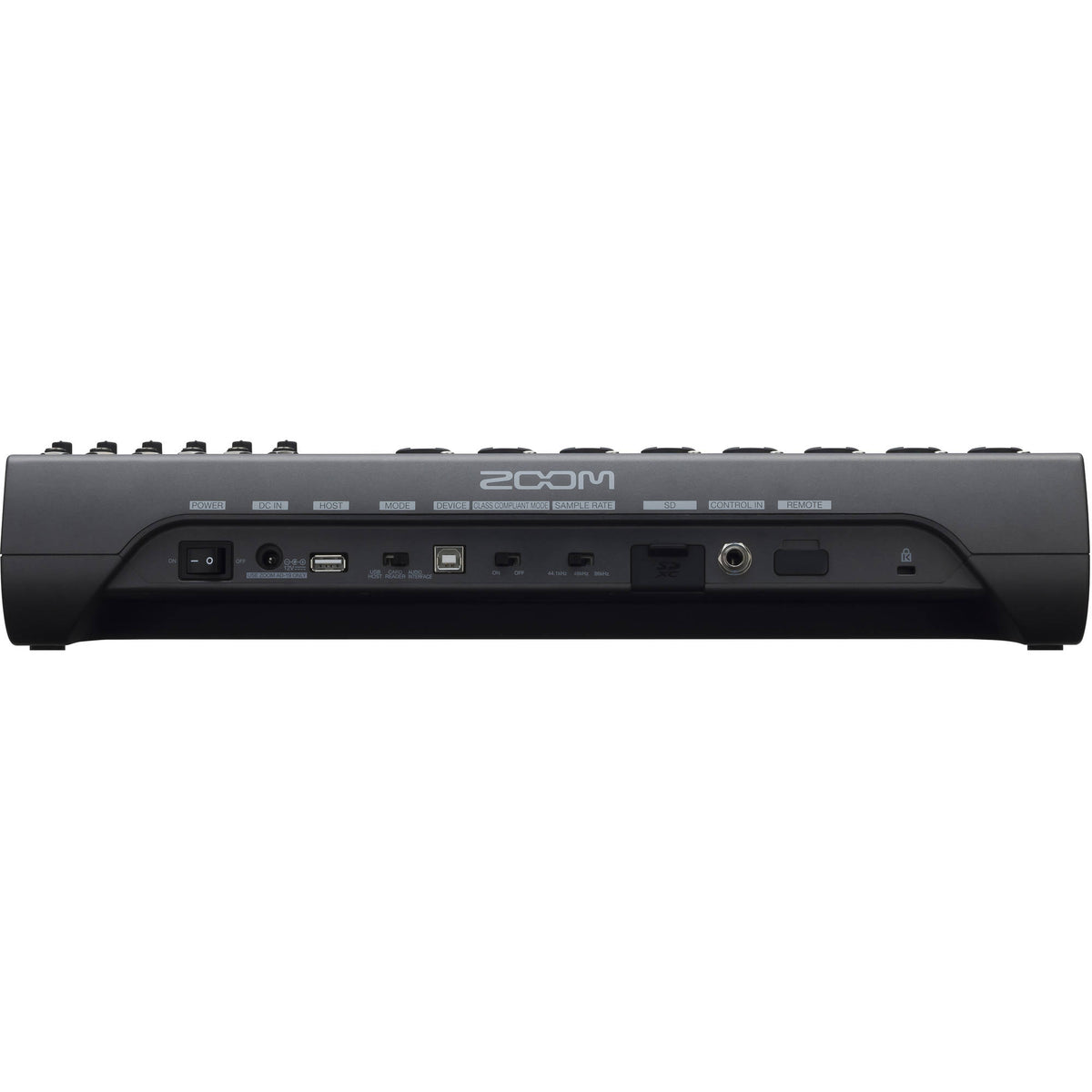

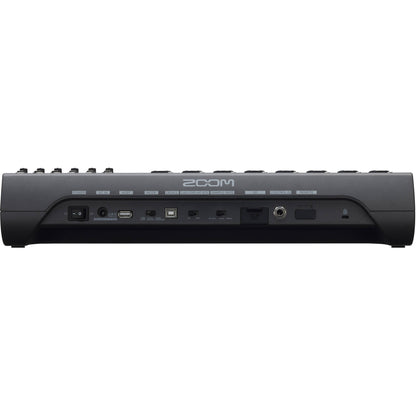

Interface

USB 2.0

Card Reader

CLASS

Mass storage : USB 2.0 High Speed

System Requirements for Audio Interface Mode

Windows

OS: Windows® 8.1/10/11 (32bit/64bit) | CPU: Intel® Core i3 or faster* | USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

MacOS

macOS® 10.14 ~ 26 | CPU: Intel® Core i3 or faster | USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad

OS： iOS 9 ~ 26, iPadOS 17 ~ 26
* Apple Lightning-to-USB Camera Adapter required.

USB Host

CLASS

USB 2.0 High Speed

Additional Specs

Sampling Frequency

44.1/48/96 kHz

Frequency Characteristics

44.1 kHz: −1.0 dB, 20 Hz – 20 kHz | 96 kHz: −3.0 dB, 20 Hz – 40 kHz

Equivalent Input Noise

Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input

Display

LCD with backlight (128×64 resolution)

Power

AD-19 AC adapter (DC12V 2A)

Power Consumption

24 W maximum

External Dimensions

445 mm (W) × 388.4 mm (D) × 82.6 mm (H)

Weight (main unit only)

3.71 kg
