Key Specifications

Model

PQ-12D

Type

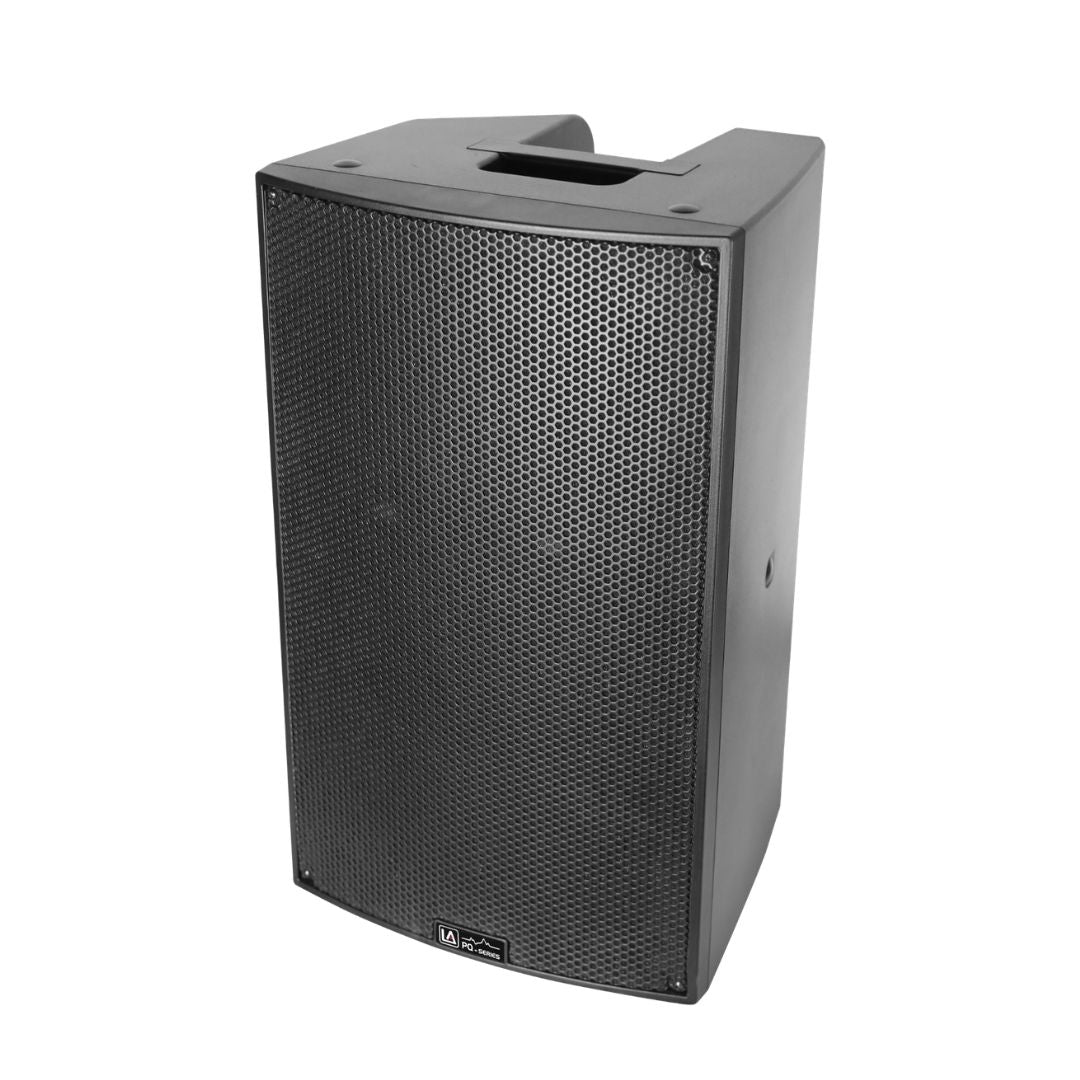

12" 2-Way Full Range Speaker Box

Power Output (RMS)

400 W

Impedance

4 Ohms

Performance

Frequency Response (-6 dB)

50 Hz – 20 kHz

Maximum SPL (1 m, Free Space)

124 dB

Drivers

HF Transducer

1.34" Titanium Diaphragm Driver

LF Transducer

12" Woofer with 2.5" Voice Coil

Amplifier & DSP

Amplifier

Class-D 2-Way Amplifier

DSP Module

DSP-100, 96 kHz, 24-bit DSP Processor

DSP Preset Modes

Music, Live, Speech, Flat

Protection

Protection Features

Short Circuit, Overheating, Over-Current, Soft Boot, LCC, PFC, Separate Power Supply Protection

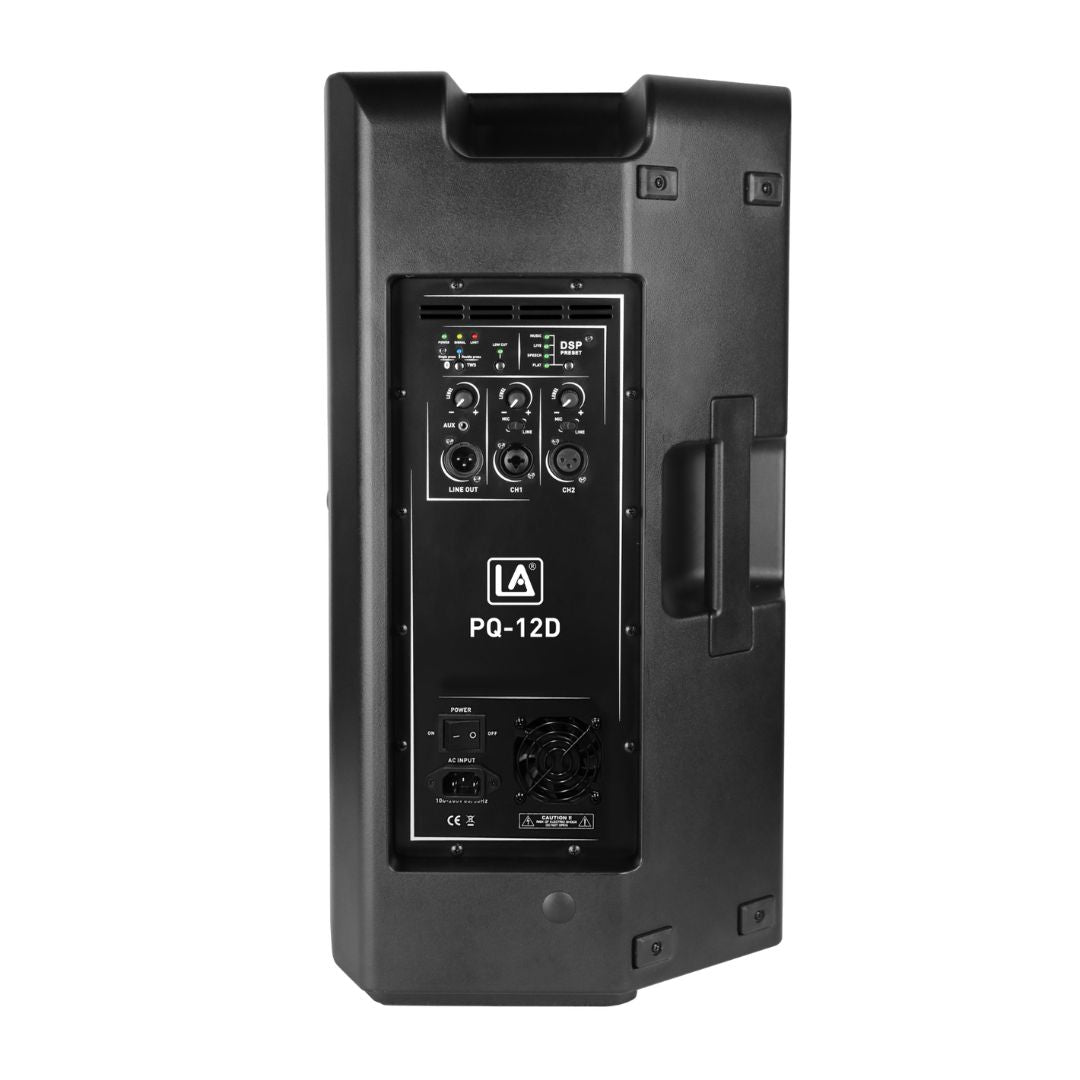

Controls & Indicators

Controls

Power On/Off Switch, DSP Mode Switch, Line Level Control, Mic/Line Switch

Indicators

Signal, Limit, DSP Mode Indicators

Connectivity

Audio Inputs / Outputs

1× Combo XLR/Jack Input
1× XLR Input
1× Aux Line Input
1× XLR Output

Optional Function

Bluetooth 5.2 with TWS

Power

Power Supply

100~260 VAC, 50/60 Hz

Physical

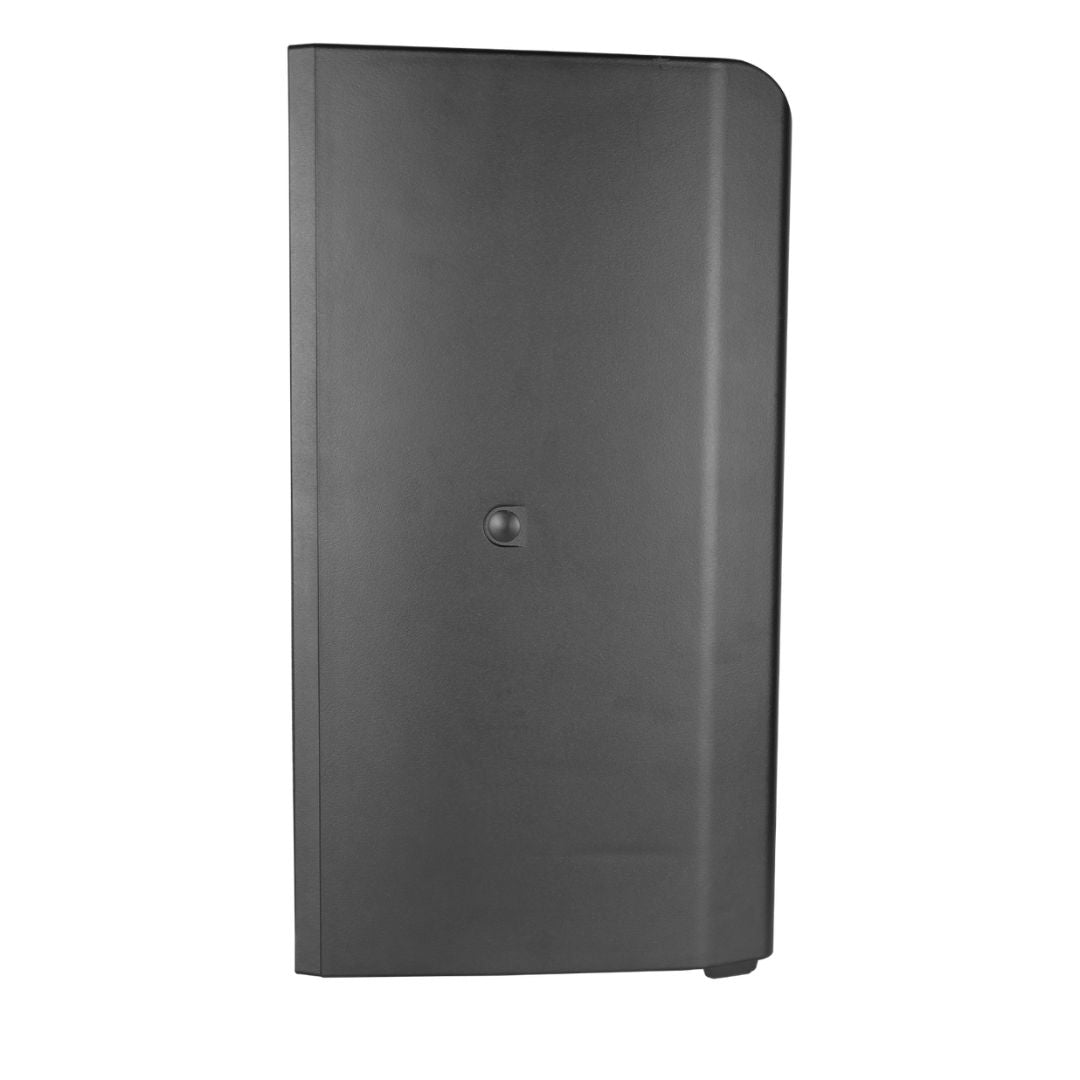

Enclosure

H-PP with Painted Finish, 35 mm Stand Pole Socket, Top and Side Handles

Grille

Metal Grille with Acoustic Fabric
