Key  Specifications

Model No.

PQ-15D

Type

15" 2-Way Full-Range Speaker Box

Frequency Response (-6 dB)

45 Hz – 20 kHz

Maximum SPL (1 m, Free Space)

127 dB

Power Output (RMS)

560 W

Impedance

4 Ohms

Drivers

HF Transducer

1.75" Titanium Diaphragm Driver

LF Transducer

15" Woofer, 3" Voice Coil

Amplifier & DSP

Amplifier

Class-D 2-Way Amplifier

DSP Module

DSP-100, 96 kHz, 24-Bit DSP Processor

DSP Preset Modes

Music, Live, Speech, Flat

Protection

Protection Features

Short Circuit Protection, Overheating Protection, Over-Current Protection, Soft Boot, LCC, PFC

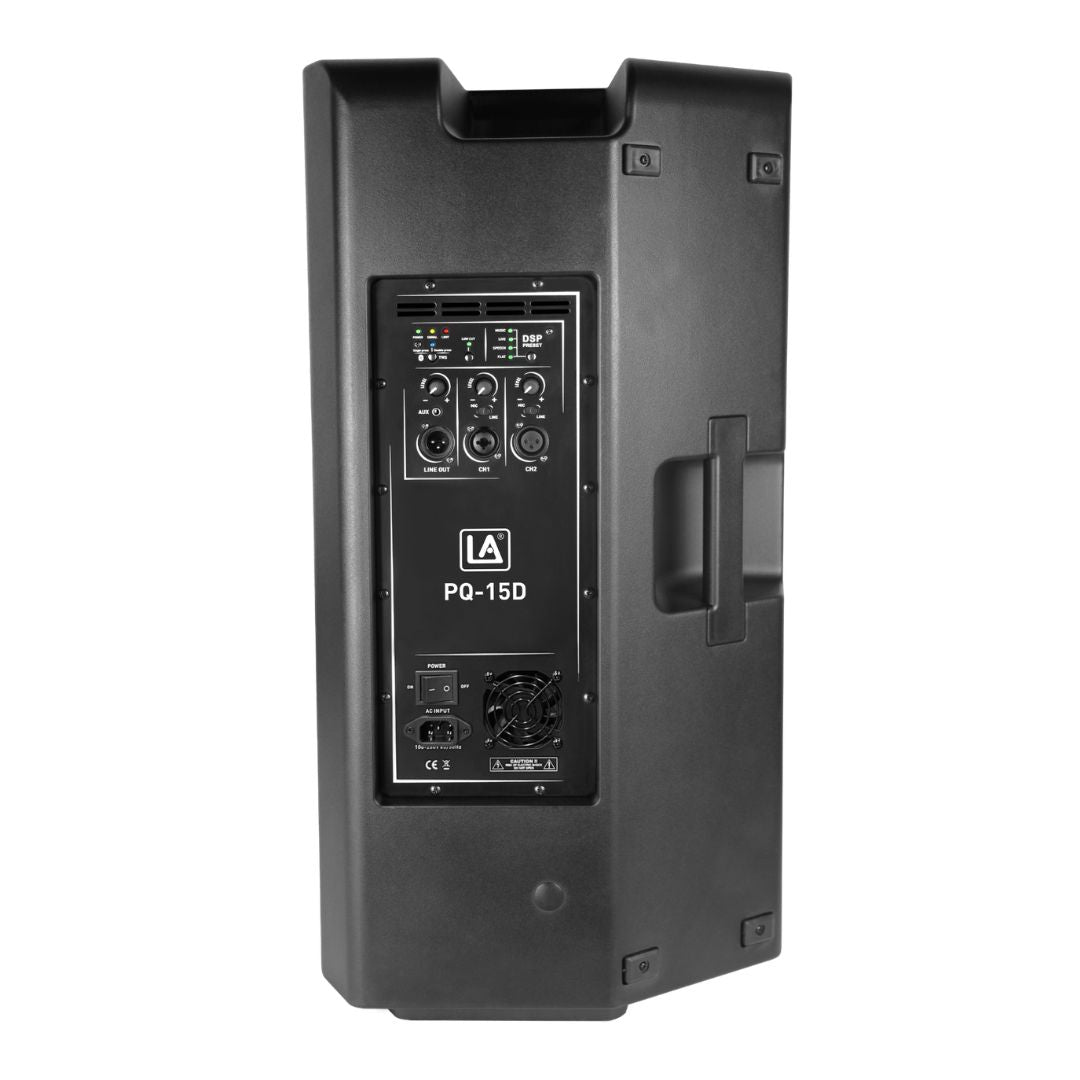

Controls & Indicators

Controls

Power On/Off Switch, DSP Mode Switch, Line Level Control, Mic/Line Switch

Indicators

Signal, Limit, DSP Mode Indicators

Connectivity

Audio Input / Output

1× Combo XLR/Jack Input
1× XLR Input
1× AUX Line Input
1× XLR Output

Wireless

Bluetooth 5.2 with TWS (Optional Function)

Power

Power Supply

100~260 VAC, 50/60 Hz

Physical

Enclosure

H-PP with Painting, 35 mm Pole Mount, Top and Side Handles

Grille

Metal Grille with Acoustic Fabric
