Key Specifications

Product / Accessory Type

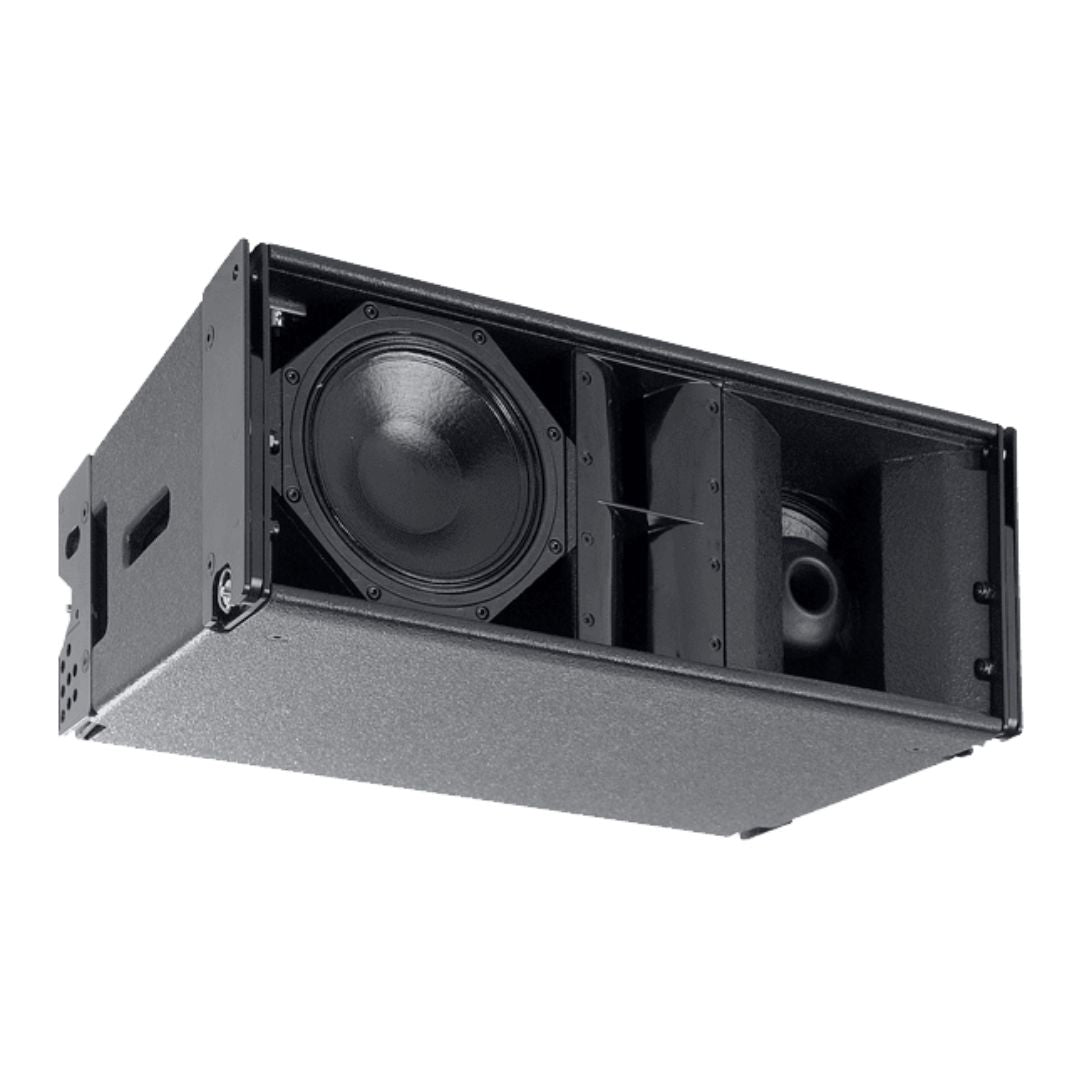

2-Way Passive / Bi-Amp PA Loudspeaker / Stage Monitor

Hardware Fittings & Protection

4x Protective Stacking Skids, 4x M8 Threaded Rigging Inserts

Acoustic & Electrical Performance Specifications

Rated Power Handling (AES)

Low-Frequency (LF): 400 W AES Continuous;
High-Frequency (HF): 80 W AES Continuous

Continuous Sound Pressure Level (SPL)

Low-Frequency (LF): 124 dB SPL Continuous;
High-Frequency (HF): 126 dB SPL Continuous

Maximum Peak SPL

132 dB SPL Peak

Sensitivity (1 W at 1 m)

Full-Range (FR): 97 dB SPL;
Low-Frequency (LF): 98 dB SPL;
High-Frequency (HF): 106 dB SPL

Frequency Range

64 Hz to 18,000 Hz (18.00 kHz, ±3 dB)

Nominal Dispersion Angles

60° x 100° Coverage Dispersion

Nominal Transducer Impedance

Low-Frequency (LF): 8 Ω;
High-Frequency (HF): 16 Ω

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 304.80 mm (12.00") LF Transducer

High-Frequency Transducers (Compression Driver)

1x 35.56 mm (1.40") Throat Exit HF Compression Driver

Connectivity & Termination Specifications

Input & Link Connectors

2x Neutrik NL4 SpeakON Connectors

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

596.00 mm x 292.00 mm x 469.00 mm (23.46" x 11.50" x 18.46")

Product Net Weight

21.00 kg (46.30 lbs)
