Key Specifications

Power Rating

2600 Watts

Amplifier Type

Higher Power Asymmetric Class-D Power Amplifier (Ultra Low Noise Design)

Drivers

4 x HH BLACK SERIES Professional woofers: BLACK 30050 & 1" LaVoce DF10 Horn

Frequency Response

48Hz - 18kHz

Crossover Frequency

3kHz

Processing, DSP & Controls

LA·IR Technology

Laney Advance Impulse Response technology using 56-bit FIR filters for high-quality cabinet emulation

IR Emulation

LA·IR Dual Selectable High quality Digital IR for CABINET and EMULATED DI OUT

Controls

Volume, HF Trim (room control), Speaker and DI Out Emulation Switch, Ground Lift, Light Switch

App Integration

USB Interface to adjust parameters using supplied LA·IR-LFR app

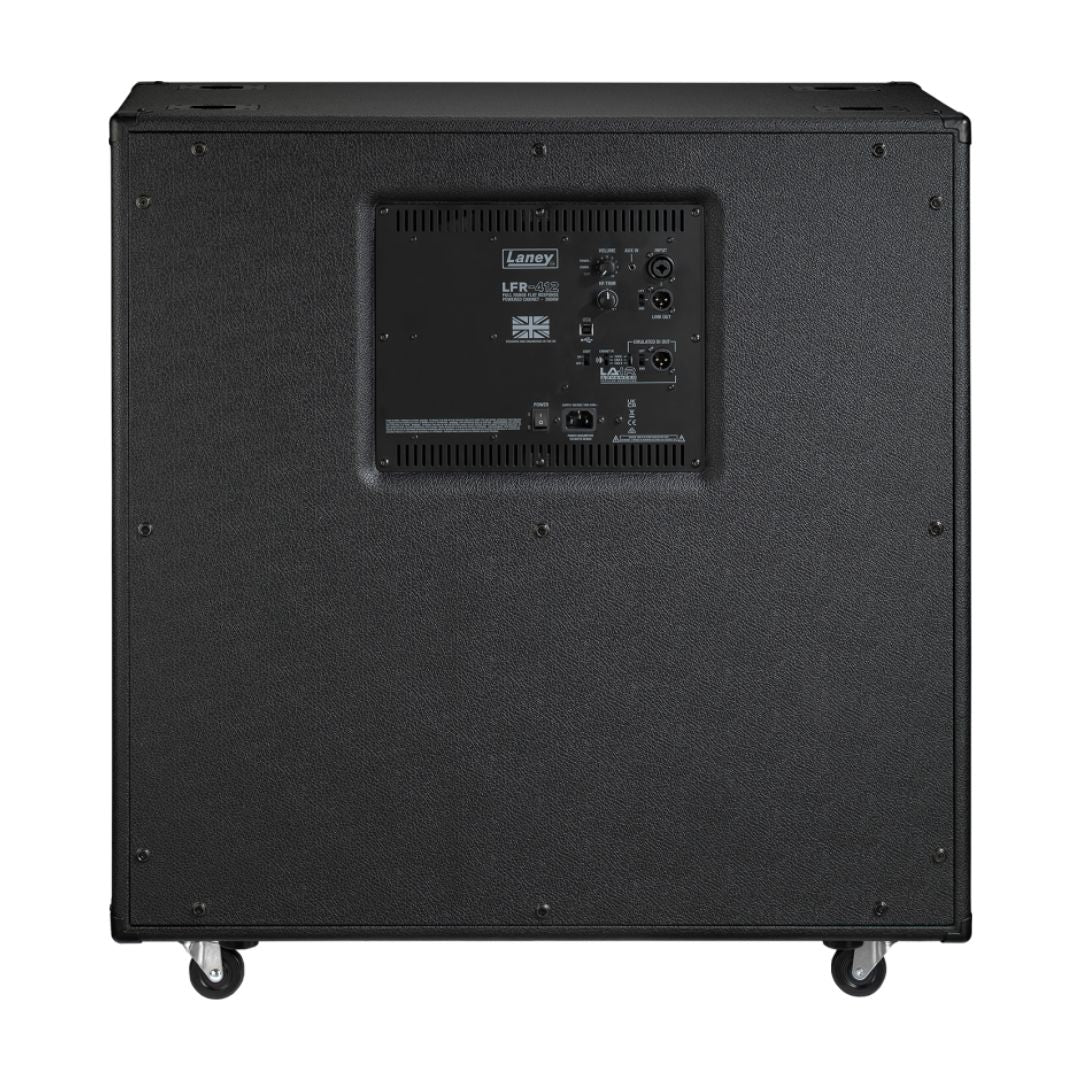

Connectivity & Expansion

Audio Inputs

High Dynamic Range Input stage; Balanced Female XLR/Jack Combi input, 3.5mm Stereo aux in

Audio Outputs

Balanced Male XLR DI Out, Balanced Male XLR Link Out

Enclosure & Hardware Construction

Cabinet Design & Finish

Road Ready Plywood Construction, Hard wearing black vinyl & black metal corners

Hardware & Features

Front illuminated downlight strip, Removable Push-Fit Castors included (Castor Cups allow easy stacking)

Power Specifications

Power Supply

100-240V Universal Voltage, IEC C14 (lead included)

Dimensions & Weight

Item Dimensions (H×W×D)

820mm x 770mm x 365mm

Item Weight

42.8kg

Carton Dimensions (H×W×D)

850mm x 850mm x 445mm

Carton Weight

49.2kg
