Key Specifications

Product Type

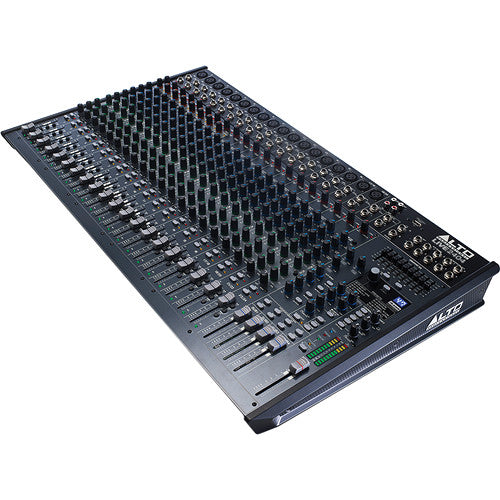

Large-Format Analog Audio Console with Digital Effects

DSP Engine / Effects

10 DSP Effect Families with 10 Variations Each (100 Total Presets)

A/D & D/A Conversion Resolution

24-bit

DSP Controls & Indicators

Rotary Preset Encoder, DSP Mute Switch, Peak LED Indicator

Phantom Power

+48V DC ±2V (Pins 2/3 and Pin 1)

Microphone & Line Inputs

Microphone Inputs

Electronically Balanced, Discrete Input Configuration

Mic Frequency Response & Gain

20 Hz to 20 kHz (+0.5 dB) | Gain Range: 0 to 50 dB

Mic THD+N & SNR

<0.005% (@ 0 dBu, 1 kHz) | SNR: 90 dB

Line Inputs Frequency Response

20 Hz to 20 kHz (+0.5 dB)

Line Inputs Sensitivity & THD+N

Sensitivity Range: -15 dBu to +30 dBu | THD+N: <0.03% (@ 0 dBu, 1 kHz)

Impedance & System Performance

Input Impedances

Mic Inputs: 51.1 kΩ | Insert Return: 200 kΩ | All Other Inputs: >100 kΩ

Output Impedances

2-Track Outputs: 10 kΩ | All Other Outputs: 20 kΩ

Main Mix Bus Noise

Channels Muted: -84 dBr (Ref: +4 dBu, Fader @ 0 dB)
All Inputs Assigned (Unity Gain): -73 dBr (Ref: +4 dBu, Fader @ 0 dB)

Equalization & Processing

Mono Channel Equalization

High Shelving: ±15 dB @ 12 kHz
Mid-Bell (Sweepable): ±15 dB (100 Hz to 8 kHz)
Low Shelving: ±15 dB @ 80 Hz

Stereo Channel Equalization

High Shelving: ±15 dB @ 12 kHz
High-Mid Bell: ±15 dB @ 3 kHz
Low-Mid Bell: ±15 dB @ 500 Hz
Low Shelving: ±15 dB @ 80 Hz

Graphic Master EQ

9-Band Graphic EQ (63, 125, 250, 500 Hz; 1, 2, 4, 8, 16 kHz), ±15 dB

Power, Dimensions & Packaging

Power Supply Input

USA/Canada: 100-120 VAC, 60 Hz
UK/Australia: 240 VAC, 50 Hz
Europe: 210-240 VAC, 50 Hz

Power Consumption & Connection

Consumption: 50 W | Fuse: 1.25 A | Receptacle: Standard IEC

Unit Dimensions & Weight

714mm x 417mm x 79mm (28.1" x 16.4" x 3.1") | Net Weight: 8.3 kg (18.3 lbs)

Packaging Info

Box: 787mm x 523mm x 147mm (31.0" x 20.6" x 5.8") | Gross Weight: 11.82 kg (26.055 lbs)
