Key Specifications

Product / Device Type

Laser Phosphor DLP Multimedia Projector

Projection System / Technology

DLP (Digital Light Processing)

Native Resolution

WUXGA (1920 x 1200)

Native Aspect Ratio

16:10

Maximum Brightness

6,000 ANSI Lumens

Color Depth

10-Bit (1.07 Billion Colors)

Sync Rates

Horizontal: 15 to 102 kHz | Vertical: 23 to 120 Hz

HDR Support

No

Projection Orientation

Front Projection / Ceiling Mountable

Projection Lens & Optics

Lens Included

Yes (Standard Throw Lens)

Lens Aperture & Focal Length

f/1.81 to 2.1 | f = 14.3 mm to 22.9 mm

Optical Zoom

1.6x Optical Zoom

Throw Ratio

1.36 to 2.18:1

Lens Shift Range

Horizontal: ±23% | Vertical: ±60%

Keystone Correction

Horizontal: ±30° | Vertical: ±30°

Light Source Specifications

Light Source Engine

Laser Phosphor

Expected Light Source Life

20,000 Hours (Medium Brightness)

Audio, Interfaces & Control Specifications

Integrated Audio

Built-in 40 W Stereo Speakers (2x 20 W Speakers)

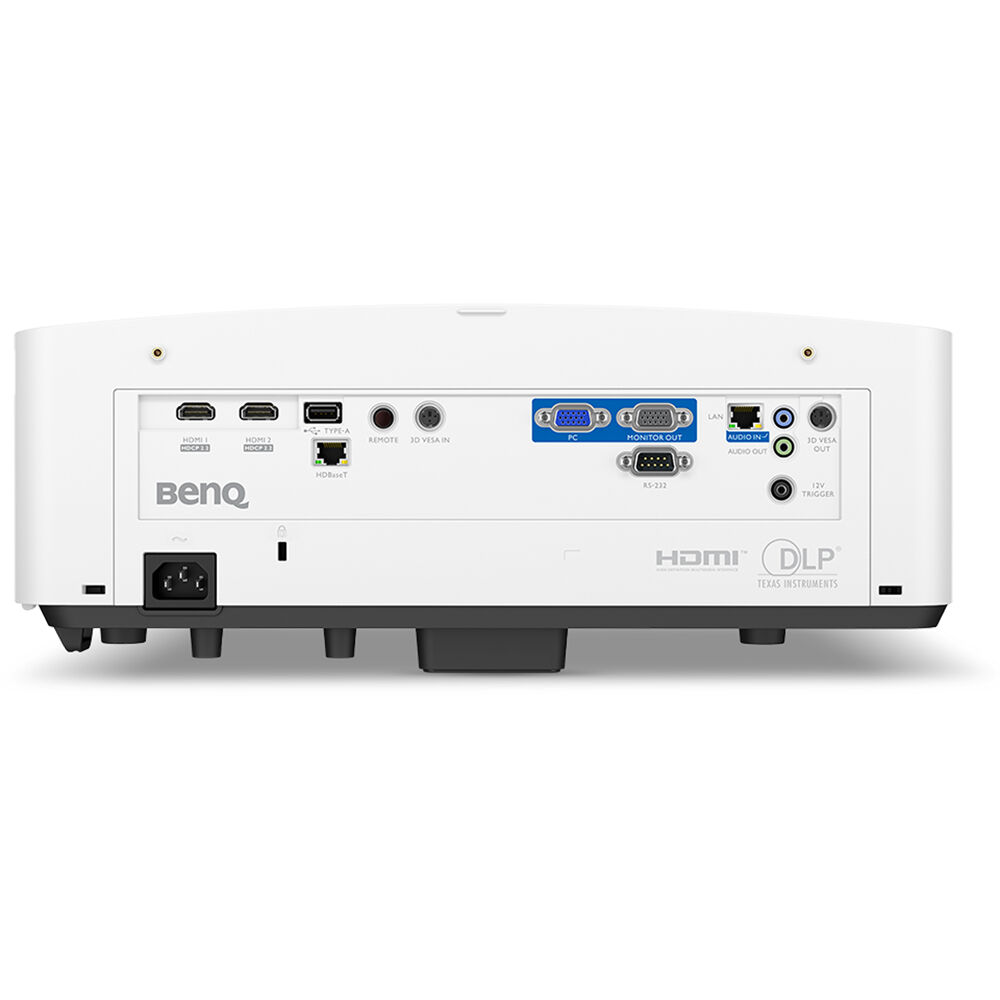

Audio / Video Connections

2x HDMI 2.0a Inputs (HDCP 2.2 Compliant)
1x VGA Input
1x VGA Output
1x RJ45 HDBaseT Input/Output
1x 4-Pin DIN (VESA 3D Sync) Input

Control & Data Interfaces

1x RJ45 (Ethernet LAN Control)
1x DE-9/DB-9 (RS-232 Control Input)
1x 1/8" (3.5 mm) Wired Remote Input
1x 12V Trigger Control Output
1x USB Type-A 2.0

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz

Power Consumption

Medium Brightness: 440 W
Standby Mode: <0.5 W

Operating Temperature

0°C to 40°C (32°F to 104°F)

Unit Dimensions (W×H×D)

416.0mm x 166.0mm x 351.0mm (16.4" x 6.5" x 13.8")

Net Weight

7.0 kg (15.4 lbs)

Packaging Info

Box: 533.4mm x 467.4mm x 289.6mm (21.0" x 18.4" x 11.4") | Gross Weight: 9.39 kg (20.7 lbs)
