Key Specifications

Product / Device Type

Ultra-Short-Throw Laser Phosphor DLP Projector

Projection System / Technology

0.48" DC3 DMD DLP

Native Resolution

WUXGA (1920 x 1200)

Native Aspect Ratio

16:10

Maximum Brightness

5,200 ANSI Lumens

Color Depth

10-Bit (1.07 Billion Colors)

3D Format Support

Yes (Frame Sequential, Frame Packing, Side-by-Side, Top-Bottom, DLP Link 3D Glasses Supported)

Sync Rates

Horizontal: 15 to 135 kHz | Vertical: 23 to 120 Hz

Projection Modes & Offset

Front, Rear, Ceiling Mountable | Offset: 122%

Projection Lens & Optics

Lens Included

Yes (Ultra-Short-Throw Lens with Manual Focus)

Projection Image Size

100" to 150" (254 cm to 381 cm)

Throw Distance & Ratio

Ultra-Short-Throw: 0.87" to 32.9" (2.22 cm to 83.6 cm) | Throw Ratio: 0.25:1

Optical Zoom & Lens Shift

No Zoom (Fixed Lens) | No Lens Shift

Keystone Correction

Horizontal: ±30° | Vertical: ±30°

Light Source Specifications

Light Source Engine

Laser Phosphor

Expected Light Source Life

Full Brightness: 20,000 Hours
Medium Brightness: 38,000 Hours
Low Brightness: 70,000 Hours

Audio, Connectivity & Control Specifications

Integrated Audio

Built-in 10 W Speaker (1x 10 W Speaker)

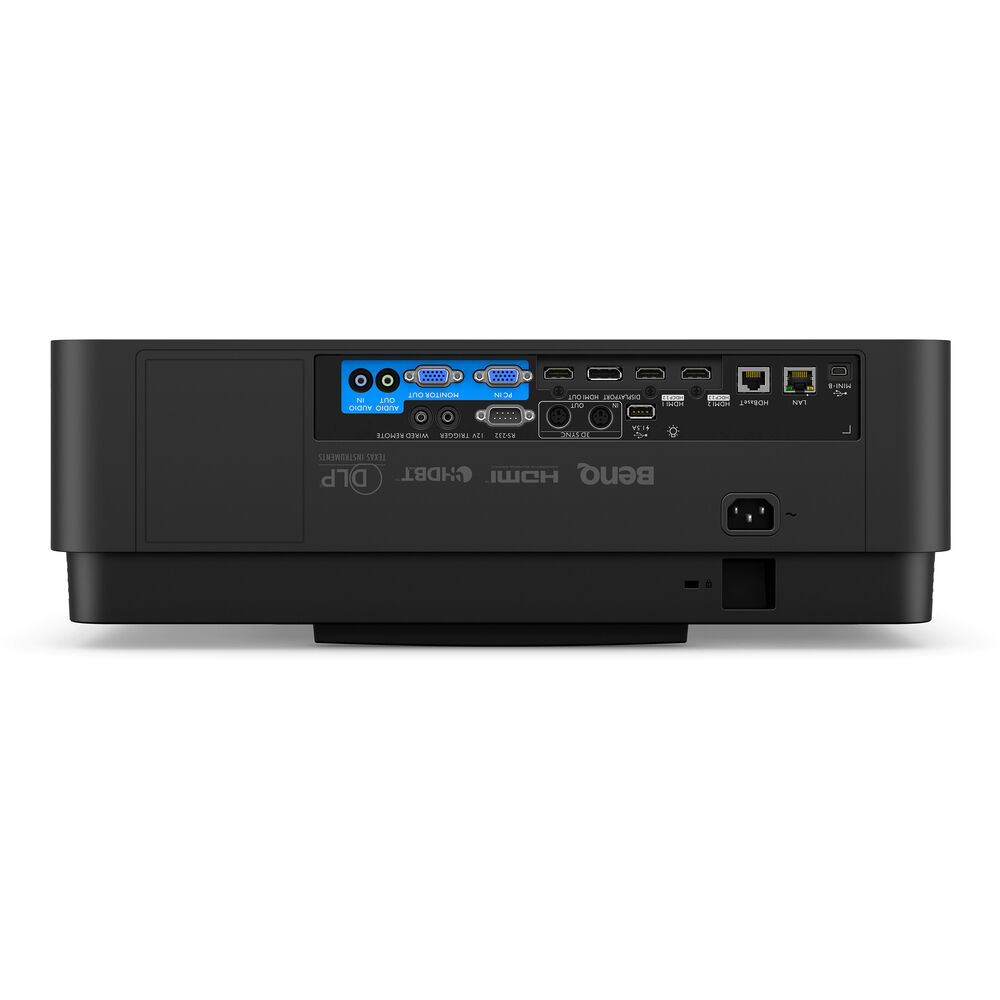

Audio / Video Connections

2x HDMI 2.0 Inputs
1x HDMI Output
1x DisplayPort Input
1x RJ45 HDBaseT Port (Audio / Data / Video)
1x VGA Input
1x VGA Output
1x 3.5mm Mini Audio Input
1x 3.5mm Mini Audio Output
1x 3-Pin DIN VESA 3D Sync Input
1x 3-Pin DIN VESA 3D Sync Output

Control & Data Interfaces

1x RJ45 (Ethernet LAN Control)
1x DE-9/DB-9 (RS-232 Control)
1x 3.5mm Wired Remote Input
1x 12V Trigger Control
1x USB Type-A 2.0
1x Mini-USB 2.0

Security Features

Cable Lock Slot, Security Bar

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz @ 7A

Power Consumption

Full Brightness: 500 W
Medium Brightness: 450 W
Low Brightness: 339 W
Standby Mode: <0.5 W

Acoustic Noise Level

Full Brightness: 37 dB | Low Brightness: 35 dB

Operating Environmental Range

Temperature: 0°C to 40°C (32°F to 104°F) | Relative Humidity: 10% to 90%

Item Dimensions (W×H×D)

480.0mm x 163.1mm x 473.0mm (18.9" x 6.4" x 18.6")

Net Weight

12.0 kg (26.4 lbs)
