Key Specifications

Product Type

8-Channel High-Density Power Amplifier

Amplifier Topology

Class-D Switching Power

Signal-to-Noise Ratio

> 95 dB (A-weighted)

Damping Factor

> 200 (1kHz, 8Ω)

Power Output (RMS)

4 Ω (All Channels Driven)

130W x 8

4 Ω (One Channel Driven)

150W x 8

8 Ω (All Channels Driven)

70W x 8

Connectivity & Processing

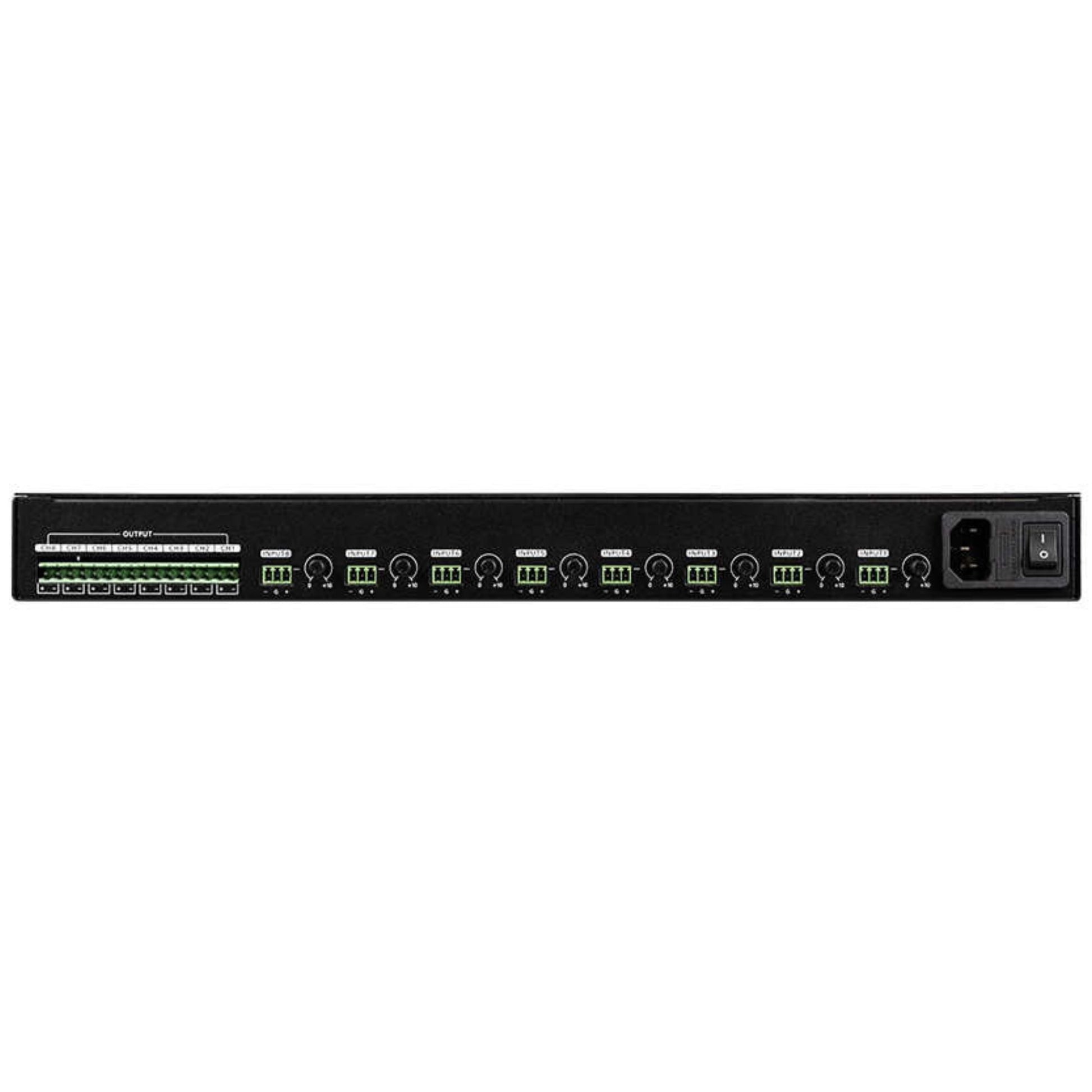

Input Connectors

Euroblock (Balanced/Unbalanced)

Output Connectors

Euroblock

Input Impedance

20kΩ Balanced / 10kΩ Unbalanced

Voltage Gain

28 dB (±0.5 dB)

Protection & Physical

Protections

Short circuit, Thermal, Ultrasonic, RF, Muting

Indicators

Signal (Green), Clip (Red), Protection (Red) x 8

Dimensions (W x D x H)

483 x 360 x 44 mm (Standard 1U Rack)

Net Weight

6.3 kg (13.9 lbs)
