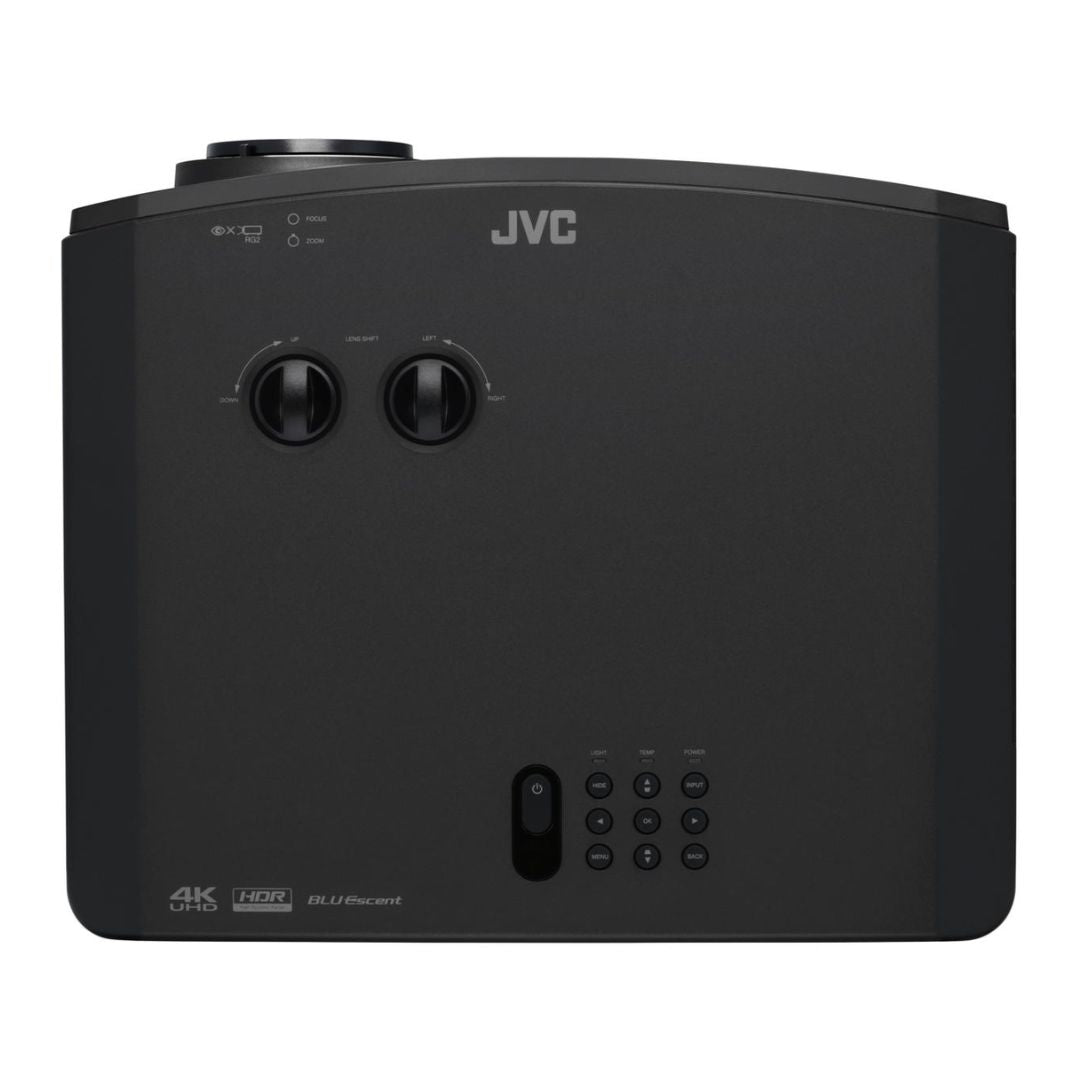

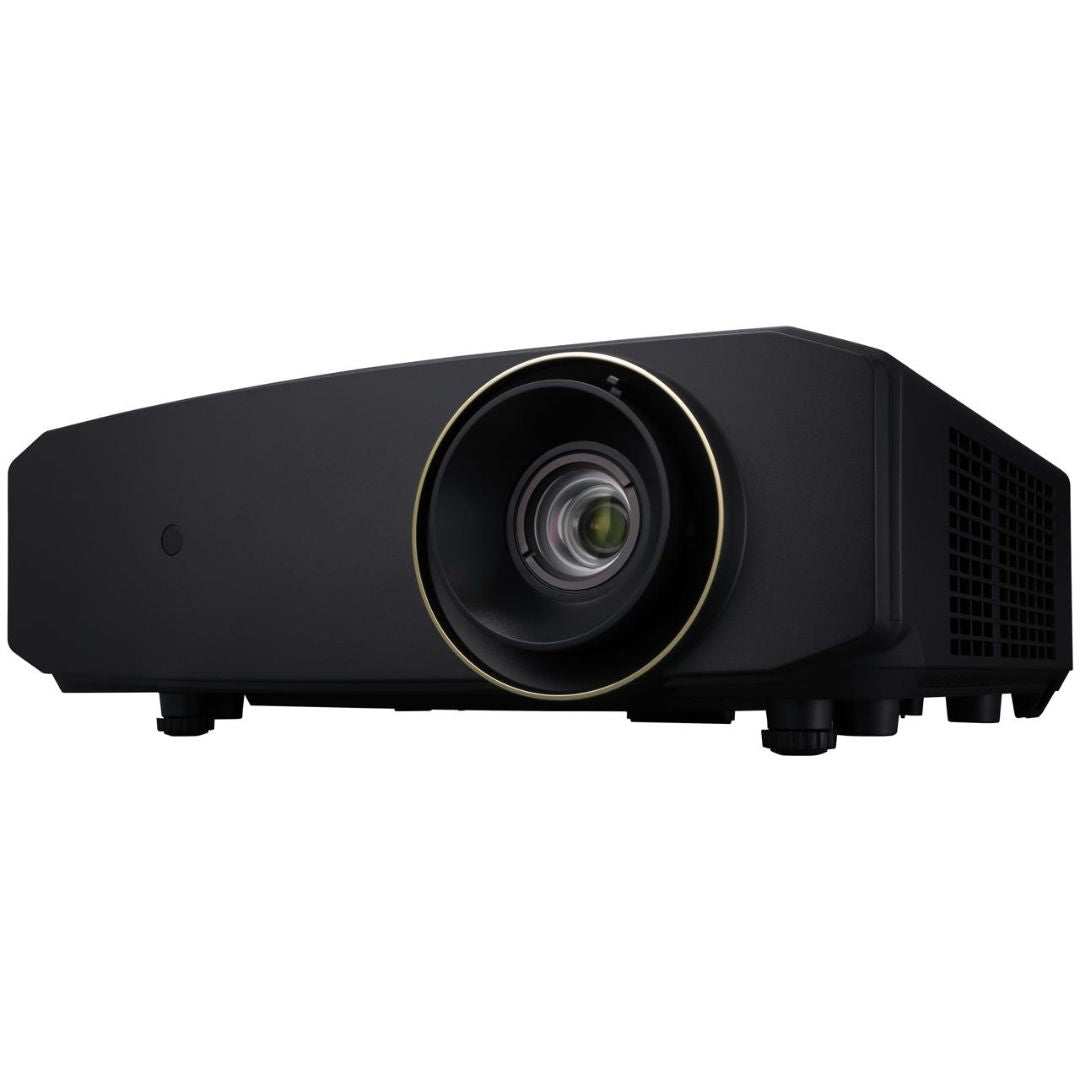

JVC LX-NZ30
JVC LX-NZ30
|
Key Specifications |
|
|
Product / Accessory Type |
4K UHD DLP Home Theater & Gaming Video Projector |
|
Display Technology & Device |
0.47" Digital Micromirror Device (DMD) Single-Chip DLP Engine |
|
Included Accessories |
Wireless Remote Control, AC Power Cord, User Manual, AAA Batteries |
|
Acoustic, Thermal & Environmental Specifications |
|
|
Acoustic Noise Level |
34 dB (Standard Mode) / 29 dB (Eco Mode) |
|
Operating Temperature Range |
0 °C to 40 °C (32 °F to 104 °F) |
|
Operating Relative Humidity |
10% to 90% (Non-Condensing) |
|
Display & Optical Performance Specifications |
|
|
Native & Displayed Resolution |
3840 x 2160 4K UHD Display Resolution |
|
Light Source & Operational Life |
BLU-Escent Laser Engine; 20,000 Hours Lifespan (Standard Mode) |
|
Luminous Flux Output (Brightness) |
3300 Lumens |
|
Light Power Control & Gamut |
Dynamic Light Power Control (2 Modes), Manual Light Power Control, 100% REC.709 Color Space Coverage |
|
Projection Image Size (Diagonal) |
60" to 200" (1,524.00 mm to 5,080.00 mm) |
|
Lens Optical Parameters |
1.6x Optical Zoom (Focal Length: f = 14.3–22.9 mm, Aperture: F1.809) |
|
Lens Shift Range |
Vertical Range: ±60%; Horizontal Range: ±23% |
|
High Dynamic Range (HDR) & Signal Processing Specifications |
|
|
High Dynamic Range (HDR) Standards |
HDR10, HLG (Hybrid Log-Gamma) |
|
HDR Image Enhancement & Analytics |
Auto Tone Mapping, Mastering Information Display |
|
Video Processing & Calibration Features |
3D Color Management System (CMS), Gamma Adjust (1.8, 2.0, 2.1, 2.2, 2.3, 2.4, 2.6, Contrast Priority, Brightness Priority), Low Latency High Refresh Rate Mode |
|
Electrical & Power Specifications |
|
|
Input Power Supply |
AC 100 V to 240 V, 50 / 60 Hz Universal Power Supply |
|
Power Consumption |
360 W Operational Power Draw; 0.5 W Standby Mode |
|
Connectivity & Signal Processing Specifications |
|
|
HDMI Audio / Video Inputs |
2x HDMI 2.0 Inputs (HDCP 2.3 Compliant) |
|
Supported HDMI Video Input Resolutions |
4K Input: 3840 x 2160p @ 24/25/30/50/60 Hz; |
|
Supported PC Input Formats |
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, UXGA, WQHD (60 Hz), FHD (240 Hz), UHD (60 Hz) |
|
DisplayPort & Digital Interfaces |
1x USB Type-C Port (DisplayPort Alt Mode Input), 1x DisplayPort Input |
|
Input Level Adjustment |
Auto, Normal (16–235), Enhanced (0–255) |
|
Control, System & Power Interfaces |
1x 3.5 mm Mini-Jack Trigger Output (DC 12 V / 100 mA), 1x RJ-45 LAN Network Port, 1x RS-232C D-Sub 9-Pin Serial Control Port, 1x USB Type-A Power Output (5 V / 1.5 A) |
|
Dimensions & Weight Specifications |
|
|
Product Dimensions (W×H×D) |
405 mm x 145.8 mm x 341 mm (15.94" x 5.74" x 13.43") |
|
Product Net Weight |
5.9 kg (13.01 lbs) |
|
Packaging Dimensions (W×H×D) |
515 mm x 276 mm x 450 mm (20.28" x 10.87" x 17.72") |
|
Gross Shipping Weight |
8 kg (17.64 lbs) |
