Key Specifications

Max I/O Capacity

40 × Input / 25 × Output

Number of Analog Input Channels

32 (32 Mono / 0 Stereo)

Number of Mic Preamps

32

Number of Analog Output Channels

16

Faders & Level Adjustment

25 Fader (Touch Sensitive)

Built-In Effects

8 × Stereo
16 × Mono

Analog Inputs

32 × XLR Mic Input
6 × 1/4" TRS Balanced Aux Input
1 × Stereo RCA Aux Input
1 × XLR Talkback Input

Analog Outputs

16 × XLR Main/Bus Output
6 × 1/4" Aux Output
1 × Stereo RCA Aux Output
2 × XLR Control Room/Monitor Output
2 × 1/4" Control Room/Monitor Output
1 × 1/4" Headphone Output

Digital I/O

1 × RJ45 (Control)
1 × etherCON Ultranet
2 × etherCON AES50/SuperMAC
1 × XLR AES3 Output

USB I/O

USB-A
USB-B

Wireless

No

Rack Mountable

Yes

Mixer

Max I/O Capacity

40 × Input / 25 × Output

Number of Analog Input Channels

32 (32 Mono / 0 Stereo)

Number of Mic Preamps

32

Number of Analog Output Channels

16

Mix Routing

2 × Main LRC
6 × Bus
6 × Matrix
6 × Aux Send

Groups

6 × Mute Group
8 × DCA Group

Presets

100 × Scene
500 × Cue
100 × Snippet

Display

Main Display:
7" LCD (Daylight-Viewable)
Channel Display:
LCD (Backlit)

Faders & Level Adjustment

25 Fader (Touch Sensitive)

Meters

Main Meter:
24-Segment LED

Signal Processing

Input Polarity

Normal / Reverse

Dynamic Processing

Input Channels, Buses, Master, Mono Channels, Stereo Channels:
Compressor
Input Channels:
Gate

EQ

6-Band Parametric

Graphic EQ

Yes

Solo / Mute

Solo, Mute per Input Channel, Bus, FX Bus
Mute per Master

Built-In Effects

8 × Stereo
16 × Mono

Audio Delay

Yes

Automatic Mic Mixing

No

Digital Audio

Sample Rates

48 kHz

Bit Depth

AD/DA Conversion:
24-Bit

Performance

Frequency Response

20 Hz to 20 kHz 0/-1 dB (at 48 kHz)

Maximum Input Level

1/4" TRS Input:
+21 dBu
Mic Input:
+23 dBu

Analog Dynamic Range

Input to Output:
106 dB

I/O Impedance

1/4" TRS Input:
20 Kilohms (Unbalanced)
40 Kilohms (Balanced)
Mic Input:
10 Kilohms (Unbalanced)
10 Kilohms (Balanced)
XLR Output:
50 Ohms (Balanced/Unbalanced)
1/4" TRS Output:
50 Ohms (Balanced/Unbalanced)
Headphone Output:
40 Ohms

Noise Floor

XLR All Outputs:
-85 dBu Unweighted (at Unity Gain)
-88 dBu Unweighted (with Inputs Muted)
1/4" Aux Output:
-83 dBu Unweighted

THD+N

Mic Input:
< 0.01% at Unity Gain
< 0.03% at +40 dB Gain

Signal Generator

Yes

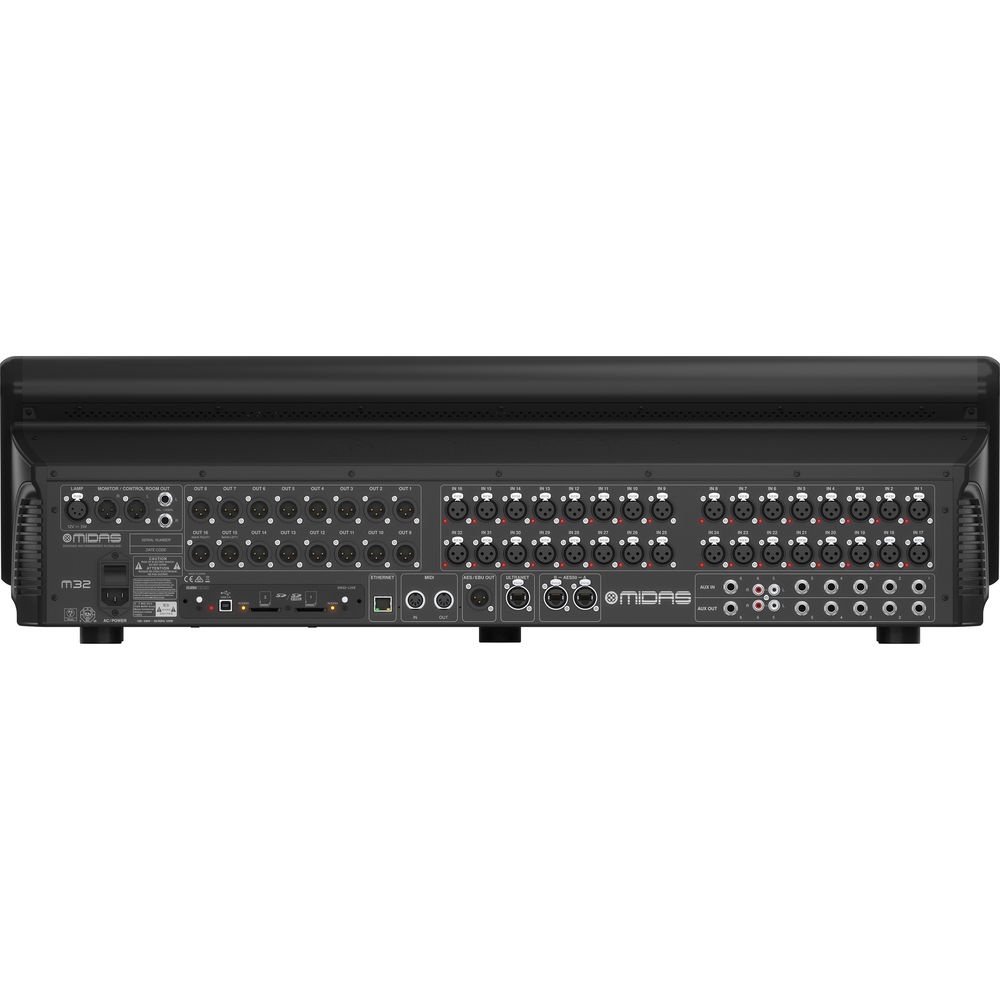

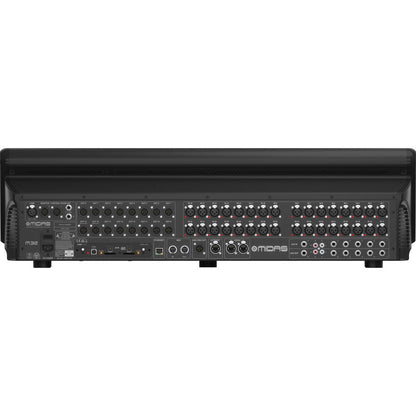

Connectivity

Analog Inputs

32 × XLR Mic Input
6 × 1/4" TRS Balanced Aux Input
1 × Stereo RCA Aux Input
1 × XLR Talkback Input

Analog Outputs

16 × XLR Balanced Main/Bus Output
6 × 1/4" TRS Balanced Aux Output
1 × Stereo RCA Aux Output
2 × XLR Control Room/Monitor Output
2 × 1/4" TRS Balanced Control Room/Monitor Output
1 × 1/4" TRS Headphone Output

Phantom Power

+48 V (Selectable on Individual Inputs)

Digital I/O

1 × RJ45 (Control)
1 × etherCON Ultranet
2 × etherCON AES50/SuperMAC
1 × XLR AES3 Output

MIDI I/O

1 × MIDI 5-Pin In
1 × MIDI 5-Pin Out

USB I/O

1 × USB-A (Audio Playback, External Memory)
1 × USB-B (Control)

USB I/O Capacity

32 × Input / 32 × Output

Expansion Ports

2 × 32 × 32 I/O Card

Wireless

No

Mobile App Compatible

Yes: Android & iOS
App Name: M32-Mix, M32-Q
Functionality: Adjust Settings, Remote Control, Setup

External Display I/O

No

Recording

Max Multitrack Recording

32 Tracks

Media Support

SDHC, USB Drive

Compatibility

OS Compatibility

Computer: Windows / macOS
Mobile: Android / iOS

OS Compatibility

Windows
macOS

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Operating Conditions

41 to 104°F / 5 to 40°C

Dimensions

35.1 × 23.9 × 10.1" / 89.2 × 60.7 × 25.7 cm

Weight

53.9 lb / 24.4 kg

Packaging Information

Package Weight

70 lb

Box Dimensions (L × W × H)

41 × 29.3 × 15"
