MA 101G / ACT 58H
MA 101G / ACT 58H
MIPRO
UNIT: SET
Product Code: SKU:MPRO-101G/58H-CHN-9086
Key Features

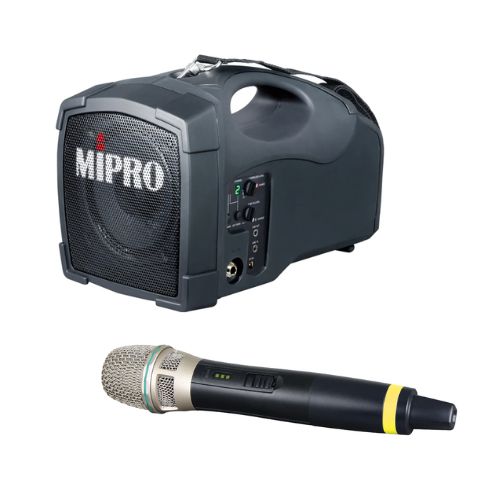

MIPRO MA 101G / ACT 58H
MIPRO MA 101G / ACT 58H
|
Key Specifications |
|
|
ACT-58H |
|
|
Model |
ACT-58H |
|
Product Name |
5 GHz Digital Handheld Transmitter |
|
Frequency Range |
ISM 5.8 GHz |
|
Bandwidth |
125 MHz |
|
Display |
LED Display with Three-Segment Battery Level and Wake-Up Status Indicator |
|
Control Interface |
ACT Sync Sensor |
|
Microphone Capsule |
MU-80 Condenser or Compatible Capsule Modules |
|
RF Power Output |
20 mW (Country Dependent) |
|
Power Supply |
2 x AA Alkaline Batteries |
|
Dimensions (Ø × L) |
51 × 257 mm |
|
Weight |
Approx. 240 g |
|

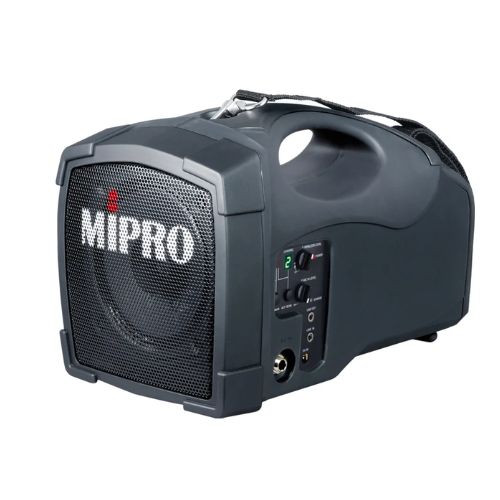

MA-101G |
|
|
Model |
MA-101G |
|
Product Name |
5 GHz Personal Wireless Megaphone |
|
Maximum SPL |
107 dB SPL |
|
Speaker System |
5" Full Range Speaker |
|
Output Power |
45 W RMS / 76 W Peak |
|
Frequency Response |
125 Hz – 18 kHz |
|
Amplifier Type |
Class D |
|
Audio Inputs |
1 x 6.3 mm MIC IN, 1 x 3.5 mm LINE IN |
|
Audio Outputs |
1 x 3.5 mm LINE OUT |
|
Receiver Module |
1 x UHF Module |
|
Player Module |
Plug-In Bluetooth Module |
|
Power Supply |
DC 19–24 V via External AC Adapter (100–240 V) |
|
Battery Type |
Built-In Li-Ion Battery Pack (MB-25) |
|
Battery Indicator |
Single LED Indicator for Power and Charging Status |
|
Standby Time |
Up to 10 Hours |
|
Accessories |
SC-100 Carry Bag; MS-30 Tripod Stand (Optional) |
|
Dimensions (W × H × D) |
160 × 178 × 285 mm |
|
Weight |
Approx. 2.1 kg (Including Battery) |
MIPRO MA 101G / ACT 58H Accessories
- No accessories available.
