Key Specifications

Form Factor/Type

Rackmount

Number of Amplifier Channels

4

Load Impedance/Voltage Support

2 / 4 / 8 Ohms
25 / 70 / 100 V

Power Rating per Channel

4x 500 W at 2/4/8 Ohms
4x 500 W at 25/70/100 V
4x 300 W at 25 V

Channel Bridging & Power Sharing

2x 1000 W Bridged at 4/8 Ohms
1x 1800 W Bridged at 4/8 Ohms
1x 1800 W Bridged at 70/100 V
1x 900 W Single Channel Driven at 4/8 Ohms
1x 900 W Single Channel Driven at 70/100 V

Amplifier Class

Class-D

Performance

Protections

Output Limiter, Overcurrent, Thermal

Signal Processing

DSP

No

Audio Delay

No

Dynamics

Limiter

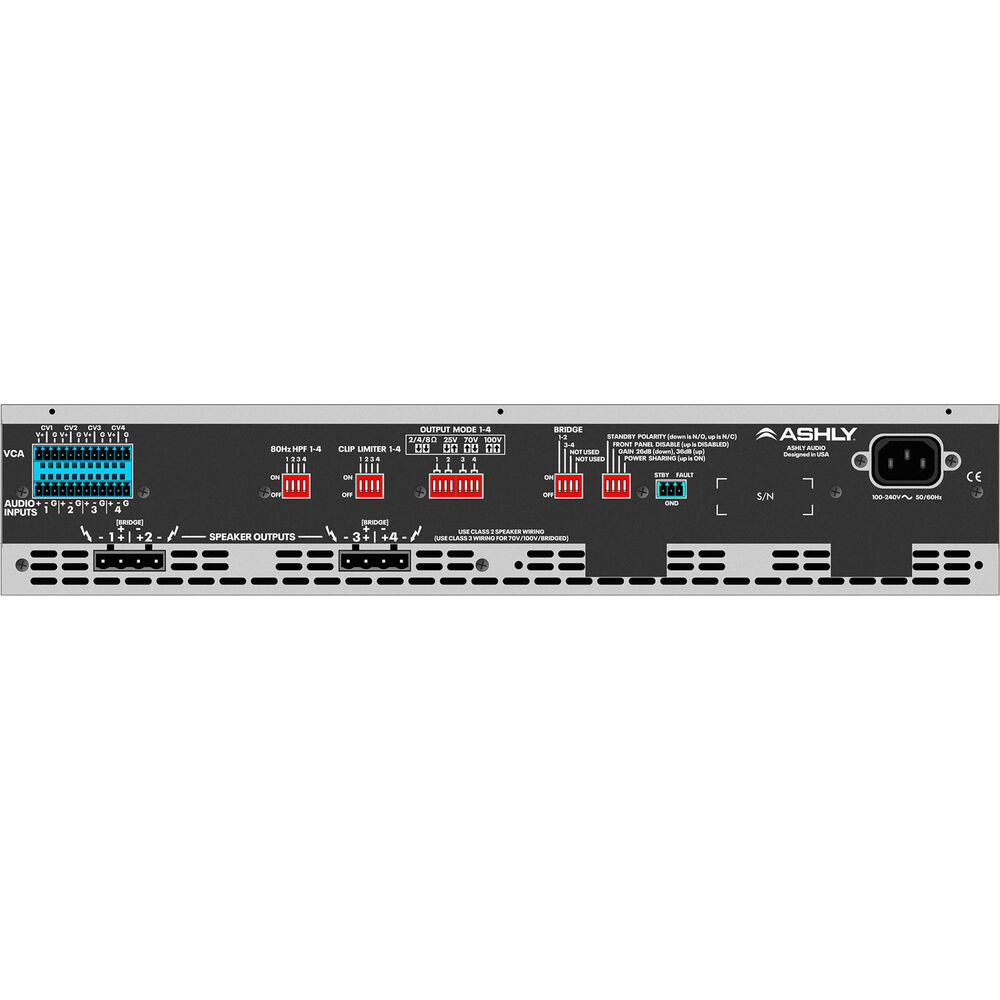

Connectivity

Analog Audio I/O

1x Block 12-Pin Balanced Link Input
2x Block 4-Pin Speaker Output

Digital Audio I/O

No

Network I/O

No

USB I/O

No

Phantom Power

No

Wireless

No

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Physical

Display

Single-LED Indicators Only

Rackmount Size

2 U

Cooling

Fan (Variable Speed)

Dimensions

19 x 3.5" / 48.3 x 8.9 cm
