Key Specifications

Product / Accessory Type

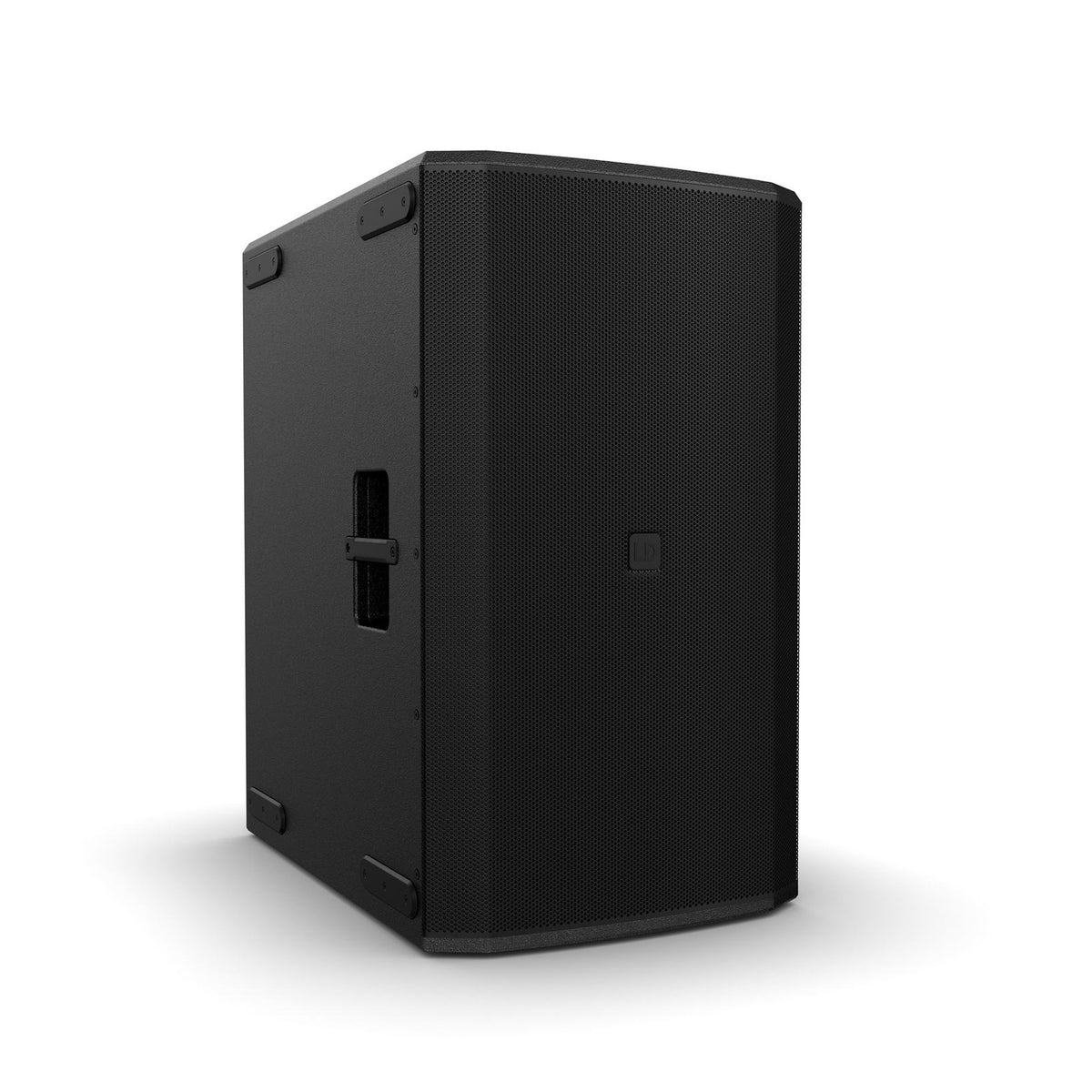

Active High-Output Dual 15" Subwoofer

Enclosure Material & Construction

18 mm Birch Multiplex (Bandpass Design with Polyurea Coating & Aluminum Front Grille)

Transport Handles

6x Carrying Handles

Cooling System

Convection Cooling (No Fan Noise)

Product Color & Finish

Black Finish

Acoustic & Electrical Performance Specifications

Amplifier Output Power

2,500 W Continuous RMS Output

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

137 dB Peak SPL (Pink Noise, Halfspace/1 m, CF 4) / 132 dB Continuous Average SPL (Sine Burst, BW, Halfspace/1 m, THD ≤10%)

Low-Frequency Cutoff Limit

33 Hz (-6 dB, rel. Avg)

Amplifier Protection Systems

Limiter, Overheating Protection, Overload Protection

Speaker Component Specifications

Low-Frequency Transducers (Subwoofer)

2x 381.00 mm (15.00") Custom Woofers with 101.60 mm (4.00") Voice Coils & Neodymium Magnets

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

SysCore® DSP Engine (24-Bit / 48 kHz AD/DA Conversion)

Audio Processing Features

Fully Parametric 10-Band EQ, Delay Line Alignment, System Presets

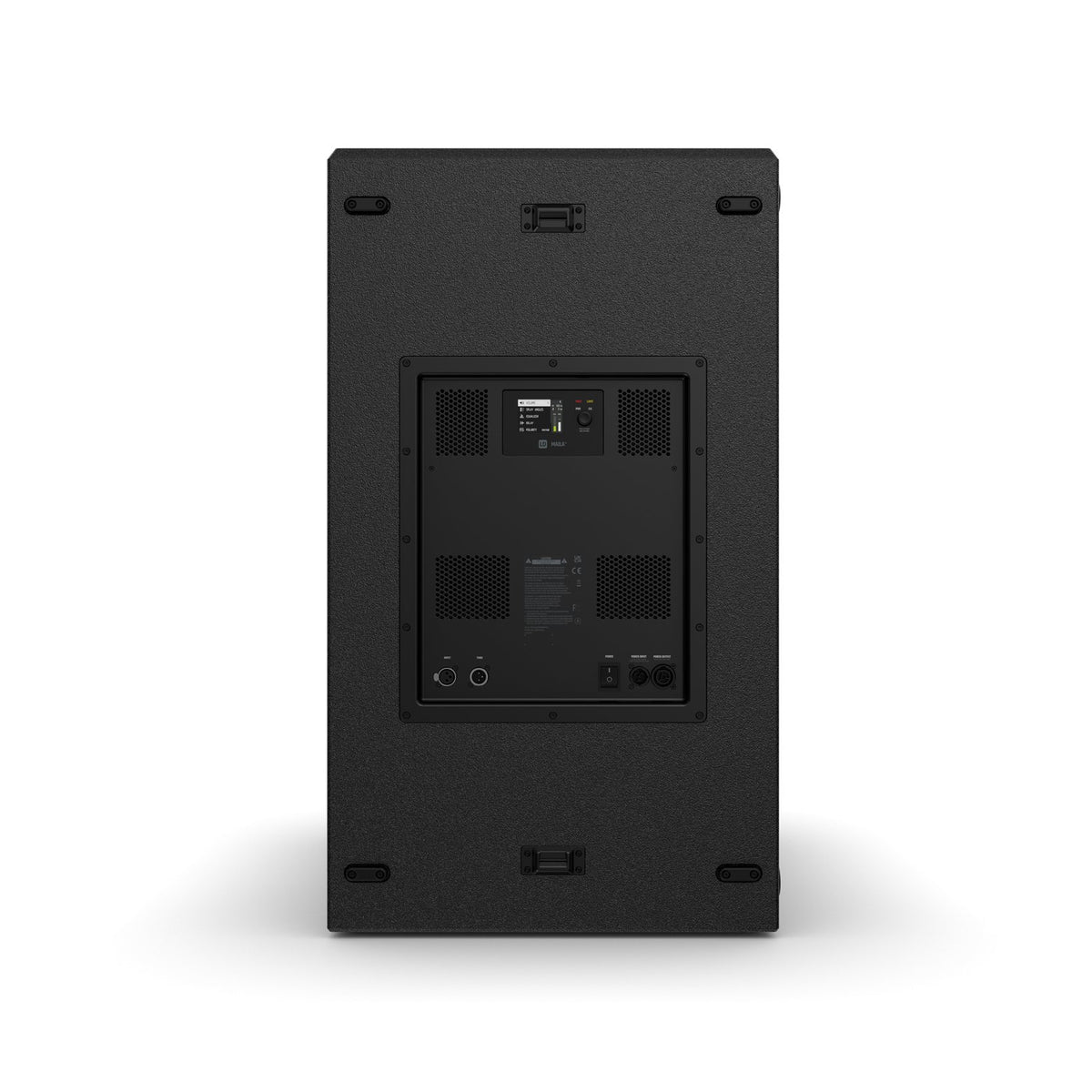

Audio Line Inputs & Outputs

Input: 1x Balanced XLR 3-Pin Female (20 kOhms Input Impedance);
Output: 1x Balanced XLR 3-Pin Male

Wireless Connectivity & Control

Bluetooth 5.0 Wireless Technology (Dedicated App Control Supported)

Power & Electrical Specifications

Power Supply Unit Type

Switched-Mode Power Supply (SMPS)

AC Mains Input Voltage

100 to 240 VAC, 50 / 60 Hz

Power Consumption

1,300 W Rated Power Consumption

Mains Connector

Indoor Power In Male & Neutrik powerCON® Terminal

Environmental Operating Limits

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Limits

Up to 80% Relative Humidity (Non-Condensing)

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

540.00 mm x 934.00 mm x 803.00 mm (21.26" x 36.77" x 31.61")

Product Net Weight

89.80 kg (197.97 lbs)
