Key Specifications

DSP Architecture

SHARC ADSP-21489, 450 MHz

Word Length / DSP Precision

32 / 64-bit Floating Point

CODEC

32-bit, 48 kHz / 96 kHz

Power Supply Input

100-240V AC, 50/60 Hz

Input Audio Specifications

MIC / Line Inputs

Active Balanced

Preamplifier Gain Settings

+10 dB to +60 dB (1 dB Steps)

Digital Gain Range

0 dB to -48 dB (12 dB Steps)

Input Impedance

6.8 kΩ

Phantom Power Supply

+48V DC (±3V)

Maximum Input Level

+20 dBu

Input THD+N

<0.03% (Typical, 20 Hz – 20 kHz @ 0 dBu, A-Weighted)

Input Frequency Response

20 Hz to 20 kHz (@ 0 dBu -1.5 dB, A-Weighted)

Input Dynamic Range

108 dB

Input Channel Crosstalk

<-88 dB (20 Hz – 20 kHz @ 0 dB, Channel to Channel)

Output Audio Specifications

Outputs

Active Balanced

Output Impedance

200 Ω

Maximum Output Level

+20 dBu

Output Frequency Response

20 Hz to 20 kHz (@ 0 dBu ±1.5 dB, A-Weighted)

Output Dynamic Range

108 dB

Output Channel Crosstalk

<-88 dB (20 Hz – 20 kHz @ 0 dB, Channel to Channel)

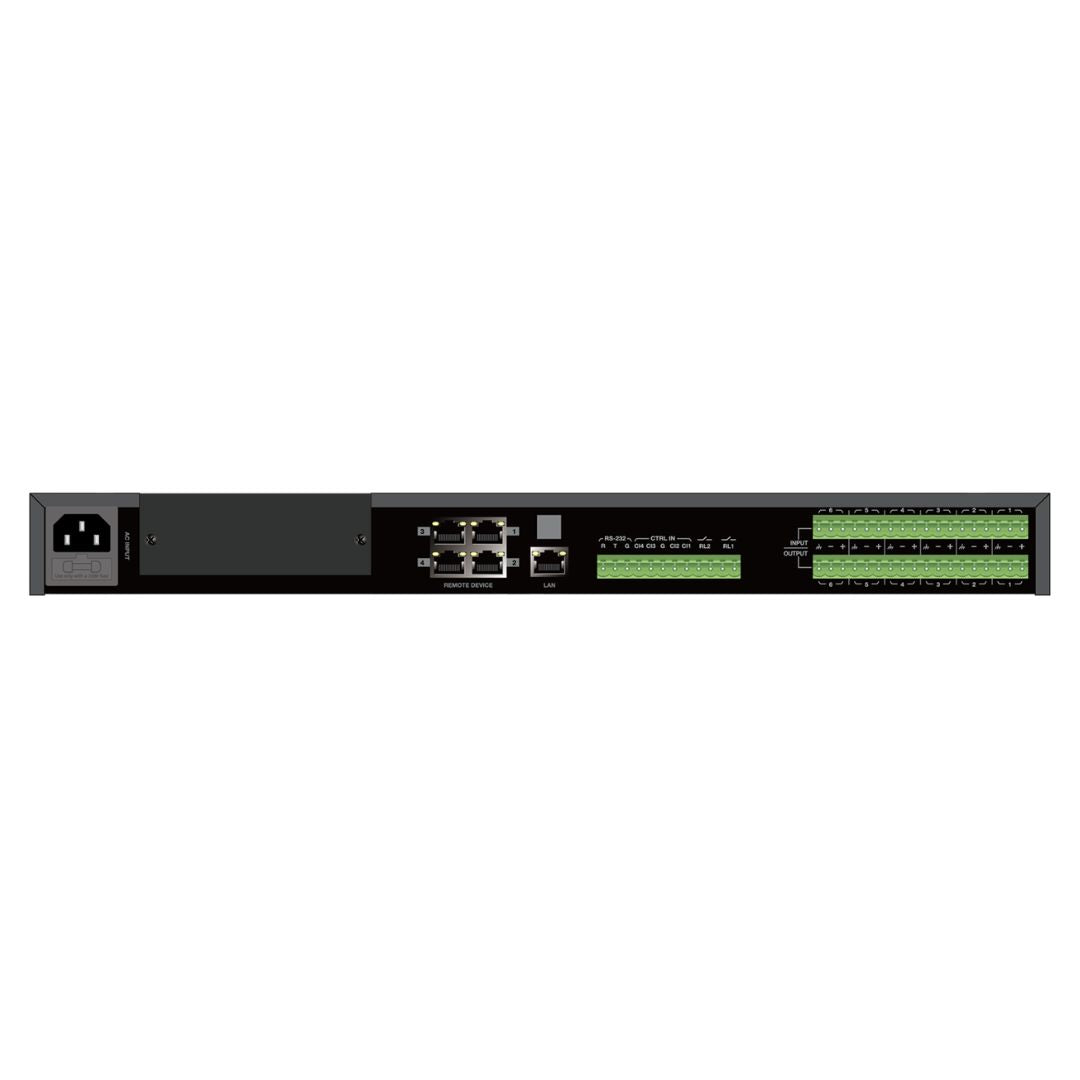

Connectivity, Indicators & Physical Specifications

Connectors

3x 6-Pin Euroblock (5 mm Pitch)

Signal Status Indicator

-40 dBu (Green LED)

Overload / Clip Indicator

+19 dBu Max (Red LED, A-Weighted)

Item Dimensions (W×H×D)

483mm x 44mm x 256mm (19.02" x 1.73" x 10.08" — 1U Rackmount)
