Key Specifications

Processor Architecture

ADSP-Series, 450 MHz

Word Length / DSP Precision

32 / 64-bit Floating Point

Power Supply

100-240V, 50/60 Hz

Audio Performance & Microphone Inputs

MIC Inputs

Active Balanced

Input Impedance

6.8 kΩ

Output Impedance

240 Ω

Total Harmonic Distortion (THD+N)

<0.01% (Typical, 20 Hz – 20 kHz @ 0 dBu)

Frequency Response

20 Hz to 20 kHz (0 dB ±1.5 dB)

Dynamic Range

-107 dBu Max (A-Weighted)

Channel Crosstalk

-70 dB Max (A-Weighted, 20 Hz – 20 kHz, +20 dBu, Channel to Channel)

Connectivity & Monitoring Indicators

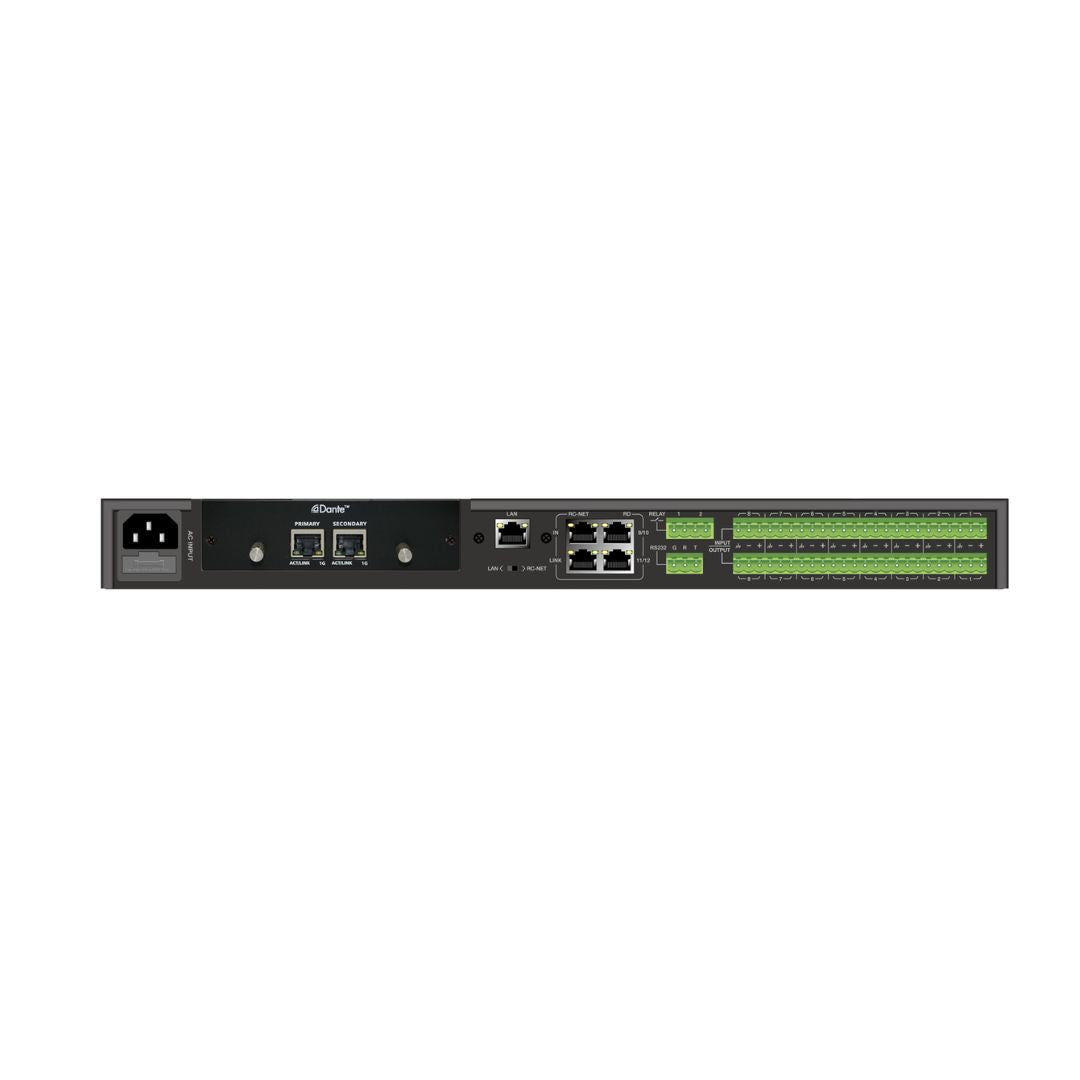

Connectors

4x 6-Pin Euroblock (5 mm Pitch)

Signal Status Indicator

-30 dBu (Green LED, Peak-Reading)

Overload / Clip Indicator

+17 dBu (Red LED, Peak-Reading)

Dimensions & Physical Specifications

Item Dimensions (W×H×D)

483mm x 44mm x 256mm (19.02" x 1.73" x 10.08")
