Key Specifications

Product / Accessory Type

Active 3-Way Column Array Loudspeaker System with Subwoofer

Total Input Channels

2 Input Channels (2x Mono)

Enclosure Material & Construction

Plywood Subwoofer with Polyurethane Finish, Aluminum Top Column Array (Bass-Reflex Design)

Transport Handles

1x Top Carrying Handle (Subwoofer Cabinet)

Environmental Resistance

None

Acoustic & Electrical Performance Specifications

Amplifier Output Power

700 W Continuous RMS Output

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

125 dB Maximum SPL

Frequency Response

39 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

120° Horizontal x 30° Vertical

Amplifier Protection Systems

DC Fault, Output Limiter, Short Circuit Protection, Thermal Protection

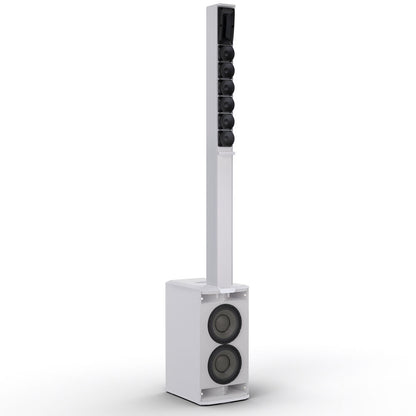

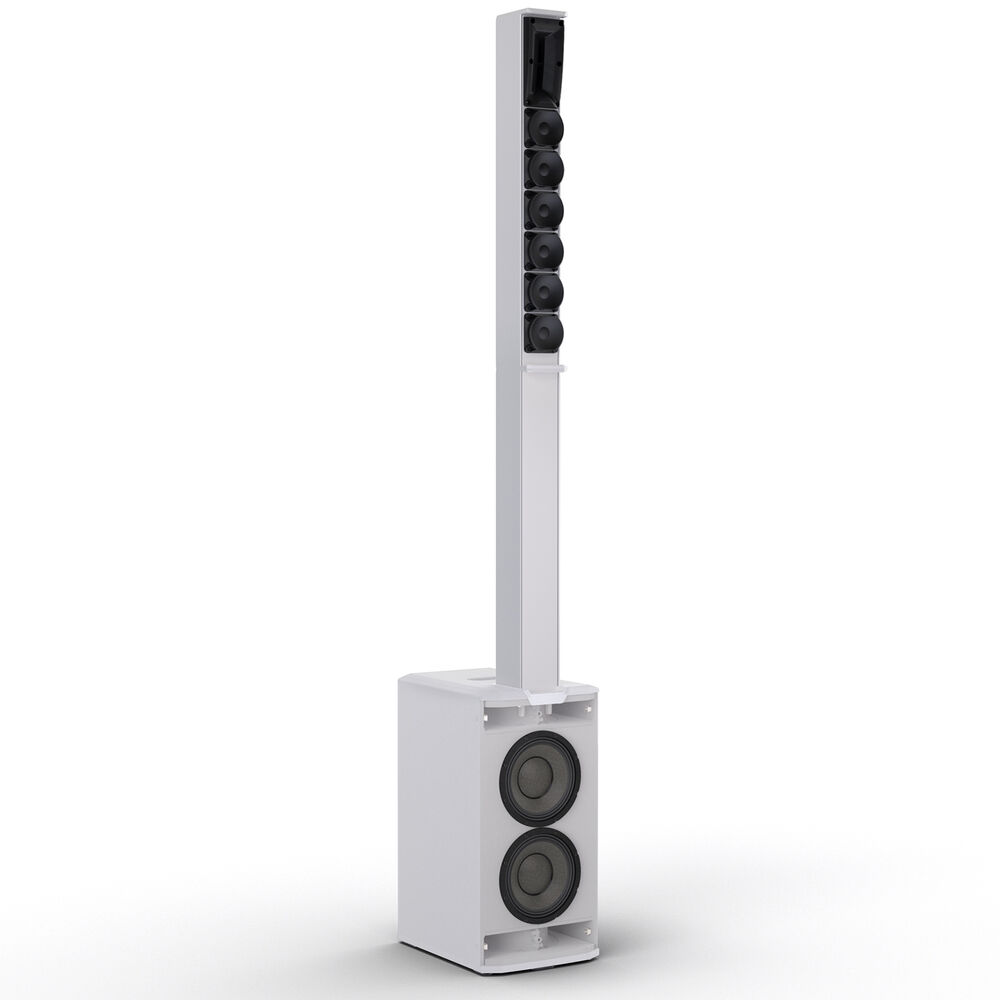

Speaker Component Specifications

High-Frequency Transducers (HF)

2x 12.70 mm (0.50") Horn-Loaded Tweeters with 25.40 mm (1.00") Voice Coils & Neodymium Magnets

Mid-Frequency Transducers (MF)

6x 88.90 mm (3.50") MF Drivers with 19.05 mm (0.75") Voice Coils & Ferrite Magnets

Low-Frequency Transducers (Subwoofer)

2x 203.20 mm (8.00") Woofer Drivers with 50.80 mm (2.00") Voice Coils & Ferrite Magnets

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

24-Bit / 48 kHz DSP Engine

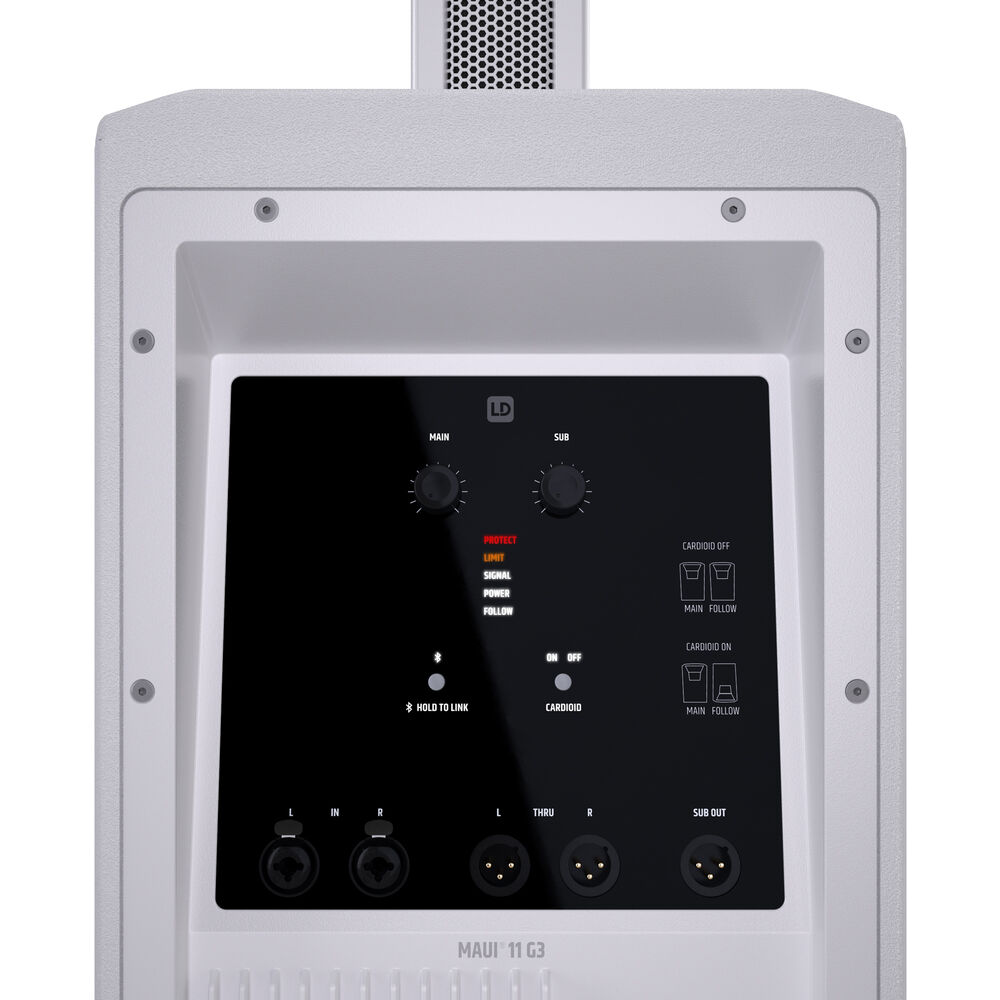

Audio Line Inputs & Outputs

Inputs: 2x XLR / 1/4" TRS Combo Balanced/Unbalanced Line Inputs;
Outputs: 2x XLR 3-Pin Balanced Line Thru Outputs, 1x XLR 3-Pin Balanced Subwoofer Output

Wireless Connectivity

Bluetooth 5.0 Wireless Technology

Power & Electrical Specifications

AC Mains Input Voltage

100 to 120 VAC, 50 / 60 Hz (T 3.15 A L 250 V Fuse) / 220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V Fuse)

Power Consumption

300 W Rated Power Consumption

Mains Connector

1x Standard IEC Mains Input Terminal

Dimensions & Weight Specifications

Top Column Array Dimensions (H×W×D)

1,460.00 mm x 135.00 mm x 103.00 mm (57.50" x 5.30" x 4.10")

Top Column Array Net Weight

10.21 kg (22.50 lbs)

Subwoofer Dimensions (H×W×D)

607.00 mm x 403.00 mm x 305.00 mm (23.90" x 15.90" x 12.00")

Subwoofer Net Weight

20.50 kg (45.20 lbs)

Total Assembled System Height

2,052.00 mm (80.80") Height

Total Assembled System Net Weight

30.71 kg (67.70 lbs)
