Key Specifications

Product / Accessory Type

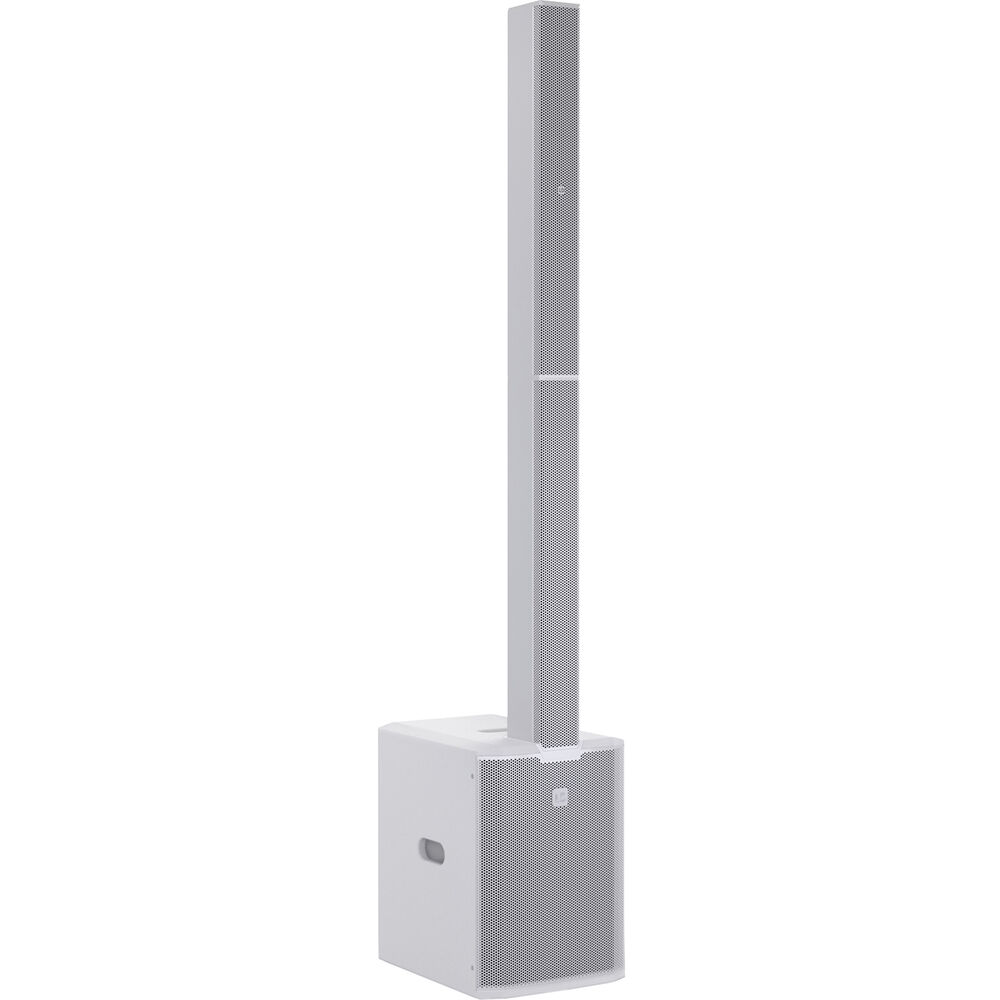

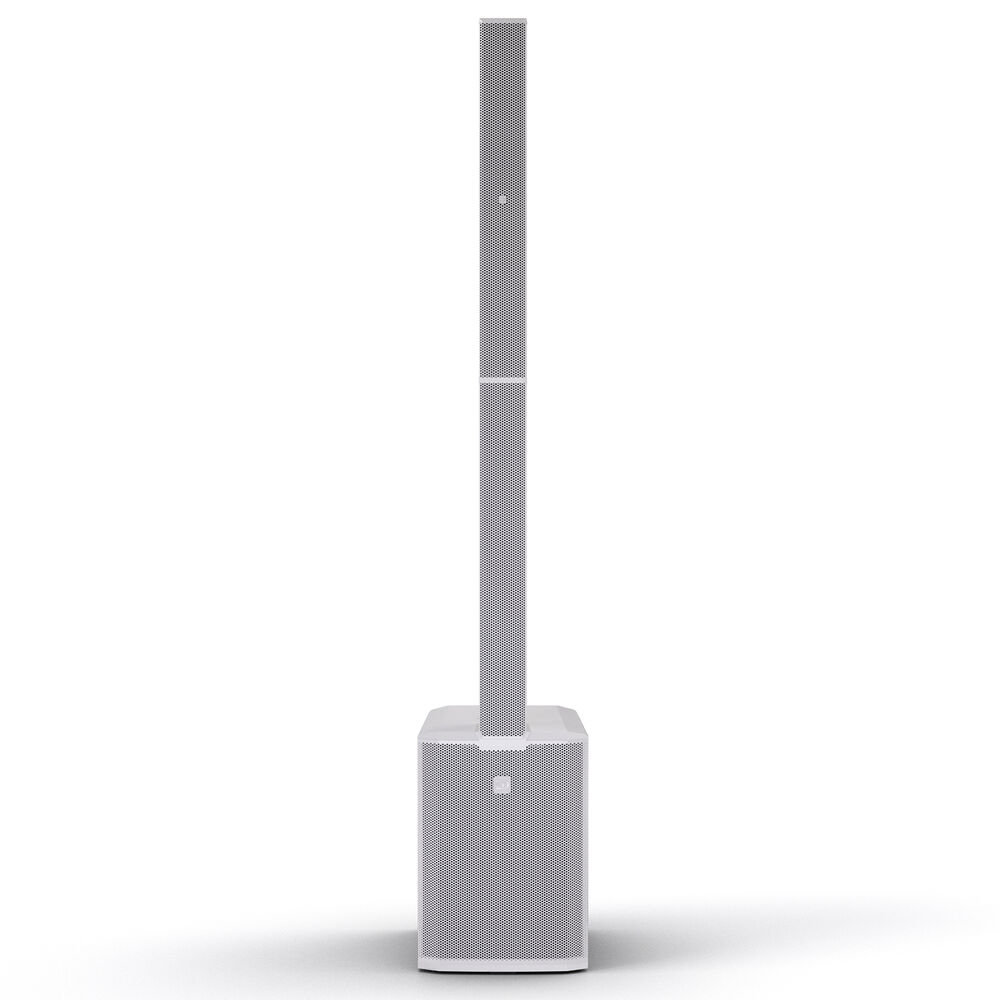

Active 3-Way Column Array Loudspeaker System with Subwoofer

Total Input Channels

2 Input Channels (2x Mono)

Enclosure Material & Construction

Plywood Subwoofer with Polyurethane Finish, Aluminum Top Column Array (Bass-Reflex Design)

Transport Handles

1x Top Carrying Handle (Subwoofer Cabinet)

Environmental Resistance

None

Acoustic & Electrical Performance Specifications

Amplifier Output Power

1,000 W Continuous RMS Output

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

127 dB Maximum SPL

Frequency Response

37 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

120° Horizontal x 30° Vertical

Amplifier Protection Systems

DC Fault, Output Limiter, Short Circuit Protection, Thermal Protection

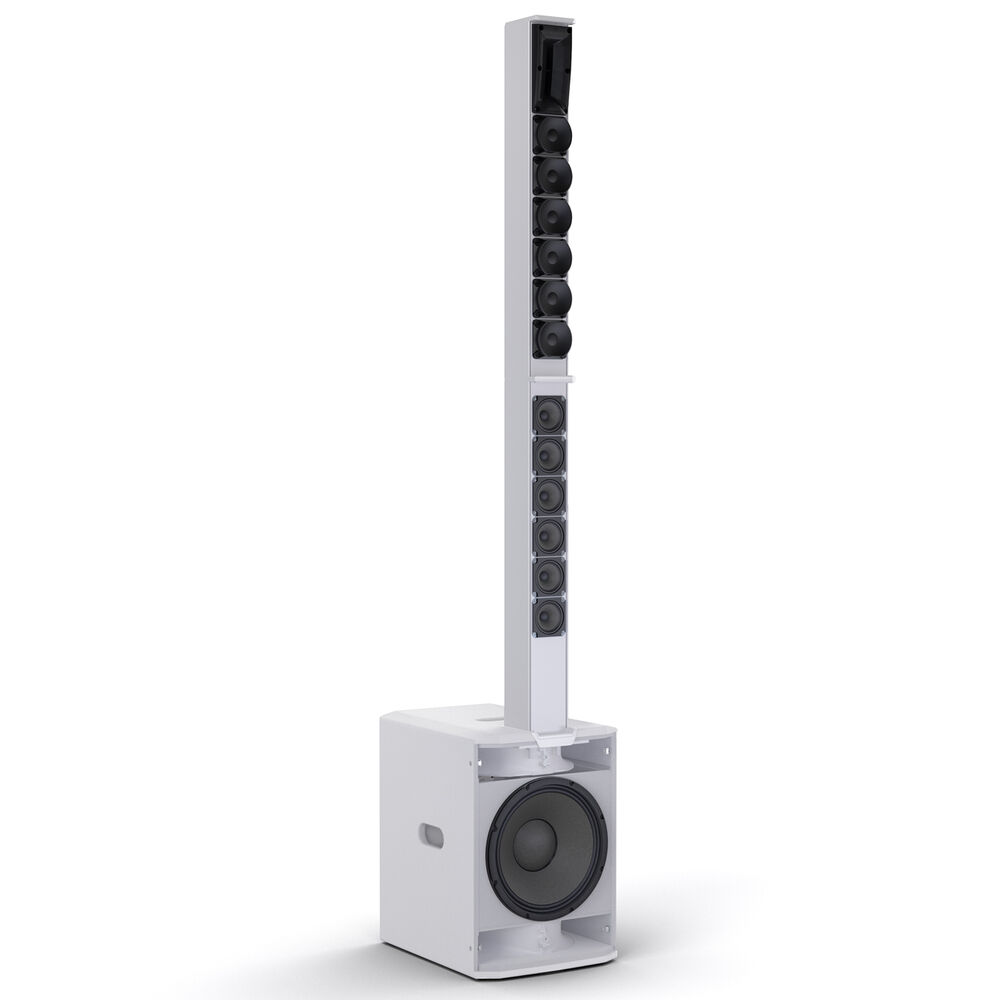

Speaker Component Specifications

High-Frequency Transducers (HF)

2x 12.70 mm (0.50") Horn-Loaded Tweeters with 25.40 mm (1.00") Voice Coils & Neodymium Magnets

Mid-Frequency Transducers (MF)

12x 88.90 mm (3.50") MF Drivers with 19.05 mm (0.75") Voice Coils & Ferrite Magnets

Low-Frequency Transducers (Subwoofer)

1x 304.80 mm (12.00") Woofer Driver with 76.20 mm (3.00") Voice Coil & Ferrite Magnet

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

24-Bit / 48 kHz DSP Engine with Integrated Multiband Output Limiter

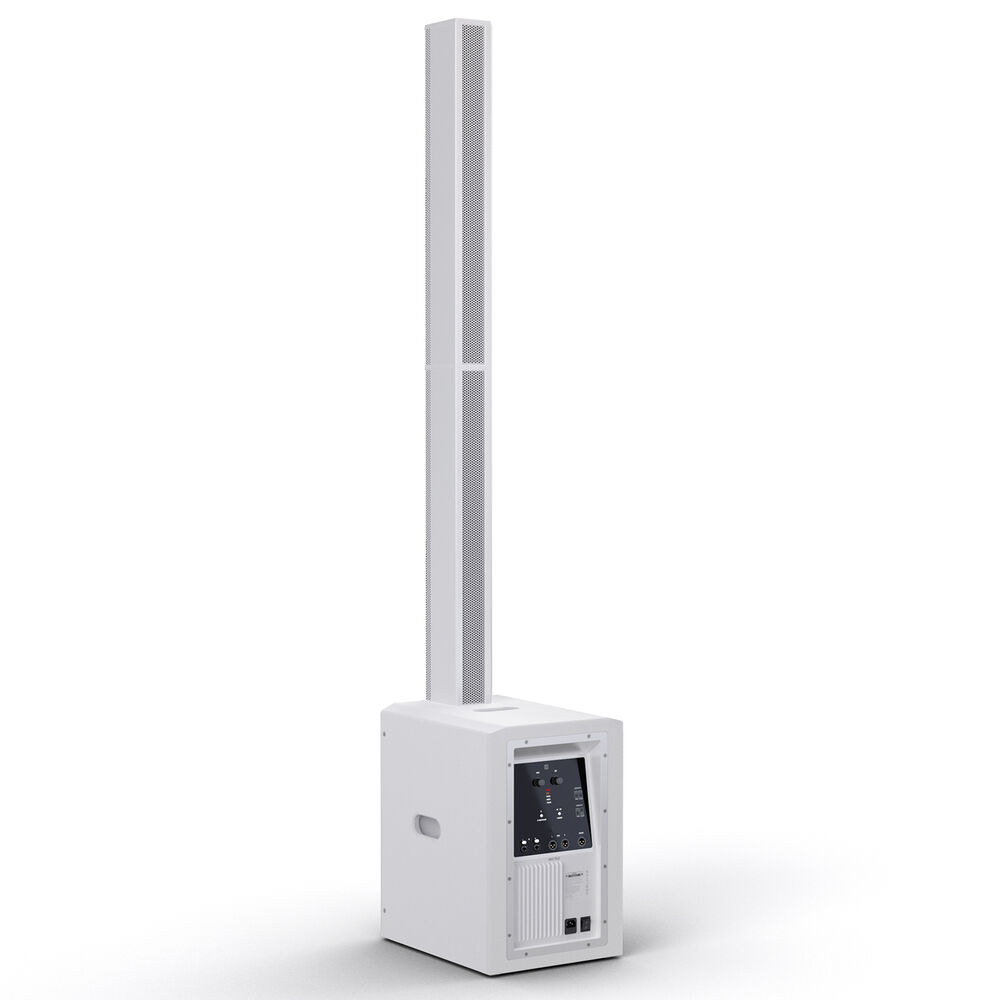

Audio Line Inputs & Outputs

Inputs: 2x XLR / 1/4" TRS Combo Balanced/Unbalanced Line Inputs;
Outputs: 2x XLR 3-Pin Balanced Line Thru Outputs, 1x XLR 3-Pin Balanced Subwoofer Output

Wireless Connectivity

Bluetooth 5.0 Wireless Technology

Power & Electrical Specifications

AC Mains Input Voltage

100 to 120 VAC, 50 / 60 Hz (T 5 A L 250 V Fuse) / 220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V Fuse)

Power Consumption

400 W Rated Power Consumption

Mains Connector

1x Standard IEC Mains Input Terminal

Dimensions, Weight & Packaging Specifications

Top Column Array Dimensions (H×W×D)

1,540.00 mm x 135.00 mm x 103.00 mm (60.60" x 5.30" x 4.10")

Top Column Array Net Weight

12.61 kg (27.80 lbs)

Subwoofer Dimensions (H×W×D)

527.00 mm x 472.00 mm x 370.00 mm (20.70" x 18.60" x 14.60")

Subwoofer Net Weight

22.82 kg (50.30 lbs)

Total Assembled System Height

2,052.00 mm (80.80") Height

Total Assembled System Net Weight

35.43 kg (78.00 lbs)

Package Shipping Weight

43.32 kg (95.50 lbs)

Packaging Box Dimensions (L×W×H)

889.00 mm x 876.30 mm x 482.60 mm (35.00" x 34.50" x 19.00")
