Key Specifications

Product / Accessory Type

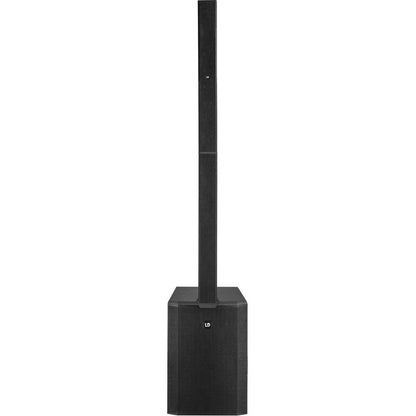

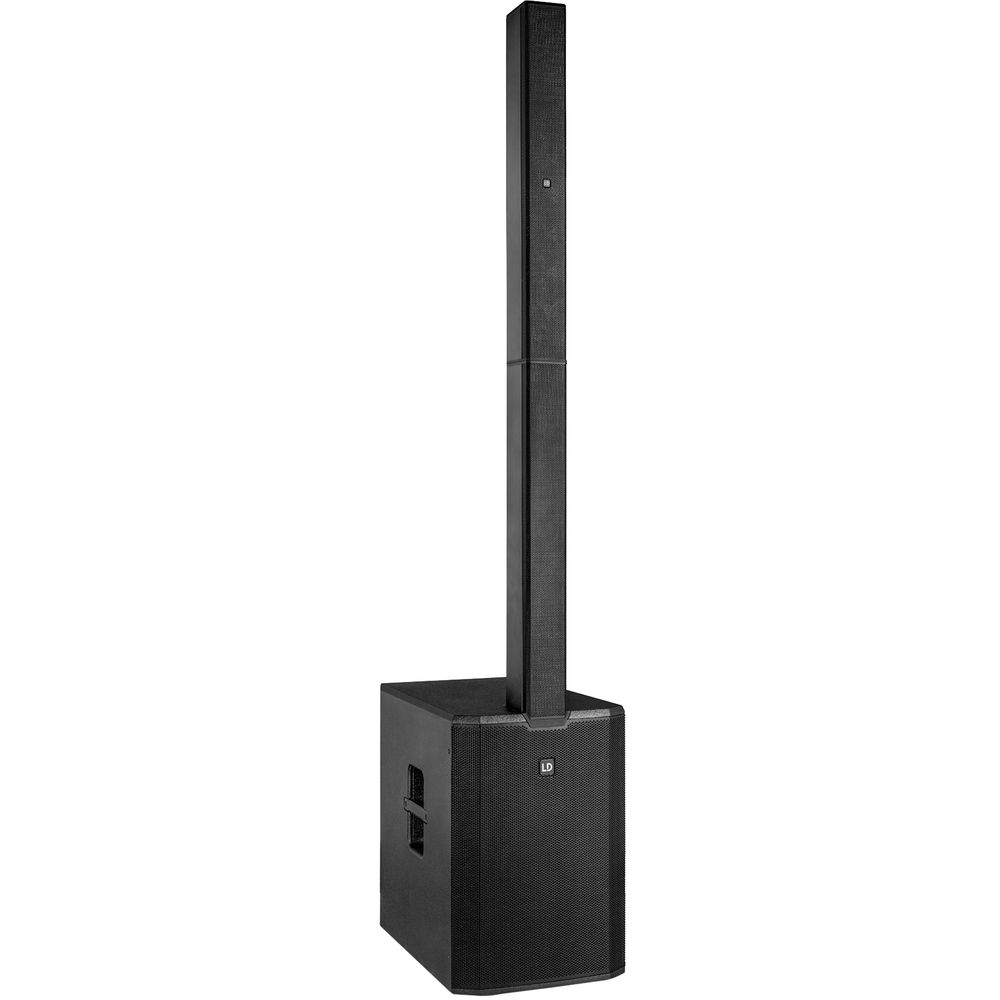

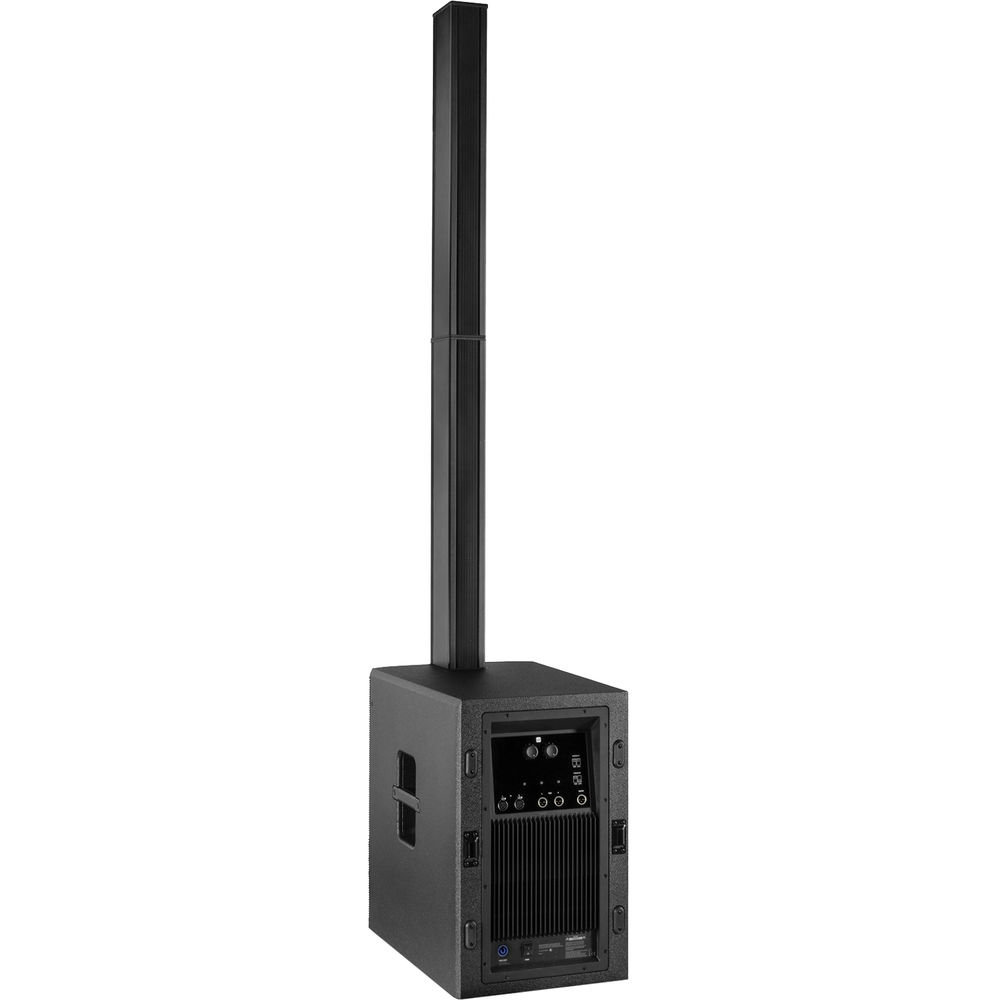

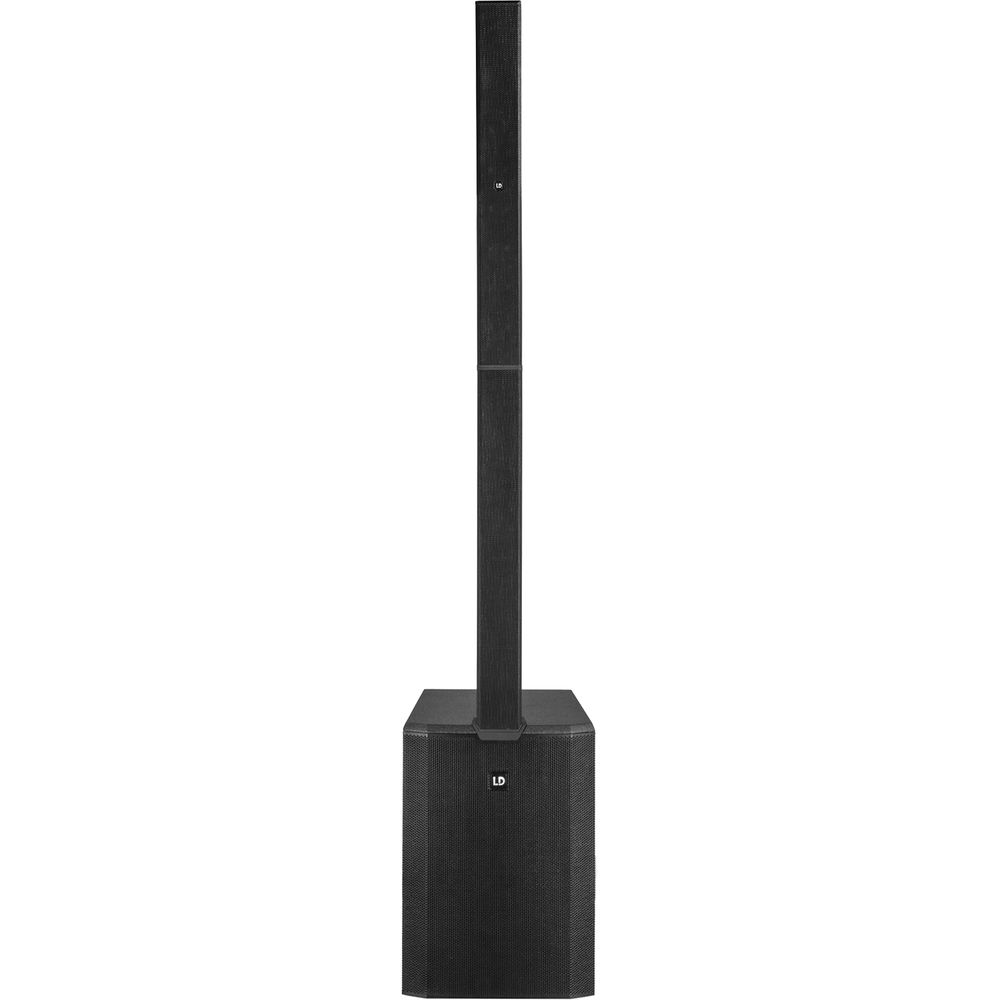

Active 2-Way Column Array Loudspeaker System

Total Input Channels

2 Input Channels

Enclosure Material & Construction

Plywood Subwoofer Enclosure with Metal Grille, Aluminum Top Column Array (Bass-Reflex Design)

Environmental Resistance

None

Acoustic & Electrical Performance Specifications

Amplifier Output Power

1,500 W Peak / Continuous Output

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

132 dB Maximum SPL

Frequency Response

37 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

120° Horizontal x 25° Vertical

Amplifier Protection Systems

DC Fault, Overcurrent Protection, Short Circuit Protection, Thermal Protection

Speaker Component Specifications

High-Frequency Transducers (HF)

4x 12.70 mm (0.50") HF Drivers with 25.40 mm (1.00") Voice Coils & Neodymium Magnets

Mid-Frequency Transducers (MF)

12x 88.90 mm (3.50") MF Drivers with 25.40 mm (1.00") Voice Coils & Neodymium Magnets

Low-Frequency Transducers (LF)

1x 381.00 mm (15.00") LF Subwoofer Driver with 101.60 mm (4.00") Voice Coil & Neodymium Magnet

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

24-Bit DSP Engine with Integrated Master EQ, Digital Effects & Dynamic Processing (Compression, Multiband Limiter)

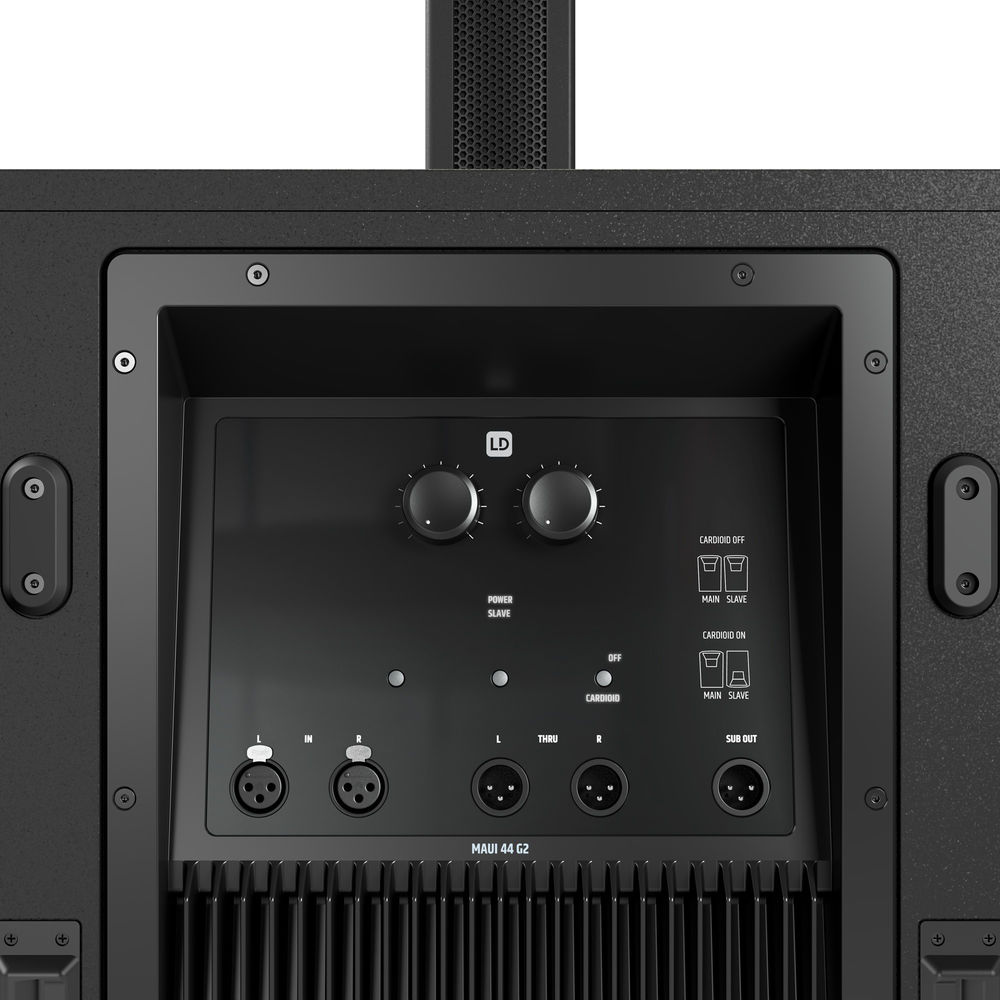

Audio Line Inputs & Outputs

Inputs: 2x XLR 3-Pin Mic / Line Inputs;
Outputs: 2x XLR 3-Pin Line Outputs

Wireless Connectivity

Bluetooth Wireless Technology

Power & Environmental Specifications

AC Mains Input Power

100 to 240 VAC, 50 / 60 Hz

Mains Connector

1x Neutrik powerCON Connector Terminal

Environmental Operating Conditions

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F);
Humidity: Up to 80% Relative Humidity (Non-Condensing)

Dimensions, Weight & Packaging Specifications

Top Column Array Dimensions (H×W×D)

1,621.00 mm x 135.00 mm x 103.00 mm (63.80" x 5.30" x 4.10")

Top Column Array Net Weight

11.20 kg (24.70 lbs)

Subwoofer Dimensions (H×W×D)

637.00 mm x 634.00 mm x 434.00 mm (25.08" x 24.96" x 17.09")

Subwoofer Net Weight

36.40 kg (80.20 lbs)

Total Assembled System Net Weight

47.60 kg (104.90 lbs)

Package Shipping Weight

49.90 kg (110.00 lbs)

Packaging Box Dimensions (L×W×H)

965.20 mm x 914.40 mm x 558.80 mm (38.00" x 36.00" x 22.00")
