Key Specifications

Product / Accessory Type

Active Full-Range Column Array Loudspeaker System

Overall System Design & Finish

White Finish; HD-Coated Aluminum Column Array with Multi-Layer Mesh Fabric, Birch Multiplex Subwoofer Enclosure

Subwoofer Enclosure Material & Thickness

15 mm Birch Multiplex (Bass-Reflex Enclosure Design)

Column / Satellite Housing

HD-Coated Aluminum (Closed Enclosure Design)

Cooling System

Convection Cooling (No Fan Noise)

Acoustic & Electrical Performance Specifications

Amplifier Output Power

2,800 W Peak Output / 1,400 W Continuous RMS

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

131 dB Peak SPL / 121 dB Continuous Average SPL

Frequency Response

42 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

140° Horizontal x 15° Vertical

Amplifier Protection Systems

Direct Current (DC), Multiband Limiter, Overheating Protection, Short Circuit Protection

Speaker Component Specifications

Low-Frequency Transducers (Subwoofer)

2x 254.00 mm (10.00") Custom Woofers with 76.20 mm (3.00") Voice Coils & Neodymium Magnets

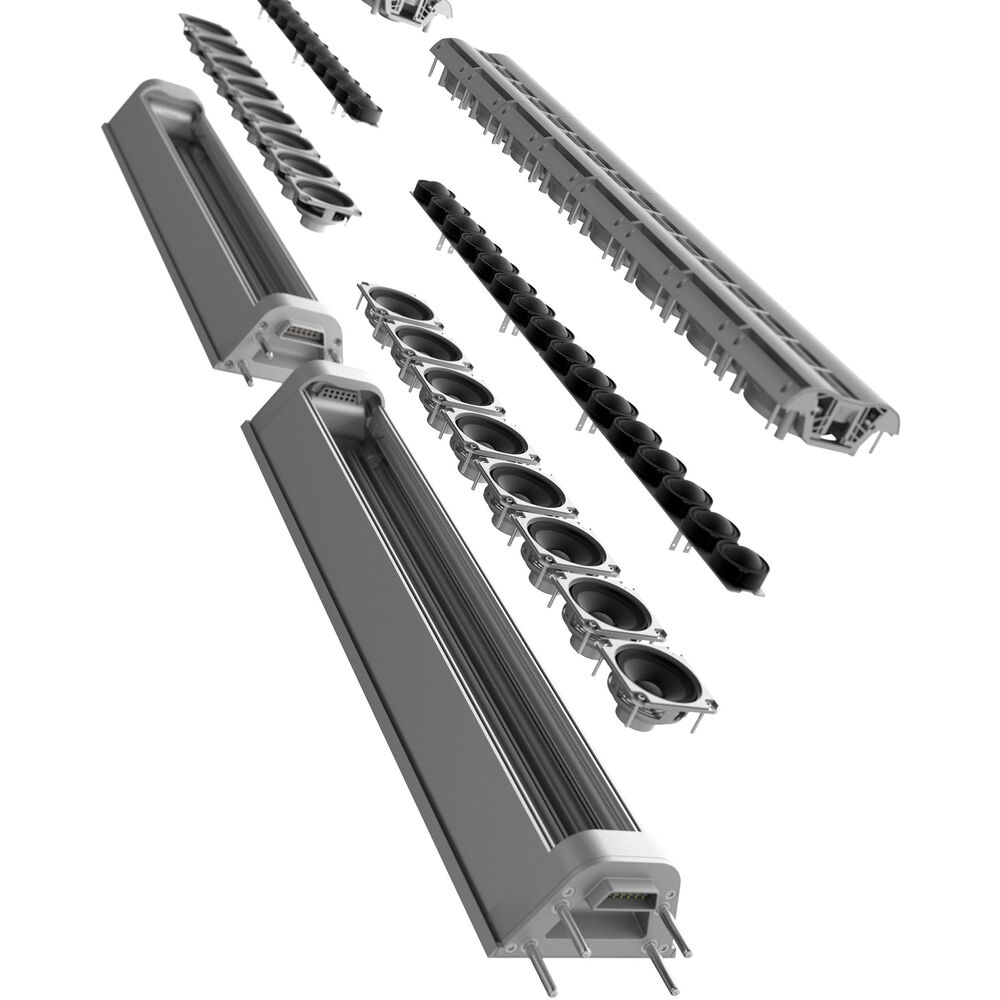

Mid-Range Transducers (Column)

16x 71.12 mm (2.80") Custom Drivers with 19.05 mm (0.75") Voice Coils & Neodymium Magnets

High-Frequency Transducers (Tweeters)

32x 25.40 mm (1.00") Softdome Tweeters with WaveAhead® / SonicGuide® Technology & Neodymium Magnets

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

DynX® DSP Engine (> 106 dB Signal-to-Noise Ratio)

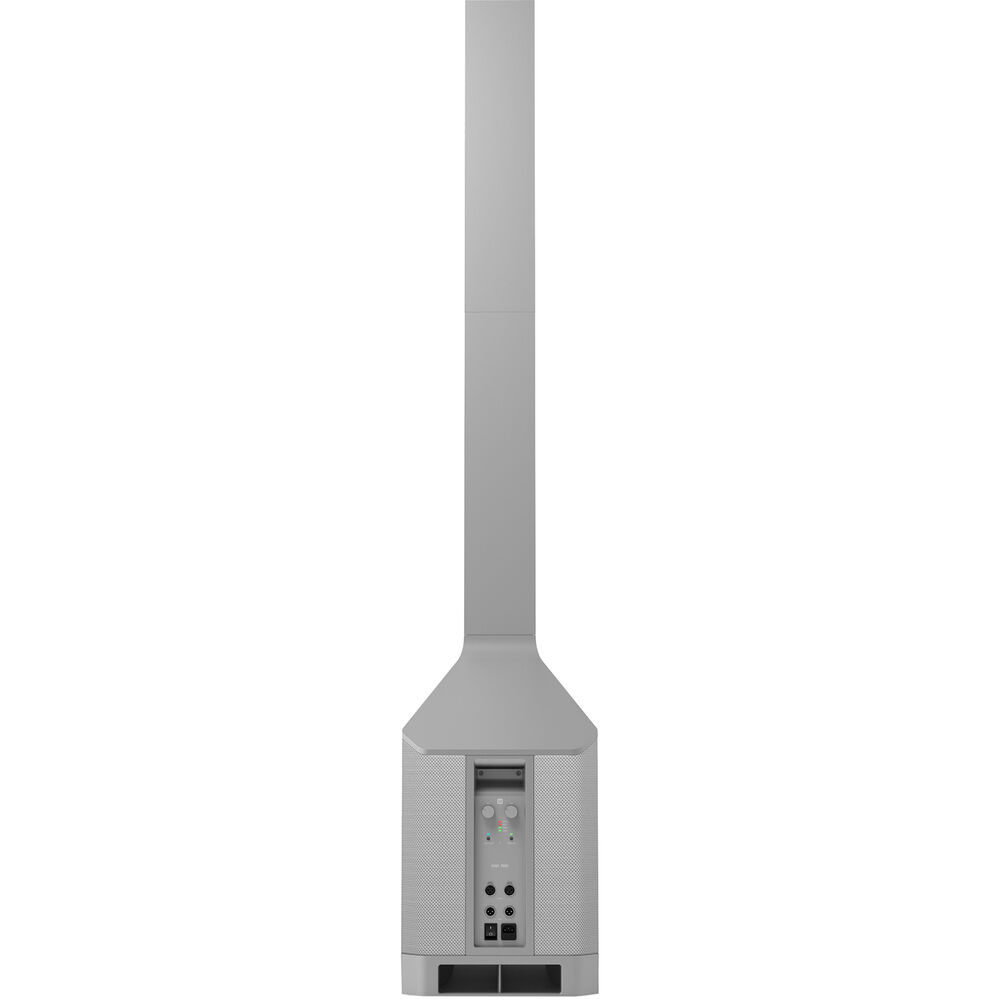

Audio Line Inputs & Outputs

Inputs: 2x Balanced XLR 3-Pin Female;
Outputs: 2x Balanced XLR 3-Pin Male

Wireless Connectivity & Codecs

Bluetooth 4.2 (Up to 100 m / 328 ft Range);
Features: True Wireless Stereo (TWS), Dedicated App Control;
Supported Codecs: AAC, aptX™, SBC

Power & Electrical Specifications

Power Supply Unit Type

Switched-Mode Power Supply (SMPS)

Operating AC Mains Voltage

100 to 120 VAC, 50 / 60 Hz / 220 to 240 VAC, 50 / 60 Hz

Power Consumption

1,000 W Rated Power Consumption / 11 W Standby Power

Mains Connector

IEC C14 Male Inlet Plug Terminal

Environmental Operating Limits

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Limits

Up to 80% Relative Humidity (Non-Condensing)

Dimensions & Weight Specifications

Column / Satellite Array Dimensions (W×H×D)

157 mm x 1,428 mm x 91 mm (6.18" x 56.22" x 3.58")

Column / Satellite Array Weight

15.40 kg (33.95 lbs)

Subwoofer Dimensions (W×H×D)

400 mm x 745 mm x 470 mm (15.75" x 29.33" x 18.50")

Subwoofer Weight

30.60 kg (67.46 lbs)

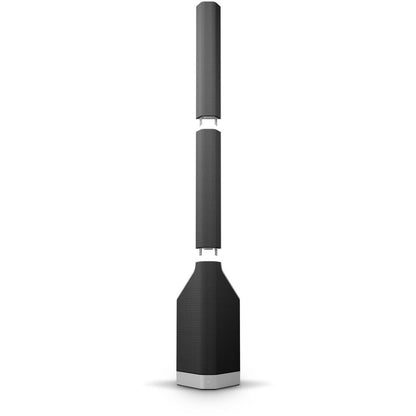

Total Assembled System Dimensions (W×H×D)

400 mm x 2,173 mm x 470 mm (15.75" x 85.55" x 18.50")

Total Assembled System Net Weight

46.00 kg (101.41 lbs)
