Key Specifications

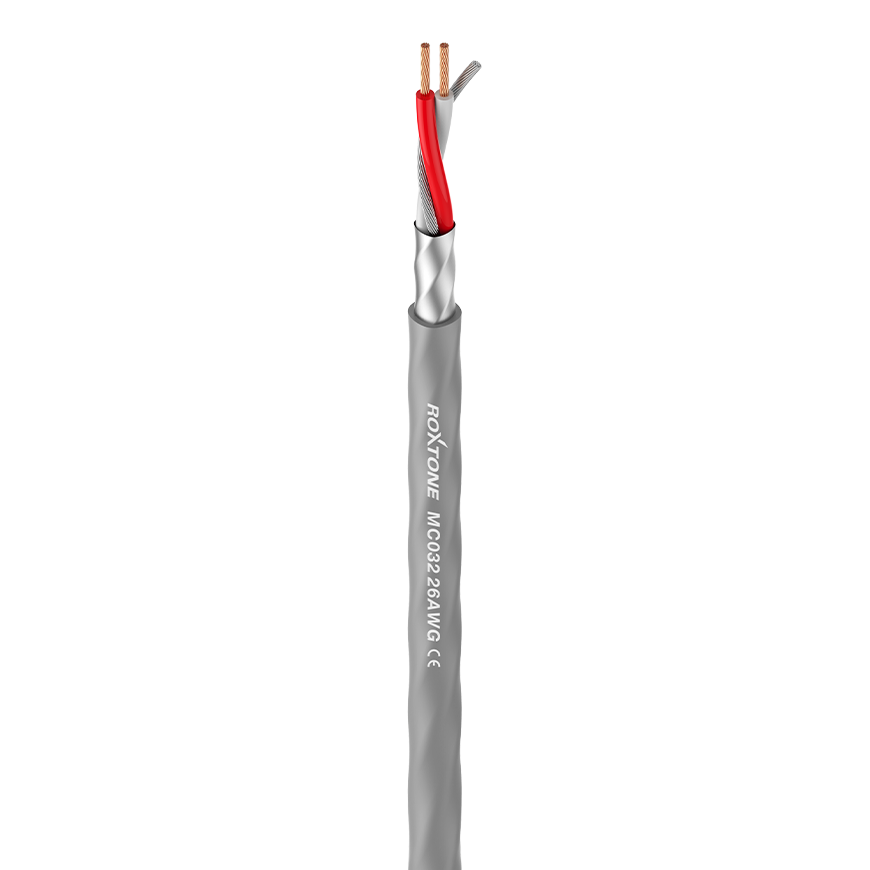

Product Code

MC032

Jacket Diameter

PVC 3.3 mm

AWG

26

No. of Inner Conductors

2 x 0.18 mm²

Copper Strand per Conductor

16 x 0.12 mm

Conductor Insulation

LLDPE 1.20 mm

Drain Wire

25 x 0.12 mm Tin copper

Shielding

AL fleece

Shielding Factor

100%

Temperature Range

Min. -20°C / Max. +70°C

Packaging

100/300 m roll

Electrical Data

Capac. Cond./Cond. (per 1 m)

65 pF

Capac. Cond./Shield. (per 1 m)

134 pF

Cond. Resistance (per 1 km)

97.5 mΩ

Shield. Resistance (per 1 m)

56.2 mΩ
