MC2
MC2
KEVLER
UNIT: PIECE/S
Product Code: SKU:KVLR-MC2-CHN-436
Key Features

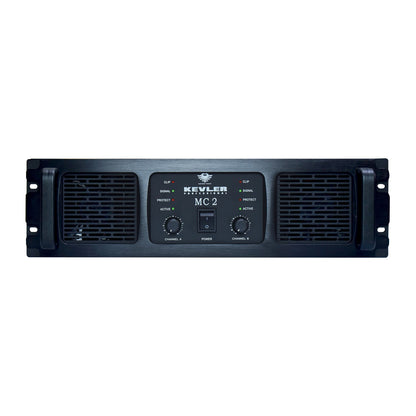

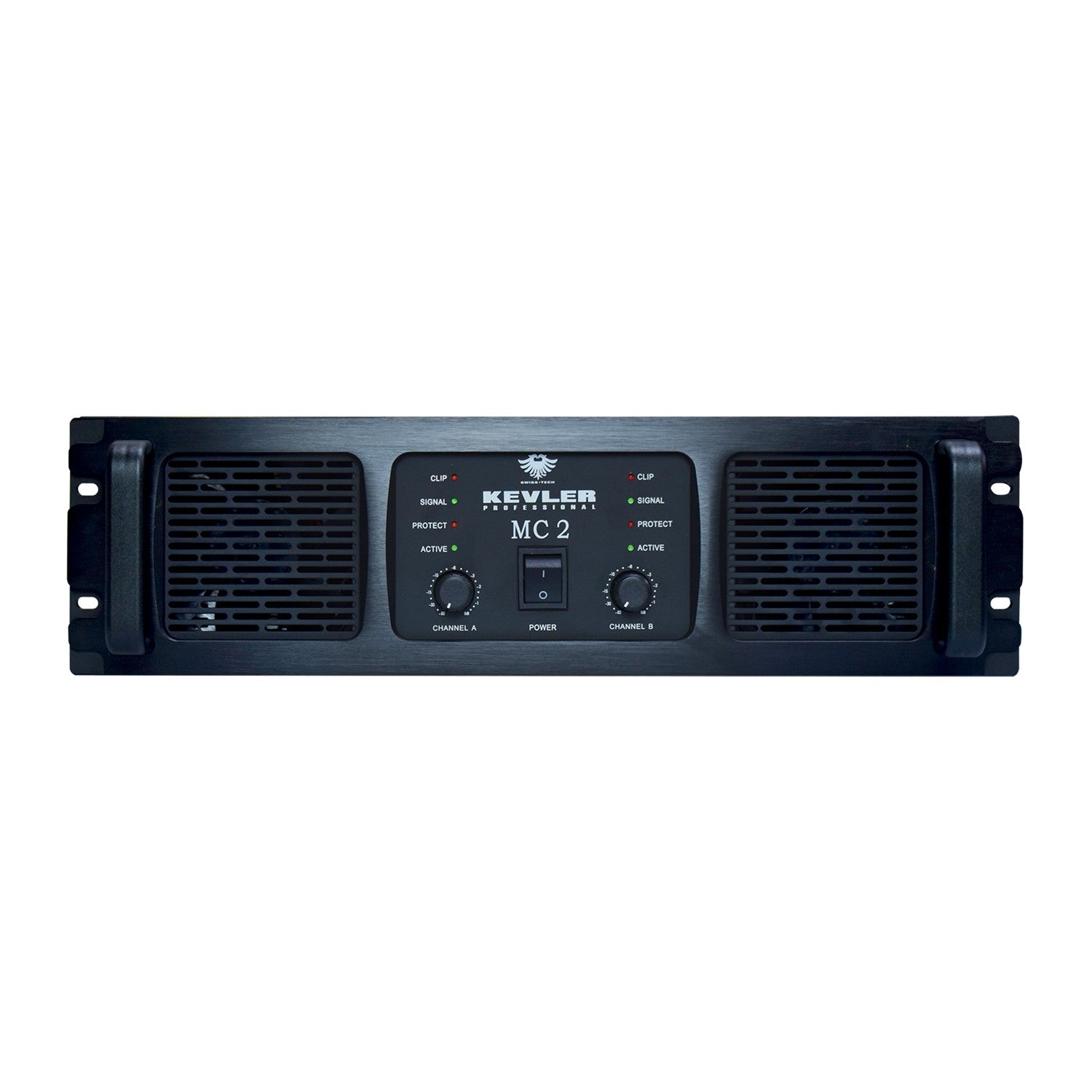

KEVLER MC2
KEVLER MC2
|
Key Specifications |
|
|
Stereo Power @ 8Ω |
2 × 1500W |
|
Stereo Power @ 4Ω |
2 × 2300W |
|
Stereo Power @ 2Ω |
2 × 3000W (Ultra-High Current) |
|
Bridge Mono Power |
4600W @ 8Ω / 6000W @ 4Ω |
|
Amplifier Topology |
Class AB |
|
Reference-Grade Audio Performance |
|
|
Signal to Noise Ratio |
105 dB |
|
Slew Rate |
80v/µs (Instantaneous Dynamics) |
|
Damping Factor |
680:1 (Absolute Cone Discipline) |
|
THD |
≤0.01% Rated Power @ 8 Ω 1 kHz |
|
Frequency Response |
±0.1 dB, 20 Hz – 20 kHz |
|
Connectivity & Protection |
|
|
Input Sensitivity |
0.775V |
|
Input Impedance |
20kΩ (Bal) / 10kΩ (Unbal) |
|
Protection Circuitry |
Peak Limit, DC, Overcurrent, Short Circuit, Boot Up |
|
LED Indicators |
Signal, Clip, Protect, Active |
|
Physical & Electrical |
|
|
Net Weight |
37.5 kg (82.7 lbs) |
|
Power Supply / Fuse |
220V / 60Hz (T25A) |
|
Dimensions (mm) |
483 (W) × 540 (D) × 140 (H) |
KEVLER MC2 Accessories
- No accessories available.
