Key Specifications

Power Source

24 V DC
M3 screw terminal or DC socket connector

Current Consumption

350 mA

Receiving Frequency

87.5 - 108 MHz (50 kHz step)

Frequency Response

20 - 20 kHz, ±3 dB

Audio Input

USB port for memory stick (up to 32 GB, Type file: MP3 file)
SD card slot (up to 32 GB, Type file: MP3 file)
FM antenna terminals
Bluetooth

Audio Output

RCA audio output L and R channels for PRIORITY
RCA audio output L and R channels for TUNER
RCA audio output L and R channels for USB/SD/BLUETOOTH

Control Input

Play track 1 - 3, Play All, STop:
No-voltage make contact input, open voltage: 24 V DC, Short circuit current: Under 5 mA, Removable terminal block

Channels of Memory

30 Channels in total for FM broadcasts

Indicator

LCD Display Light Blue
3 LED Indicator Light Green

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90 % RH (no condenstation)

Finish

Front Panel: Aluminum, Black, Anodize
Case: Steel Plate, Black, Painting

Dimensions

482 (W) × 44 (H) × 229.5 (D) mm (18.97" × 1.73" × 9.03")

Weight

2.1 kg

Included Accessories

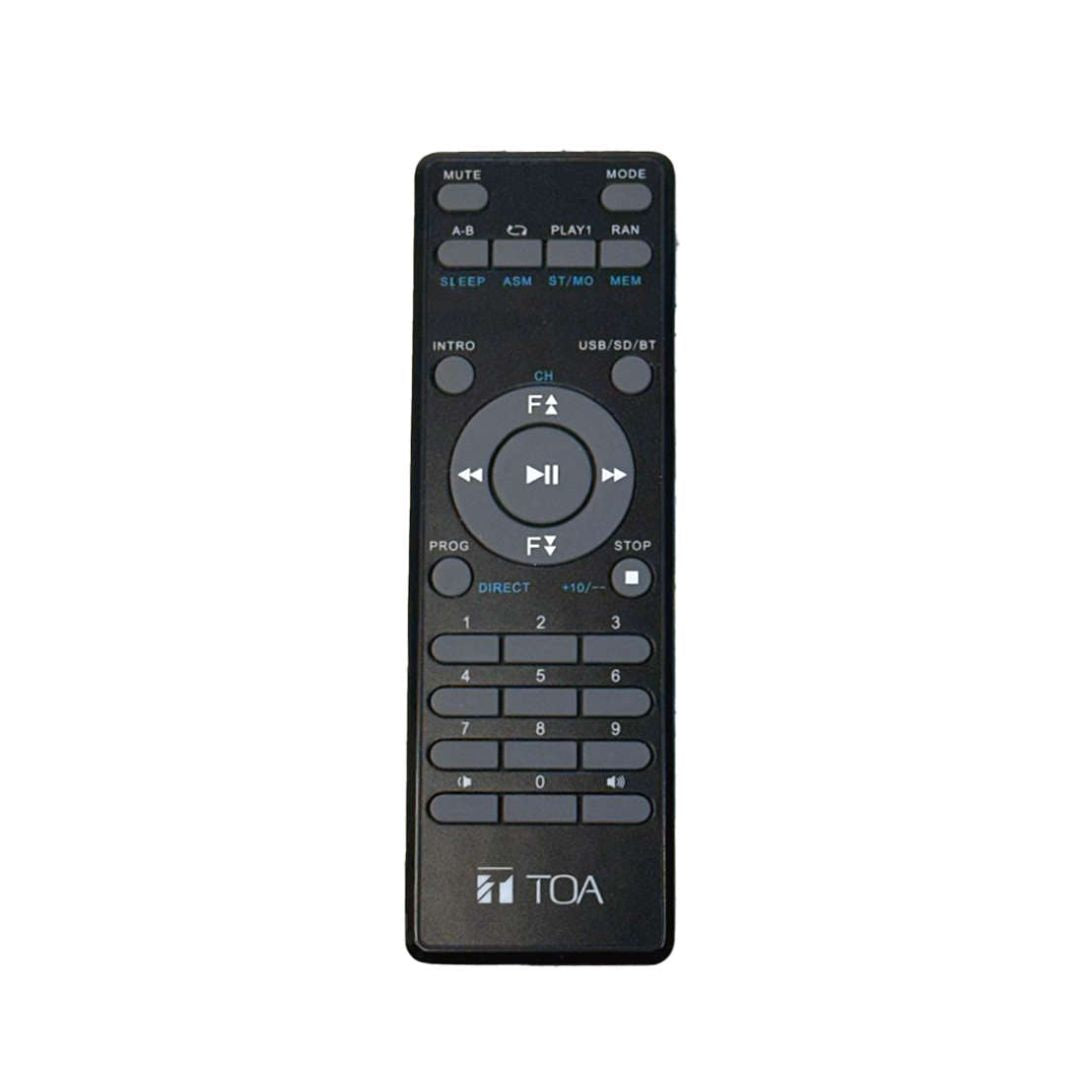

Remote Control × 1
Antenna FM Radio × 1
Removable terminal plug (2 pins) × 1
Removable terminal plug (3 pins) × 2

Optional Accessories

AC/DC Adapter: AD-246
