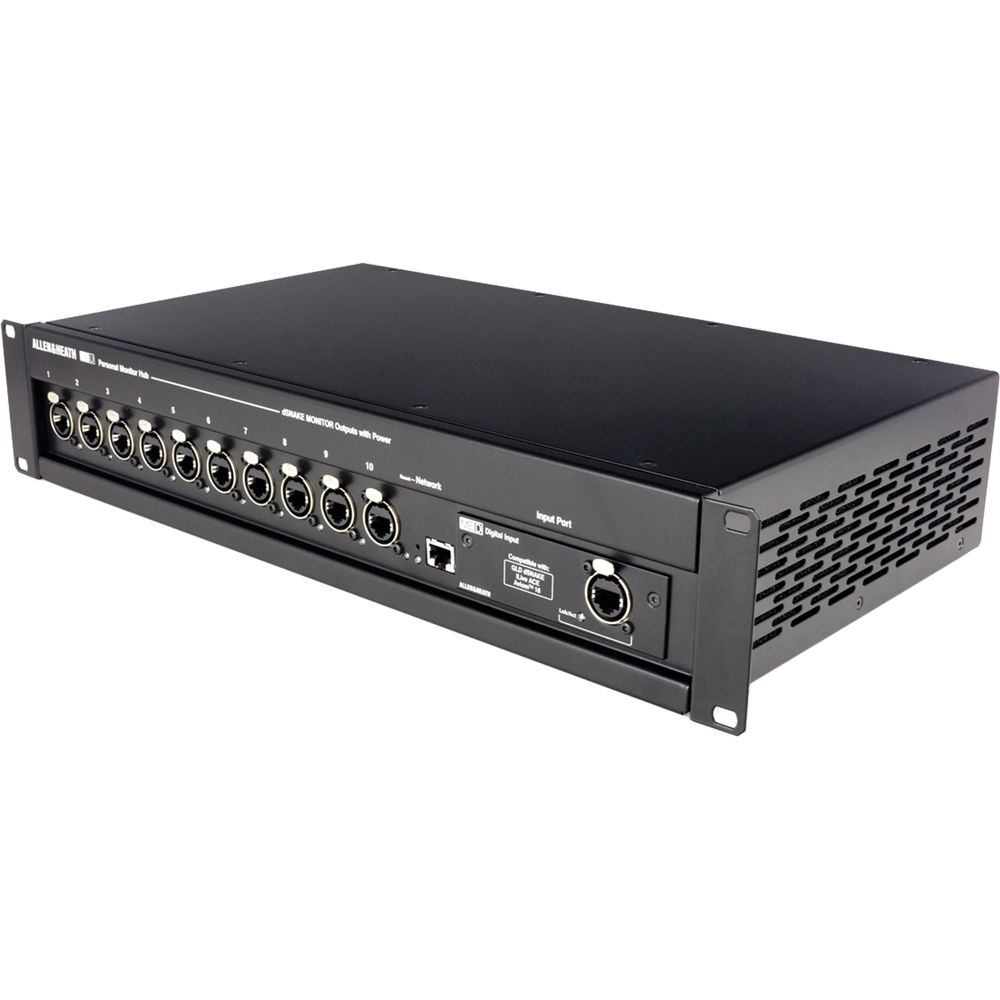

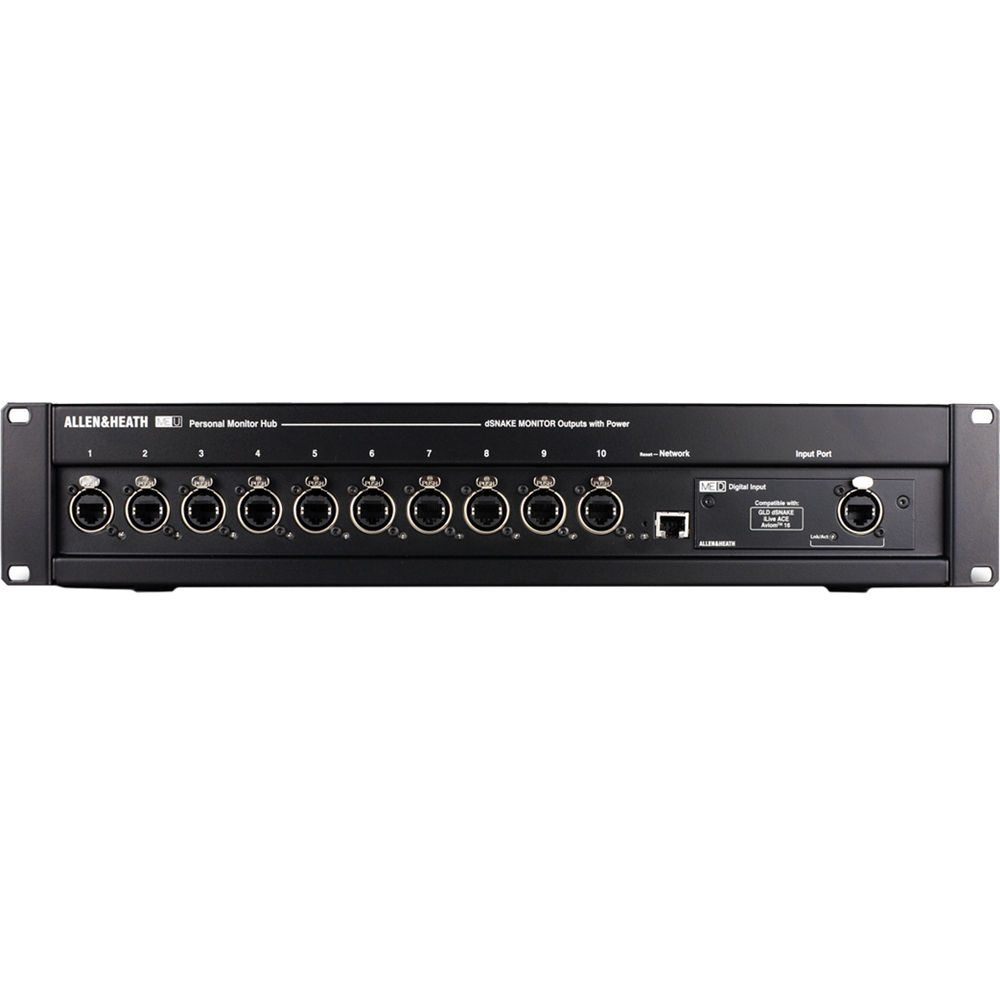

Allen & Heath's ME-U 10-Port Monitor Hub for ME-1 is a touring-grade, 10-port PoE hub providing power and audio to connect multiple ME-1 personal mixers. It comes with a standard input card to interface with dSNAKE (GLD & Qu mixers), iLive ACE or Aviom A-Net, which can be replaced with an optional MADI, Dante or EtherSound card to take a digital feed of up to 40 sources from third-party systems.
10 ports with locking EtherCon connectorsDaisy chain for more outputs - up to 19 ME-1s with 2 hubsEach port provides power + 40 audio sources to connected ME-1sTouring-grade build quality2U rack or desk mountingMulti-purpose Network port• Connect PC or Mac for web page setup of unit name and IP address, and manual entry of channel names• Connect iLive AH-Net network to pick up channel names automatically from an iLive system
ALLEN&HEATH ME-U
Key Specifications
Input
Card option slot, 40 channels
48 kHz digital audio
ME-D (dSNAKE, ACE, Aviom) card provided
Aviom A-Net16 compatible, 16 channels
M-Dante network card option available
M-MADI card option available
M-ES EtherSound card option available
Output
10 ports
Compatible with ME mixers
Locking EtherCon connectors
PoE available on all output ports
Network
Port: Ethernet TCP/IP
System setup and receiving iLive channel data
Setup
Uses PC or Mac web browser
Received or manual channel names
Received or manual odd/even stereo links
iLive mode for receiving iLive names/links
Change TCP/IP address
IP Addresses
Default: 192.168.1.40
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
Power
100-240 V AC, 47-63 Hz, 250 W
PoE Capable Ports: 15 W at each ME-U output
Dimensions
19 x 10 x 3.6" (483 x 253 x 92 mm)
Weight
10.1 lb (4.6 kg)
Packaging Info
Package Weight: 13 lb
Box Dimensions (L x W x H): 22.8 x 14.9 x 9.6"
