Key Specifications

System Model

Megasys 1 (Complete Column System)

Total Amplifier Power

2000W Continuous | 8000W Peak (Class D)

Maximum SPL @ 1m

134 dB

System Frequency Response

40 Hz – 20 kHz (-10 dB)

Megasys 1 SUB (Active Subwoofer)

Subwoofer Driver

15" High-Excursion Woofer

Amplifier Output

1000W (Sub) + 500W+500W (Satellites) Continuous

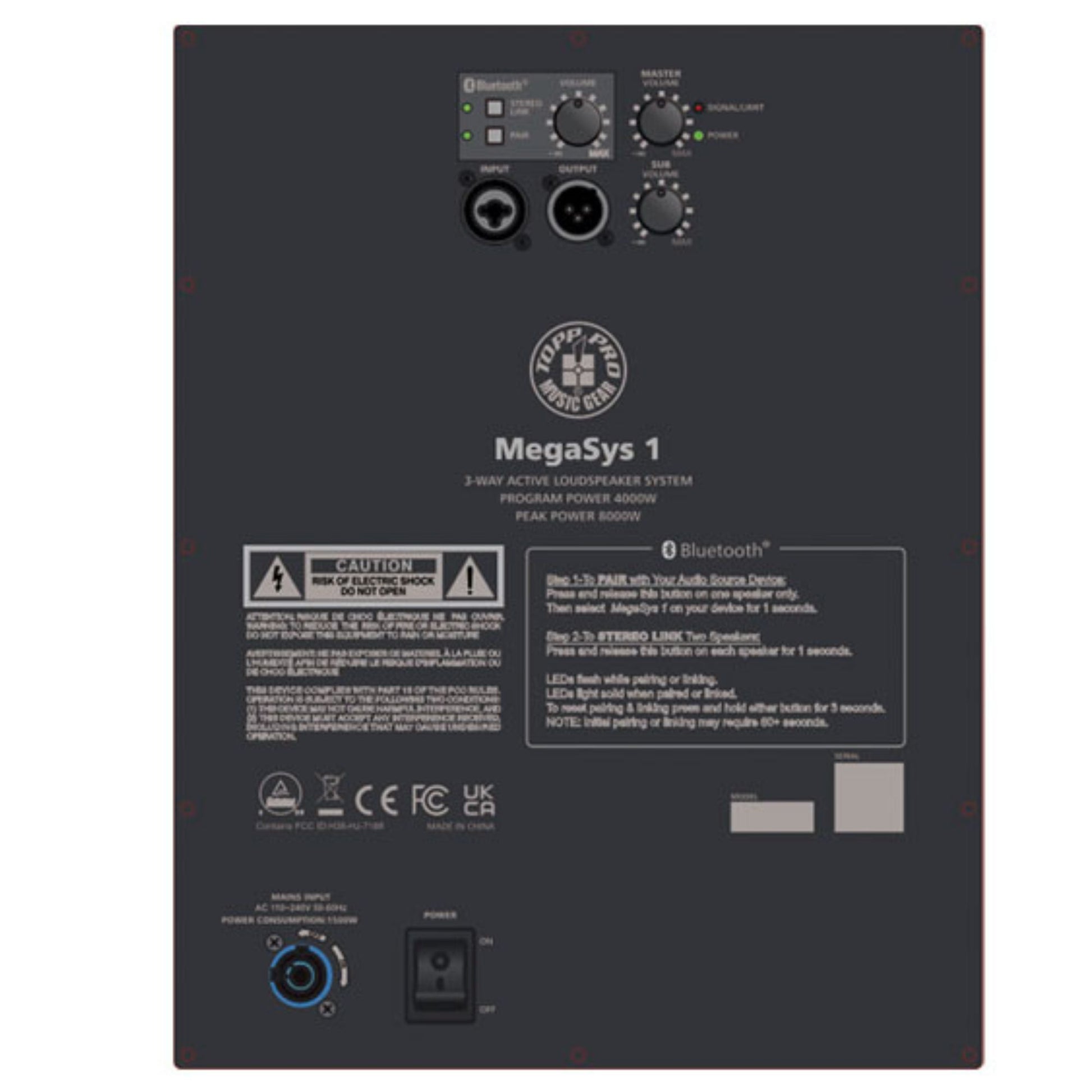

Connectivity

XLR/TRS Combo In, Bluetooth TWS Link

Enclosure

Plywood with Smart Mounting connection

Megasys 1 TP / BM (Satellite Columns)

TP Configuration

6 x 3.5" Woofers + 5 x 1" Neodymium Drivers

BM Configuration

6 x 3.5" Full Range Woofers

Satellite Power Handling

180W Continuous / 720W Peak (per module)

Horizontal Dispersion

120° (Ultra-wide coverage)

Physical Specifications

Total System Height

2170 mm (85.43")

Total System Weight

48 kg (105.8 lbs)
