MES 100

Designed for the ACT-BUS system, capable of simultaneously monitoring ACT-700 / ACT-800 / ACT-500 receivers and MI-909T / MI-58T / MI-58TD transmitters.
Converts monitoring data into a standard HTML5 web interface for intuitive operation without additional software installation.
Supports both wired and WiFi connections, compatible across Windows, iOS, Android, and Linux platforms.
Allows multiple device connections for centralized management and fast parameter configuration.
Provides USB or RS-232 adapter and connects to receivers via RJ-11 interface for simple and flexible installation.

MIPRO

₱17,000.00 VAT INC.

₱17,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-MES100-CHN-667

Designed for the ACT-BUS system, capable of simultaneously monitoring ACT-700 / ACT-800 / ACT-500 receivers and MI-909T / MI-58T / MI-58TD transmitters.
Converts monitoring data into a standard HTML5 web interface for intuitive operation without additional software installation.
Supports both wired and WiFi connections, compatible across Windows, iOS, Android, and Linux platforms.
Allows multiple device connections for centralized management and fast parameter configuration.
Provides USB or RS-232 adapter and connects to receivers via RJ-11 interface for simple and flexible installation.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

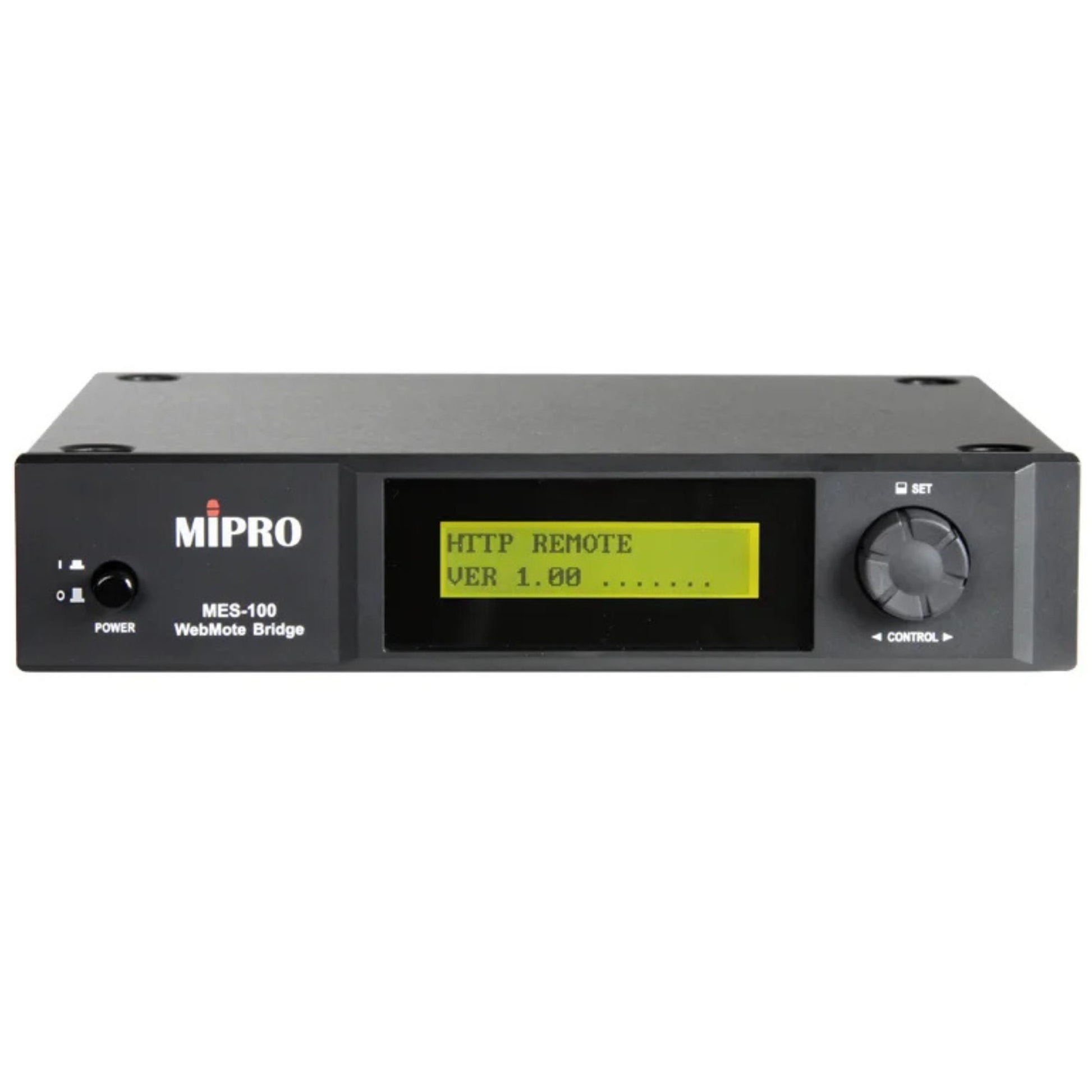

MIPRO MES 100

Key Specification
Model	MES-100
Name	WebMote Bridge
Functions	Converts ACT-BUS data into web-based remote monitoring for enhanced transmission efficiency
Accessories	USB or RS-232 connector
Connecting Interface	RJ-11 connector (ACT-BUS)
Network Interface	RJ-45 Ethernet (10/100 Mbps)
Power Input	DC 12 – 15 V; External AC 100 – 240 V switching power supply
Power Output	DC 12 V / 0.5 A (× 4)
Dimensions (W × H × D)	210 × 44 × 162 mm
Weight	Approx. 840 g
