Key Specifications

Frequency Response (-10 dB)

80 Hz - 22000 Hz

Max SPL @ 1m / 4m

105 dB / 93 dB

Coverage Angle (H x V)

100° x 160°

System Sensitivity

88 dB (1W @ 4m: 76 dB)

Power Section

Power Handling

40 W (RMS), 160 W (Peak)

Nominal Impedance

8 Ω

Constant Voltage Transformer

70/100 V

Power Selection (100V Taps)

40 W, 20 W, 10 W, 5 W, 2.5 W

Crossover Frequency

2500 Hz

Recommended Amplifiers

DMA 504, DMA 162, DMA 82, DMA 162P, DXT 3000, 4000, 7000

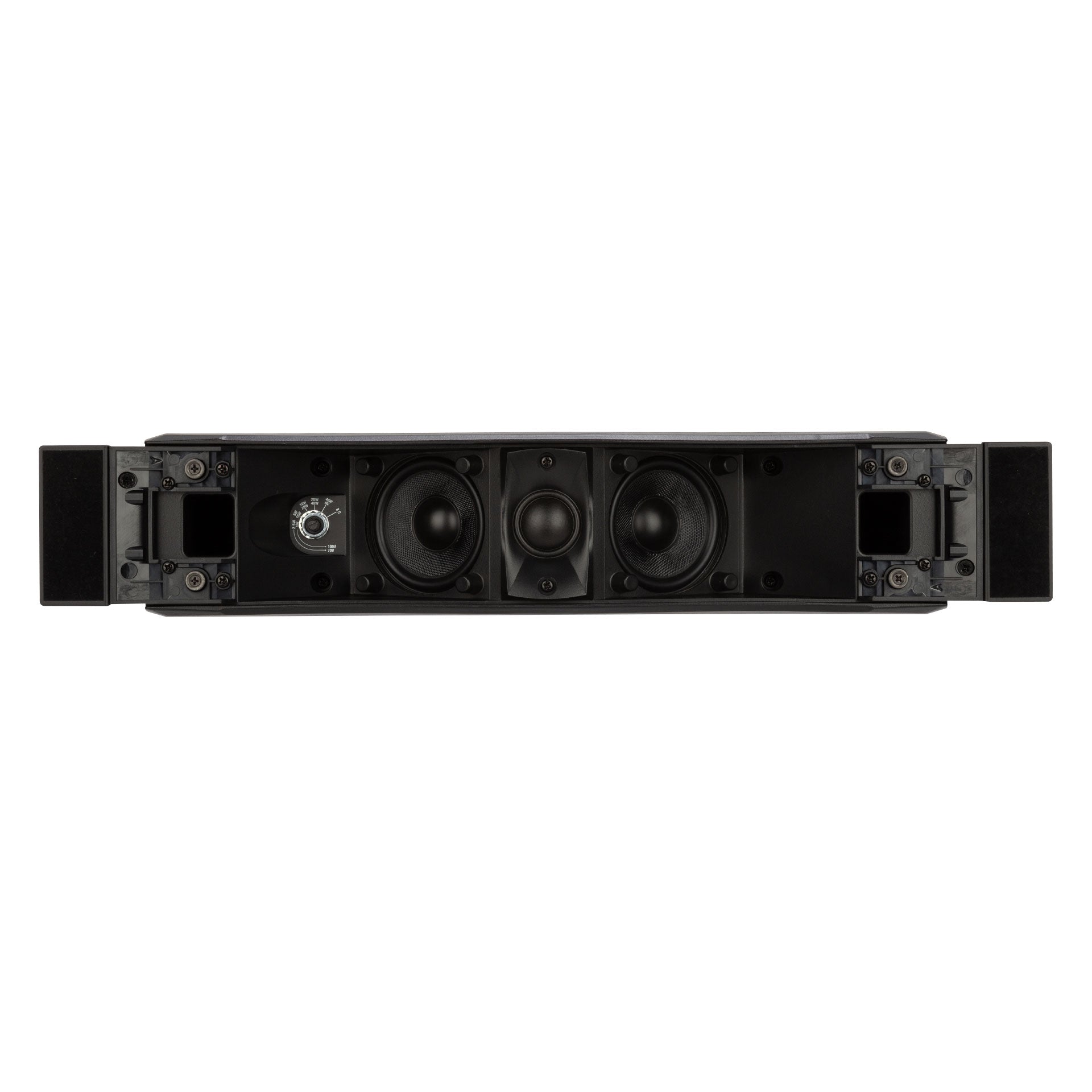

Transducers

Dome Tweeter

1 x 1.0'' neodymium, 1.0'' v.c.

Woofer

2 x 3.0'', 1.0'' v.c.

Standard Compliance

Safety Certifications

CE compliant, EN54-24 certified

CPR Number

0068/CPR/057-2019

Physical Specifications

Cabinet Material

ABS

Color

Black - RAL 9005

Dimensions (H x W x D)

516 x 94 x 181 mm / 20.31 x 3.7 x 7.13 inches

Recessed Depth

178 mm / 7.01 inches

Weight

3.4 kg / 7.5 lbs

Shipping Information

Package Dimensions

186 x 596 x 276 mm / 7.32 x 23.46 x 10.87 inches

Package Weight

7 kg / 15.43 lbs
