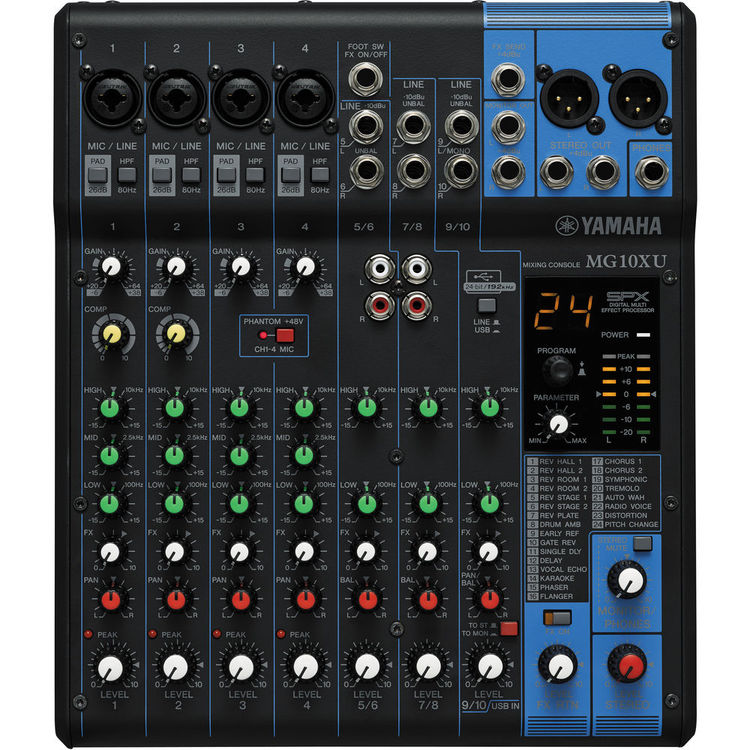

Key Specifications

Built-in Effects

SPX Algorithm: 24 Programs

Phantom Power

+48 V Switchable, Channels 1–4

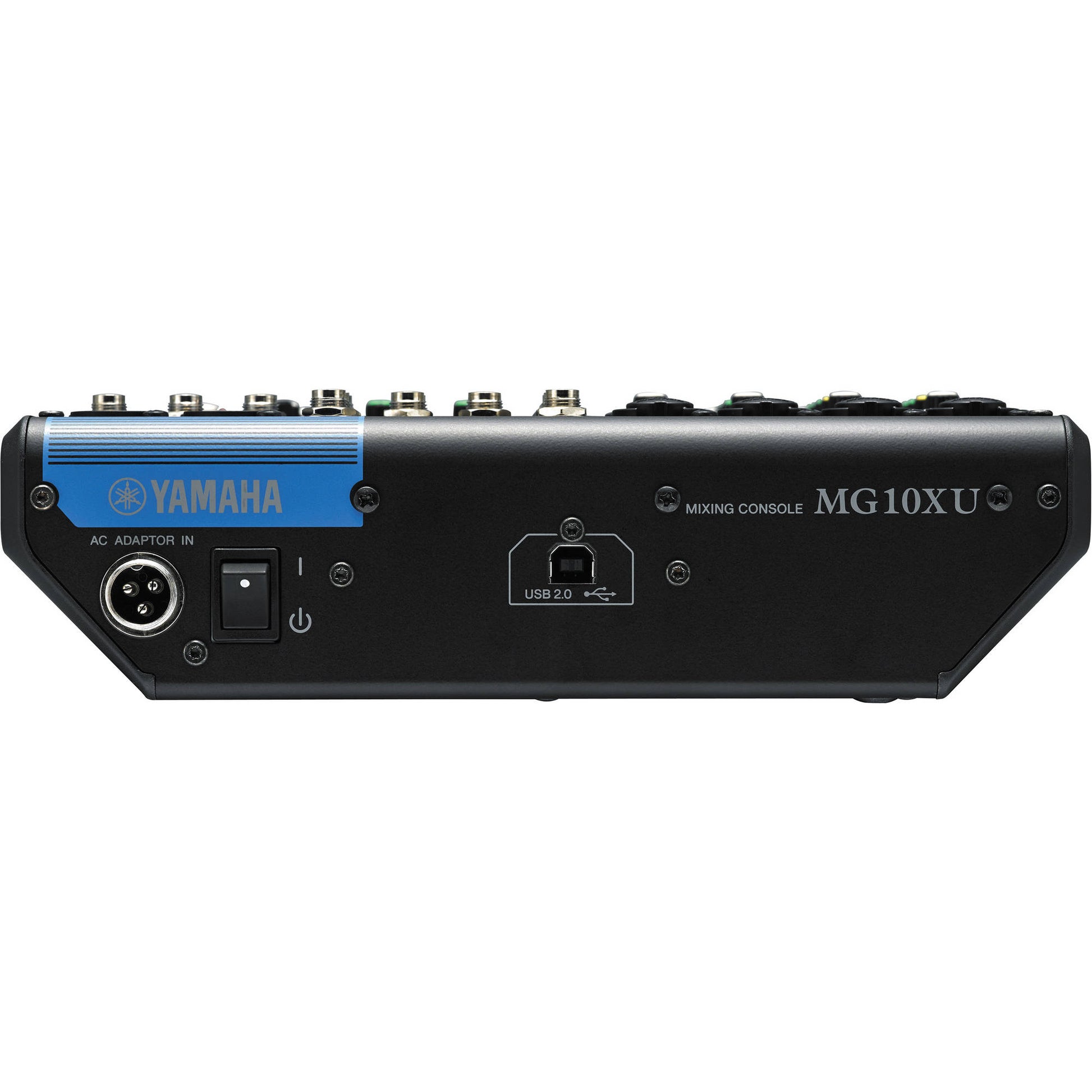

Digital I/O

USB: USB Audio Class 2.0 Compliant
Sampling Frequency: Max 192 kHz
Bit Depth: 24-Bit

Input Channels

4× Mono [Mic/Line]
3× Stereo [Line]

Output Channels

2× Stereo Out
1× Monitor Out
1× Headphone Out
1× FX Out

Bus

Stereo: 1
AUX [FX]: 1

Pad

26 dB (Mono Channels)

HPF

80 Hz, 12 dB/Oct (Mono Channels)

Compressor

Threshold: +22 dBu to -8 dBu
Ratio: 1:1 to 4:1
Output Level: 0 dB to 7 dB
Attack Time: Approx 25 msec
Release Time: Approx 300 msec

Equalizer

High Gain: ±15 dB, 10 kHz Shelving
Mid Gain: ±15 dB, 2.5 kHz Peaking
Low Gain: ±15 dB, 100 Hz Shelving

LED

Peak LED Turns On When Post EQ Signal Reaches 3 dB Below Clipping

Level Metering

2× 7-Segment LED Meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total Harmonic Distortion

0.02% @ +14 dBu (20 Hz–20 kHz), Gain Knob: Min
0.003% @ +24 dBu (1 kHz), Gain Knob: Min

Frequency Response

+0.5 / -1 dB (20 Hz–48 kHz) @ 1 kHz, Gain Knob: Min

Equivalent Input Noise

-128 dBu (Mono Input Channel, Rs: 150 Ω, Gain Knob: Max)

Residual Output Noise

-102 dBu (Stereo Out, Stereo Level Knob: Min)

Crosstalk

-83 dB

Power Requirement

PA-10 (AC 38 VCT, 0.62 A) or Equivalent Recommended by Yamaha

Power Consumption

22.9 W

Operating Temperature

32–104 °F / 0–40 °C

Physical

Dimensions (W × H × D)

9.6 × 2.8 × 11.6" / 244 × 71 × 294 mm

Net Weight

4.63 lb / 2.1 kg
