Key Specifications

Number of Analog Input Channels

16 (10 Mono / 4 Stereo)

Number of Mic Preamps

10

Analog Output Channels

1× Stereo Master Output
2× Stereo ALT Bus/Subgroup Output
1× Stereo Control Room/Monitor Output
4× Mono Aux Send Output

Mix Routing

Stereo Main Mix / Stereo Bus/Subgroup

EQ

3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)

Built-In Effects

24× Stereo Effect (Type Unspecified)

Wireless

No

Rack Mountable

Yes

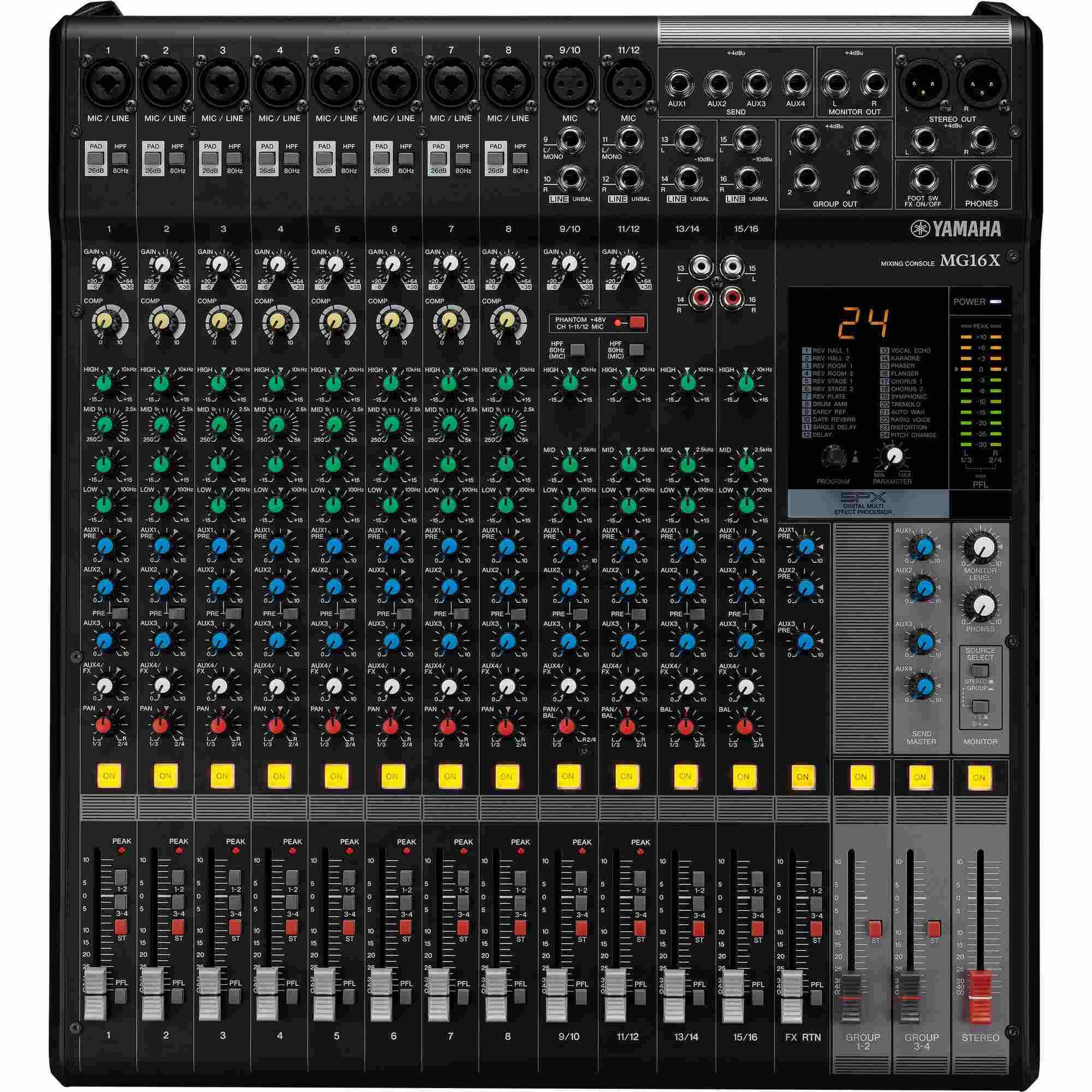

Mixer

Faders & Level Adjustment

12× Channel Fader
1× Master Fader
2× Bus/Subgroup Fader
1× FX Fader

Meters

2× 12-Segment LED
Meter Range: -30 dB to +17 dB Peak/Clip

Signal Processing

Gain / Trim Range

-6 dB to +64 dB

Input Pad

-26 dB

Dynamic Processing

Input Channels: Compressor

Sidechain Filters

No

EQ Parameters

Mono Channels: High ±15 dB @ 10 kHz (Shelving), Mid ±15 dB @ 2.5 kHz (Bell), Low ±15 dB @ 100 Hz (Shelving)
Stereo Channels: High ±15 dB @ 10 kHz (Shelving), Low ±15 dB @ 100 Hz (Shelving)

Graphic EQ

No

Filters

Input Channels: 10× High-Pass @ 80 Hz

Solo / Mute

PFL per Input Channel, Bus, FX Bus

Channel Output / Source Monitoring

PFL

Performance

Frequency Response

20 Hz to 48 kHz +0.5/-1.5 dB (at 1 kHz, Gain Min)

Output Level

+30 dBu at Max Gain

I/O Impedance

Combo XLR-1/4" / XLR Mic Input: 3 kΩ
1/4" Line Input: 10 kΩ (Unbalanced)

Crosstalk

-78 dB at 1 kHz

Equivalent Input Noise (EIN)

-128 dBu at Max Gain

Noise Floor

-102 dBu (Residual Output Noise)

THD + N

0.03% @ Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% @ Min Gain (+24 dBu, 1 kHz)

Connectivity

Analog Inputs

8× Combo XLR-1/4" Balanced/Unbalanced Mic/Line Input
2× XLR 3-Pin Balanced Mic Input
8× 1/4" TS Unbalanced Line Input (4 Stereo Pairs)
1× 1/4" TS Footswitch Input

Analog Outputs

2× XLR 3-Pin Balanced Stereo Main Output
2× 1/4" TRS Balanced Stereo Main Output
4× 1/4" TRS Balanced Stereo Bus Output
2× 1/4" TRS Balanced Stereo Monitor Output
4× 1/4" TRS Balanced Mono Aux Send
1× 1/4" TRS Unbalanced Stereo Headphone Output

Phantom Power

+48 V

Digital I/O

No

Wireless

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

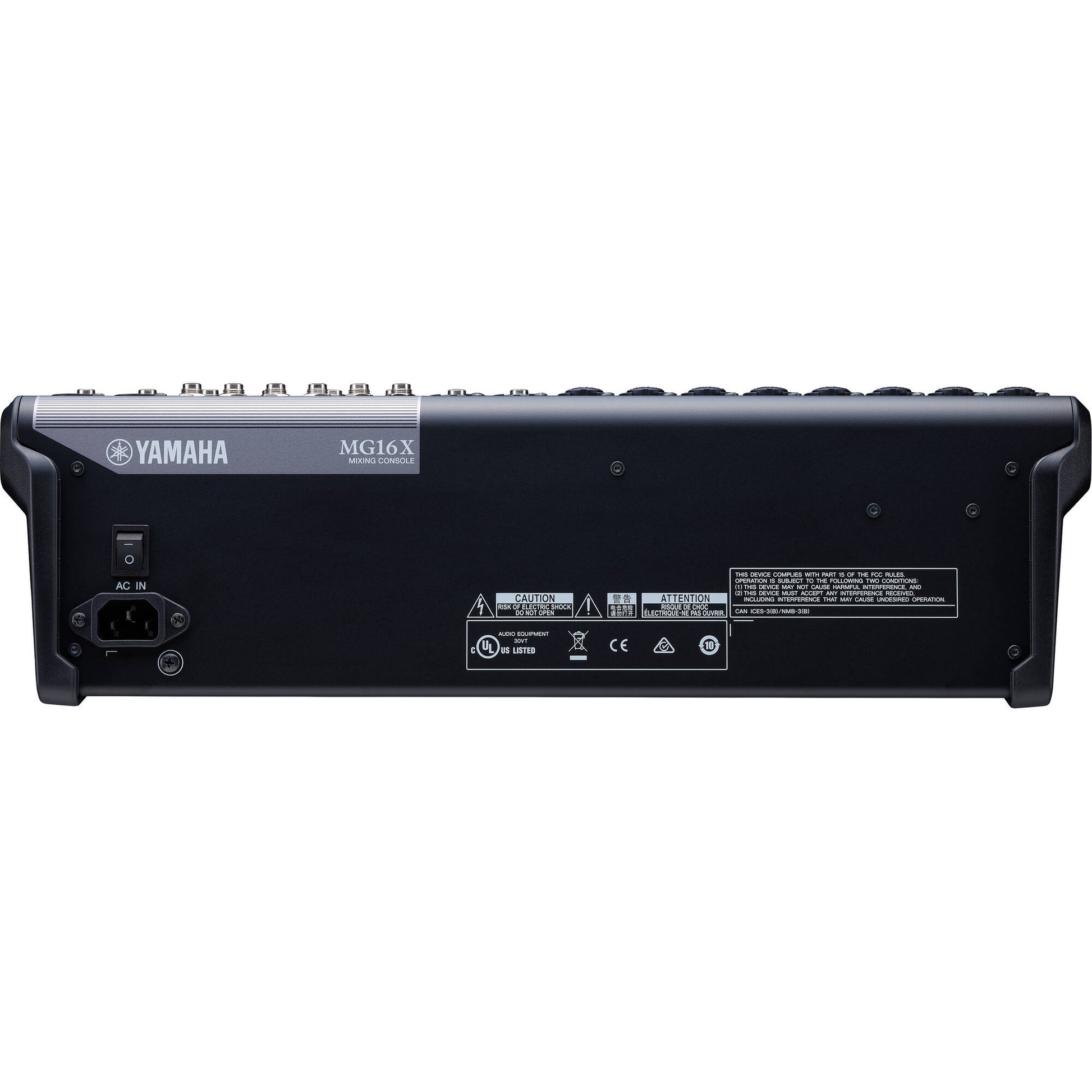

AC Power I/O

1× IEC Input

Power Consumption

30 W

Physical

Rack Mountable

Yes

Dimensions (W × H × D)

19.7 × 17.5 × 5.1" / 50 × 44.5 × 13 cm

Weight

15 lb / 6.8 kg

Packaging Info

Package Weight: 20.94 lb
Box Dimensions (L×W×H): 22 × 20 × 8.25"
