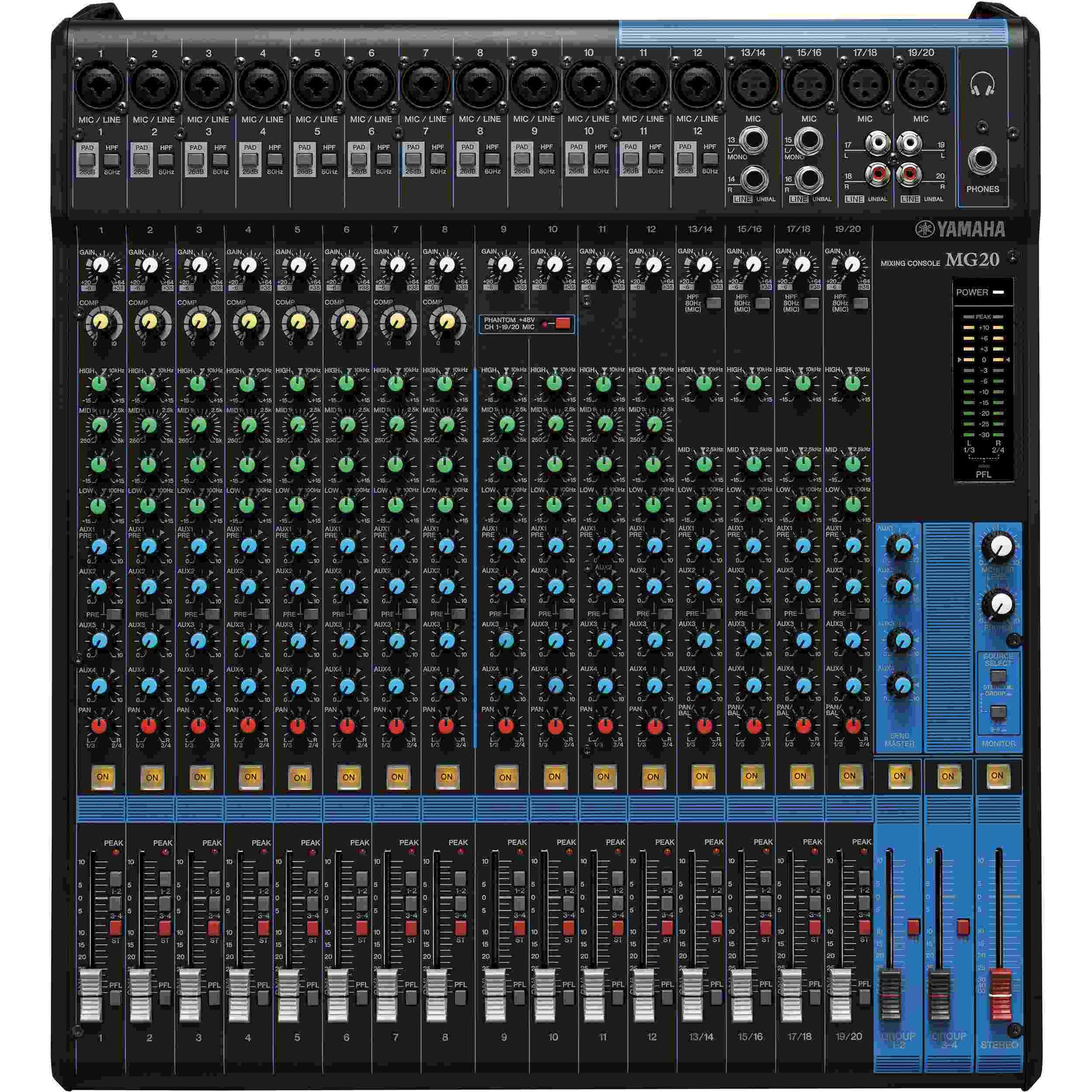

The MG20 from Yamaha is a compact mixer capable of twenty simultaneous inputs and is ideal for live performances, recordings, lectures and more. The mixer features twelve mono mic/line combo input channels, and four stereo line input channels that can also be used as mono mic or line inputs.
Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.
YAMAHA MG20
Key Specifications
Number of Analog Input Channels
16 (12 Mono / 4 Mono/Stereo)
Phantom Power
+48 V
Analog Output Channels

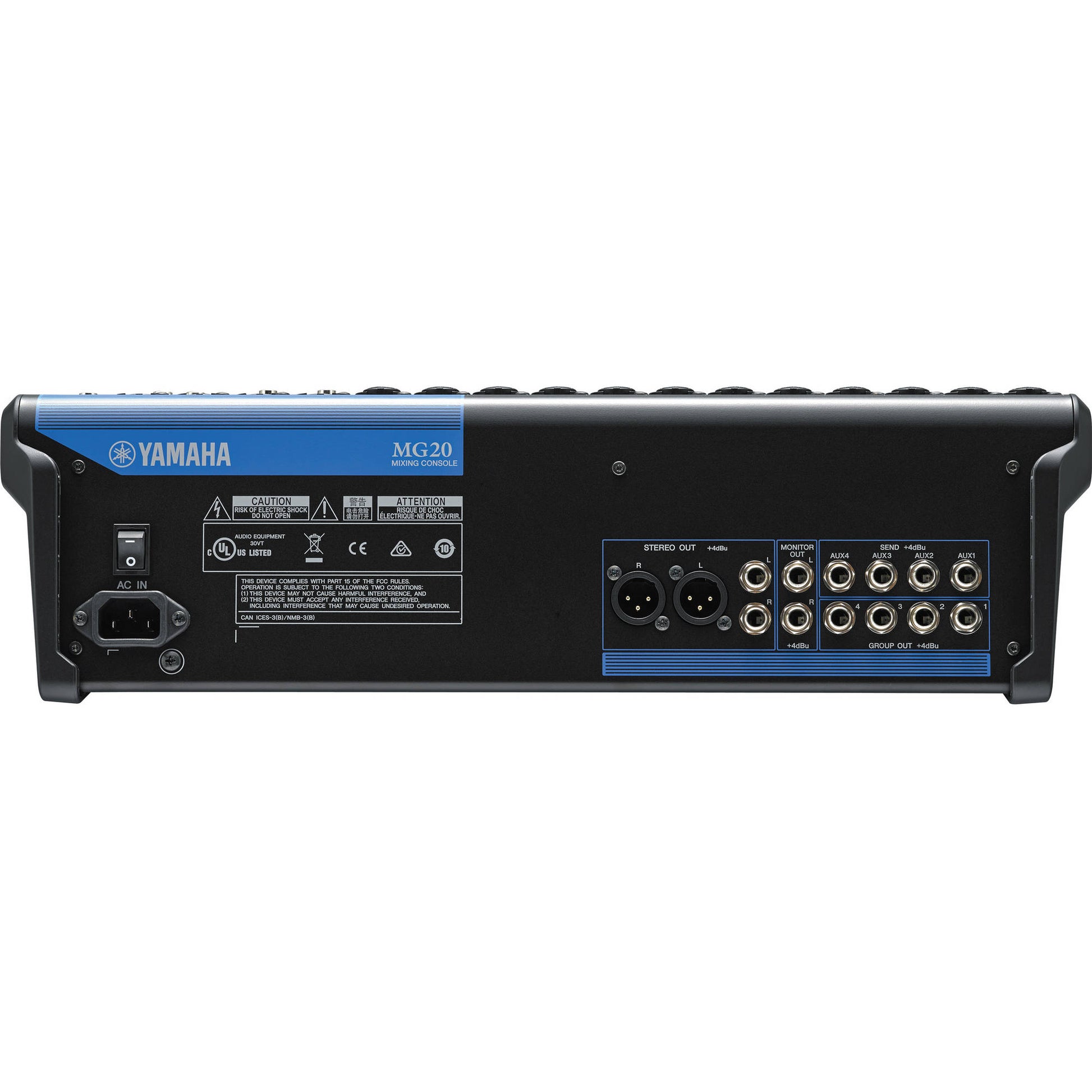

2× Stereo Out 1× Monitor Out 1× Headphone Out 4× Aux Out 4× Group Out
Mix Routing
Stereo: 1 AUX: 4 Group: 4
Pad
26 dB (Mono)
High-Pass Filter (HPF)
80 Hz, 12 dB/oct (Mono/Stereo: Mic only)
Compressor
Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output Level: 0 dB to 7 dB Attack Time: Approx. 25 msec Release Time: Approx. 300 msec
Equalizer
High Gain: ±15 dB @ 10 kHz Shelving Mid Gain: Mono 250 Hz – 5 kHz Peaking, Stereo 2.5 kHz Peaking ±15 dB Low Gain: ±15 dB @ 100 Hz Shelving
LED
Peak LED: Turns on when post EQ signal reaches 3 dB below clipping (Mono) Level Meter: 2× 12-segment LED [Peak, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Performance
Total Harmonic Distortion (THD)
0.03% @ +14 dBu (20 Hz – 20 kHz), Gain Knob: Min 0.005% @ +24 dBu (1 kHz), Gain Knob: Min
Frequency Response
+0.5 dB / -1.5 dB (20 Hz – 48 kHz), refer to nominal output level @ 1 kHz, Gain Knob: Min
