Key Specifications

Product / Accessory Type

32-Channel Analog Mixing Console / Mixer

Input Channel Configuration

32 Channels Total (24 Mono Channels / 4 Stereo Pairs)

Maximum I/O Capacity

32 Inputs / 14 Outputs

Faders & Level Adjustment

36 Faders Total (28x Channel, 2x FX, 4x Bus/Subgroup, 2x Master)

Metering

Main Meter: 2x 12-Segment LED Indicators

Form Factor & Rack Mountability

Desktop / Console (Non-Rack Mountable)

Audio, Processing & Performance Specifications

Microphone Preamps & Phantom Power

24 Mic Preamps (+48 V Phantom Power)

Gain Range & Attenuation Pad

Gain/Trim: -60 dB to +10 dB; Input Pad: -26 dB; Polarity Switch

Channel EQ & Graphic EQ

3-Band EQ (Mono Channels); Integrated Graphic EQ

High-Pass Filter (HPF)

100 Hz (12 dB/Octave) per Input Channel

Dynamic Processing

Compressor & Multi-Band Compressor

Built-In Effects

1x Stereo Reverb, 1x Stereo FX Processor

Frequency Response

20 Hz to 20 kHz (+0.5/-1 dB @ 1 kHz)

Total Harmonic Distortion (THD)

0.02% @ Min Gain (+14 dBu, 20 Hz to 20 kHz)

Noise Floor

-120 dB (-128 dB Equivalent Input Noise)

Digital Resolution / Sample Rate

16-Bit, 44.1 kHz / 48 kHz

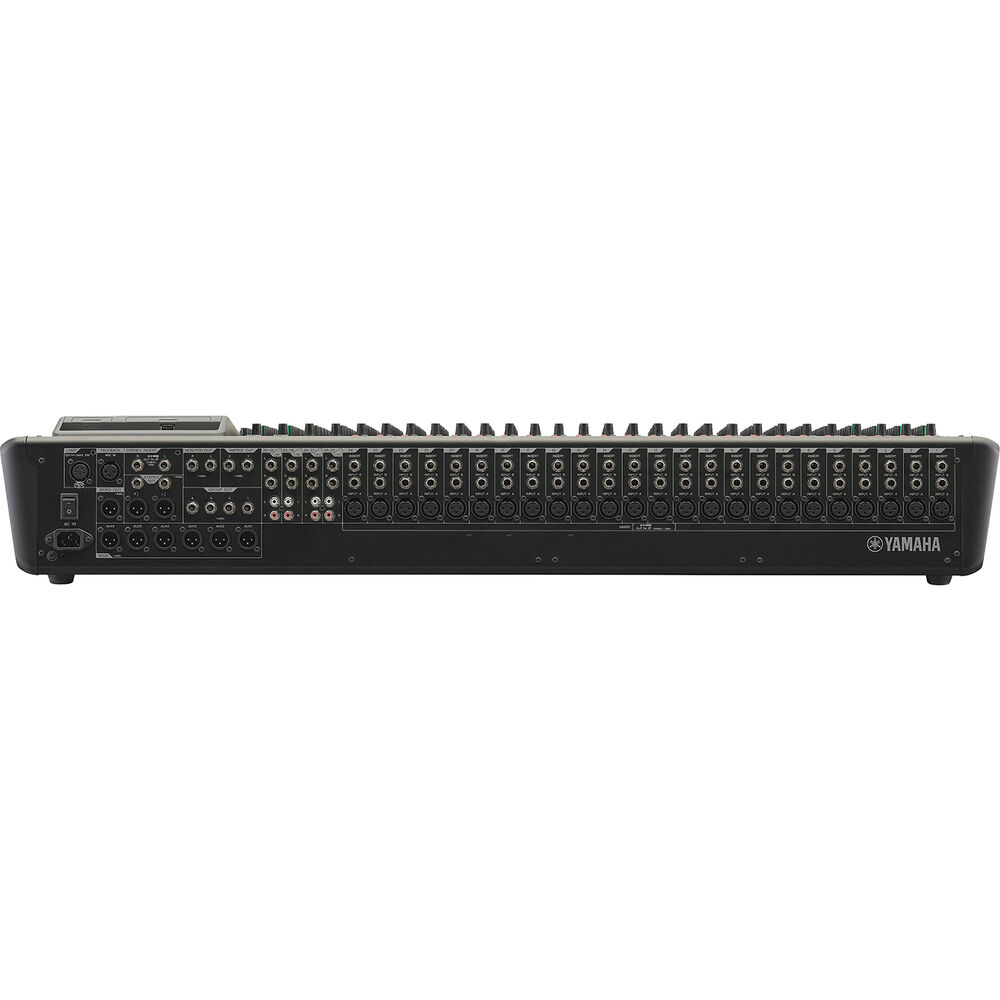

Connectivity & Power Specifications

Mic & Line Inputs

24x XLR Balanced Mic, 24x 1/4" TRS Line, 8x 1/4" TS Line (4 Stereo Pairs), 1x XLR Talkback

Channel Inserts & Sends

24x 1/4" TRS Channel Inserts, 2x 1/4" TS Stereo Inserts, 24x 1/4" TRS Insert Sends, 2x 1/4" TRS Main Insert Sends

Analog Audio Outputs

2x XLR Main Out (Stereo Pair), 1x XLR Mono-Summed Out, 4x 1/4" TRS Bus Out, 6x XLR Aux Send, 2x 1/4" TRS Control Room Out, 1x 1/4" TRS Headphone Out

USB Audio Interface

1x USB-A 2.0 (2 Inputs x 2 Outputs Capacity)

Wireless & Digital I/O

No Wireless / No MIDI / No Digital Audio I/O

AC Power Input

100 to 240 VAC, 50 / 60 Hz

Dimensions & Physical Specifications

Console Dimensions (W×H×D)

1,026 mm x 170 mm x 564 mm (40.40" x 6.70" x 22.20")

Net Weight

19.00 kg (41.90 lbs)
