Key Specification

Model

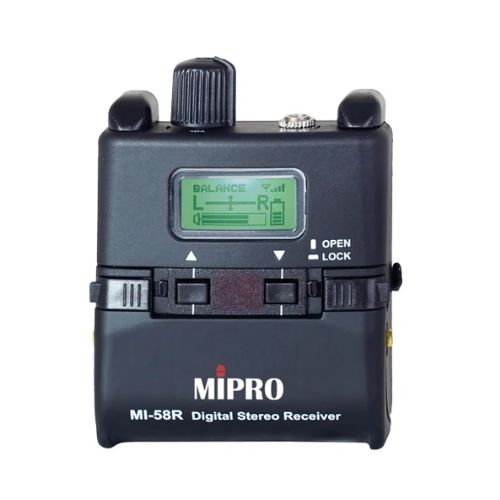

MI-58R

Name

5 GHz Digital Stereo Bodypack Receiver

Housing

Reinforced plastic

Display

Backlit graphic LCD

Control Interface

ACT sync sensor, setting buttons and volume control

Frequency Range

ISM 5.8 GHz

Receiving Mode

True diversity

Audio Mode

STEREO / MIXED

L / R Balance Adjustment

Allows shifting the stereo output toward the left or right channel

ENG Mode

Yes, up to 16 sets (requires transmitter setup)

EQ

FLAT / LO-CUT / LO-BOT / HI-BOT

Frequency Response

20 Hz – 23 kHz (stereo)

Dynamic Range

≥ 109 dBA (system)

Stereo Separation

> 100 dB

THD

< 0.1% @ 1 kHz

Latency

Approx. 1.8 ms (group B)

Sensitivity

5 μV (S/N > 100 dB)

Output Power

Left/Right × 100 mW @ 16 Ω

Earphone Jack

3.5 mm TRS

Power Supply

One 18500 Li-ion battery

Battery Charging

MP-8 charging dock

Operating Time

> 8 hours

Accessories

E-9 / E-8S earphones (optional)

Dimensions

63 × 85 × 26 mm (W × H × D)

Weight

Approx. 75 g
