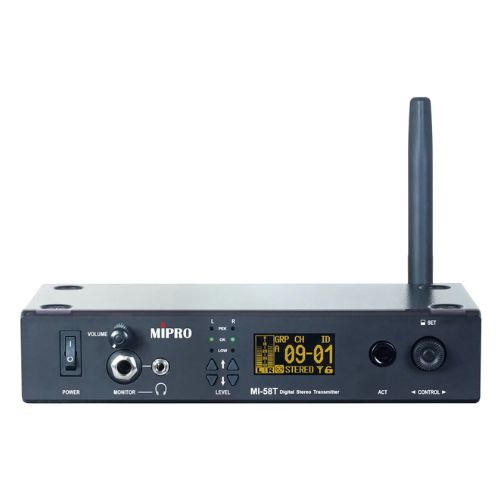

MI-58T

Features two selectable groups: Group A with 12 channels, and Group B with subgroups B1 and B2, each offering 12 channels—allowing flexible frequency planning for complex venues.
Each channel supports 64 user IDs and one encrypted ID, enabling multiple systems to operate in close proximity without crosstalk.
Equipped with an OLED display and a rotaty knob for intuitive navigation, with a lock function to prevent accidental changes.
XLR / 6.3 mm combo input accommodates both balanced and unbalanced sources; 6.3 mm LOOP OUT allows easy signal routing to additional equipment.
Includes 6.3 mm and 3.5 mm headphone outputs with adjustable volume for convenient real-time monitoring.

MIPRO

₱21,000.00 VAT INC.

₱21,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-MI58T-CHN-5924

Features two selectable groups: Group A with 12 channels, and Group B with subgroups B1 and B2, each offering 12 channels—allowing flexible frequency planning for complex venues.
Each channel supports 64 user IDs and one encrypted ID, enabling multiple systems to operate in close proximity without crosstalk.
Equipped with an OLED display and a rotaty knob for intuitive navigation, with a lock function to prevent accidental changes.
XLR / 6.3 mm combo input accommodates both balanced and unbalanced sources; 6.3 mm LOOP OUT allows easy signal routing to additional equipment.
Includes 6.3 mm and 3.5 mm headphone outputs with adjustable volume for convenient real-time monitoring.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO MI-58T

Key Specification
Model	MI-58T
Name	5 GHz Digital Stereo Transmitter
Chassis	Half-rack (9.5") metal chassis
Display	Graphic OLED
Control Interface	Rotary knob, ACT sync button, earphone volume control, AF input gain setting buttons
Frequency Response	20 Hz – 23 kHz (stereo)
Channels	Group A presets 12 channels. Group B presets 12 channels for each subgroup B1 & B2.
Encryption	64 ID codes and 1 encrypted ID are allowed to be set for each channel.
ENG Mode	Yes, up to 16 sets (requires receiver setup)
Modulation Type	Digital modulation
Audio Sampling	48 kHz / 24-bit
RF Power Output	< 25 mW (country dependent)
Dynamic Range	≥ 109 dBA (system)
THD	< 0.1% @ 1 kHz
Max. Input Level	+24 dBu
Audio Inputs	2 × XLR / 6.3 mm TRS combo sockets
Audio Outputs	2 × 6.3 mm TRS (Loop Out)
Earphone Jacks	1 × 6.3 mm and 1 × 3.5 mm TRS
Management Interface	2 × RJ-11
Antenna Output	50 Ω TNC female connector
Power Supply	DC 12–15 V, external AC 100–240 V switching power supply
Dimensions	210 × 44 × 91 mm (W × H × D)
Weight	Approx. 570 g
