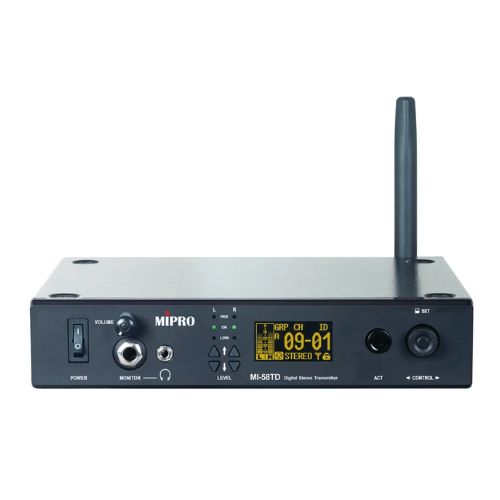

MI-58TD

OLED display and jog wheel provide intuitive control, with a lock function to avoid accidental changes.
XLR / 6.3 mm combo input supports balanced and unbalanced sources; 6.3 mm LOOP OUT enables signal pass-through to other devices.
6.3 mm and 3.5 mm headphone outputs with adjustable volume for direct monitoring.
Pairs with the AD-58 antenna combiner and external antennas to maximize coverage and signal reliability.
Built-in Dante interface simplifies integration with digital audio networks, reducing cabling complexity and enabling multi-unit connectivity.

MIPRO

₱31,000.00 VAT INC.

₱31,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-MI58TD-CHN-543

OLED display and jog wheel provide intuitive control, with a lock function to avoid accidental changes.
XLR / 6.3 mm combo input supports balanced and unbalanced sources; 6.3 mm LOOP OUT enables signal pass-through to other devices.
6.3 mm and 3.5 mm headphone outputs with adjustable volume for direct monitoring.
Pairs with the AD-58 antenna combiner and external antennas to maximize coverage and signal reliability.
Built-in Dante interface simplifies integration with digital audio networks, reducing cabling complexity and enabling multi-unit connectivity.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO MI-58TD

Key Specification
Model	MI-58TD
Name	5 GHz Digital Stereo Transmitter
Chassis	Half-rack (9.5") metal chassis
Display	Graphic OLED
Control Interface	Rotary knob, ACT sync button, earphone volume control, AF input gain setting buttons
Frequency Response	20 Hz – 23 kHz (stereo)
Channels	Group A presets 12 channels. Group B presets 12 channels for each subgroup B1 & B2.
Encryption	64 ID codes and 1 encrypted ID are allowed to be set for each channel.
ENG Mode	Yes, up to 16 sets (requires receiver setup)
Modulation Type	Digital modulation
Audio Sampling	48 kHz / 24-bit
RF Power Output	< 25 mW (country dependent)
Dynamic Range	≥ 109 dBA (system)
THD	< 0.1% @ 1 kHz
Max. Input Level	+24 dBu
Audio Inputs	2 × XLR / 6.3 mm TRS combo sockets
Audio Outputs	2 × 6.3 mm TRS (Loop Out)
Earphone Jacks	1 × 6.3 mm and 1 × 3.5 mm TRS
Network Interface	Dante
Management Interface	2 × RJ-11
Antenna Output	50 Ω TNC female connector
Power Supply	DC 12–15 V, external AC 100–240 V switching power supply
Dimensions	210 × 44 × 162 mm (W × H × D)
Weight	Approx. 860 g
