Key Specification

Model

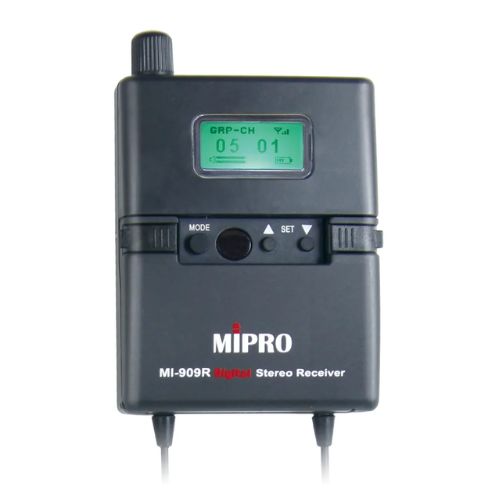

MI-909R

Name

UHF Digital Stereo Bodypack Receiver

Housing

Composite of various materials

Display

Backlit graphic LCD

Control Interface

ACT sync sensor, setting buttons and volume control

Frequency Range

UHF 470 – 639 MHz / 705 – 960 MHz (country dependent)

Receiving Mode

Digital diversity

Audio Mode

STEREO / MONO-L / MONO-R / MIXED

L / R Balance Adjustment

Allows shifting the stereo output toward the left or right channel

EQ

FLAT / LO-CUT / HI-BST / LC&HB

Frequency Response

20 Hz – 15 kHz (stereo)

Dynamic Range

≥ 95 dBA

Stereo Separation

> 90 dB

THD

Approx. < 0.1% @ 1 kHz

Latency

< 6 ms

Sensitivity

10 μV (S/N > 90 dB)

Output Power

Left/Right × 120 mW @ 16 Ω

Earphone Jack

3.5 mm TRS

Power Supply

Two AA alkaline batteries

Operating Time

Approx. 6 to 8 hours

Accessories

E-9 / E-8S earphones (optional)

Dimensions

63 × 82 × 23 mm (W × H × D)

Weight

Approx. 95 g
