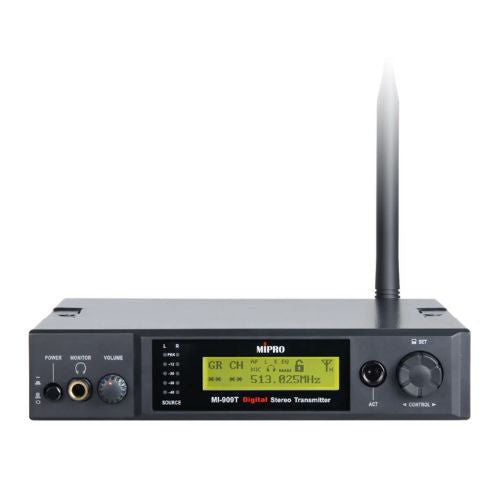

MI-909T

Supports MIPRO’s ACT automatic pairing, enabling instant, one-touch synchronization with the receiver.
Selectable LOW / HIGH / OFF RF power settings—up to 100 mW—accommodate varying stage distances and regional regulations.
Factory-preset with 16 groups and 216 channels, with user access to an extended pool of 2,560 frequencies for complex multi-system deployments.
XLR / 6.3 mm combo input supports balanced and unbalanced sources, with a high dynamic range to integrate seamlessly with professional mixers and consoles.
Built-in 3-step ±9 dB EQ allows fine adjustment to match source characteristics and application needs.

MIPRO

₱31,000.00 VAT INC.

₱31,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-MI909T-CHN-3918

Supports MIPRO’s ACT automatic pairing, enabling instant, one-touch synchronization with the receiver.
Selectable LOW / HIGH / OFF RF power settings—up to 100 mW—accommodate varying stage distances and regional regulations.
Factory-preset with 16 groups and 216 channels, with user access to an extended pool of 2,560 frequencies for complex multi-system deployments.
XLR / 6.3 mm combo input supports balanced and unbalanced sources, with a high dynamic range to integrate seamlessly with professional mixers and consoles.
Built-in 3-step ±9 dB EQ allows fine adjustment to match source characteristics and application needs.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO MI-909T

Key Specification
Model	MI-909T
Name	UHF Digital Stereo Transmitter
Chassis	Half-rack (9.5") metal chassis
Display	Backlit LCD & L/R Input LED Bar
Control Interface	Rotary knob, ACT sync button, and earphone volume control
Frequency Response	20 Hz – 15 kHz (stereo)
Channels	16 preset groups and 216 frequencies
Encryption	Static & Scroll
Modulation Type	Digital modulation
Audio Sampling	24-bit
RF Power Output	LOW: < 10 mW, HIGH: < 100 mW (country dependent)
Dynamic Range	112 dBA (ADC spec.)
EQ	3 settings (LOW / MID / HI ±9 dB) or FLAT
THD	Approx. < 0.1% @ 1 kHz
Max. Input Level	> +26 dBu, selectable Line / Mic Level
Audio Inputs	2 × XLR / 6.3 mm TRS combo sockets
Audio Outputs	2 × 6.3 mm TRS (Loop Out)
Earphone Jacks	1 × 6.3 mm TRS
Management Interface	2 × RJ-11
Antenna Output	50 Ω TNC female connector
Power Supply	DC 12–15 V, external AC 100–240 V switching power supply
Dimensions	210 × 44 × 206 mm (W × H × D)
Weight	Approx. 1.1 kg
