Key Specifications

Product / Accessory Type

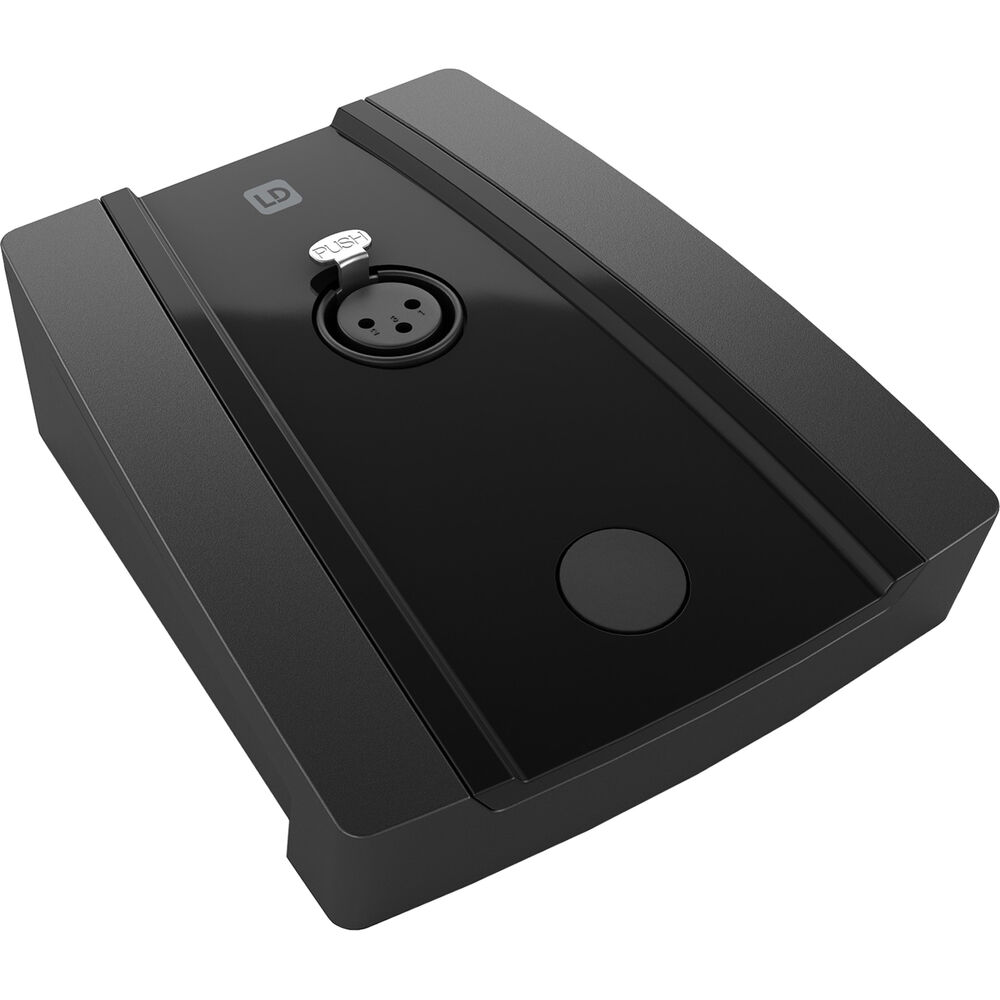

Desktop Gooseneck Microphone Base with Integrated Switch

Configurable Control Switch Modes

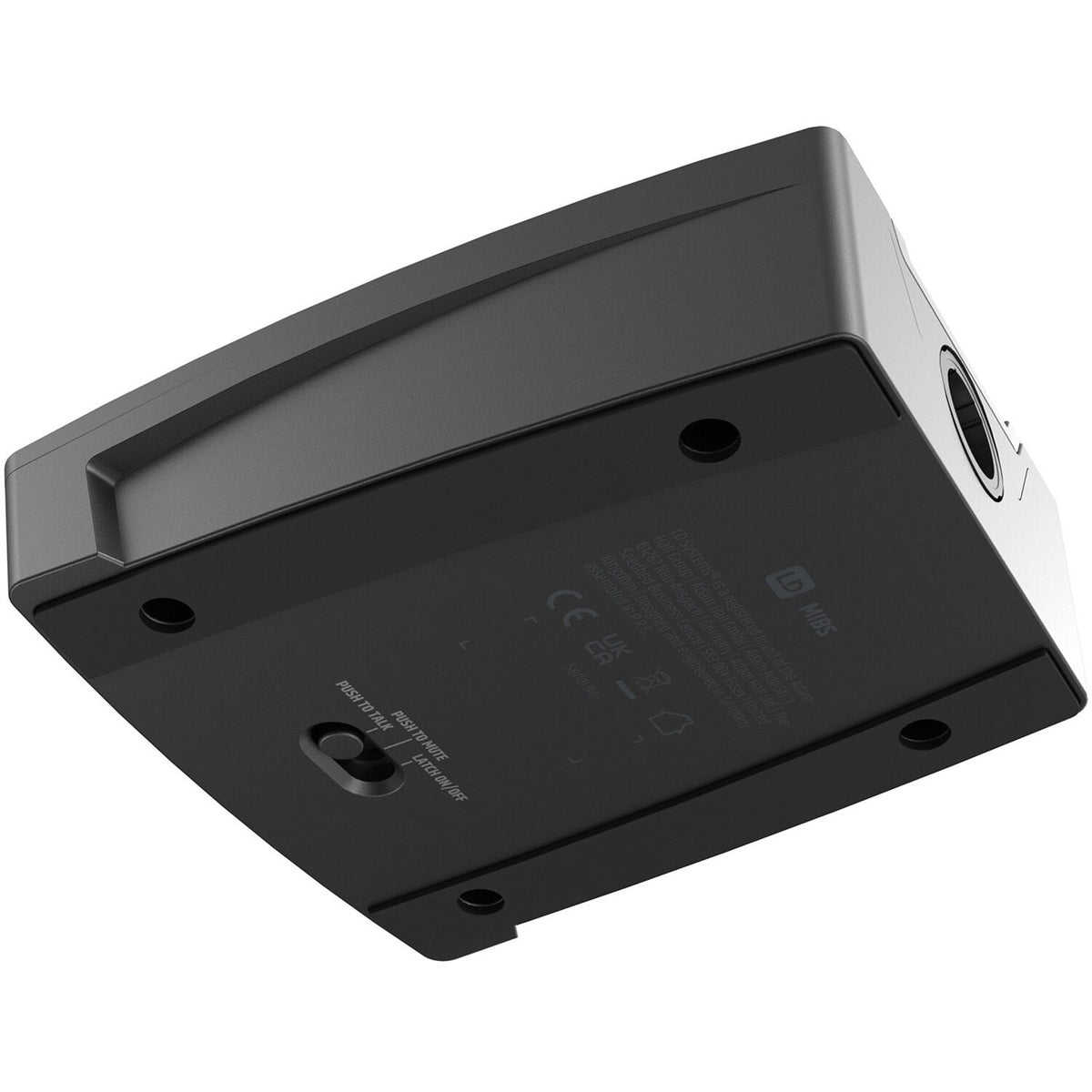

Configurable Push Button with 3 Selectable Operating Modes:
1. Push-to-Talk (PTT)
2. Push-to-Mute (PTM)
3. Latch On / Off

Status Indicators

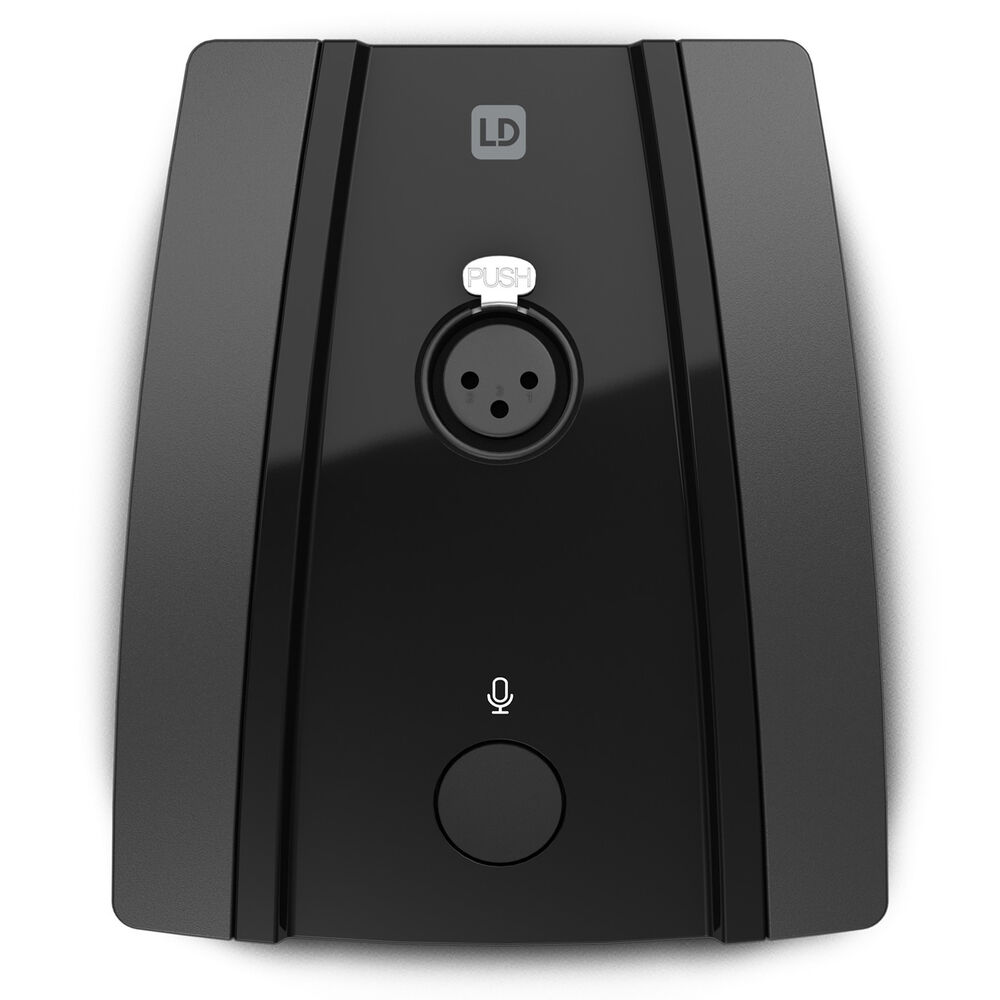

Talk LED Indicator with White Microphone Icon When Active

Product Color & Finish

Black Finish

Acoustic & Electrical Performance Specifications

Frequency Response

90 Hz to 20,000 Hz (-3 dB)

Preamplifier Gain

5.5 dB

Input & Output Impedance

Input Impedance: 47 kOhms (Balanced);
Output Impedance: 800 Ohms (Balanced)

Off Attenuation

> 75 dB @ 1 kHz

Common Mode Rejection Ratio (CMRR)

> 65 dB (IEC Standard)

Connectivity & Power Specifications

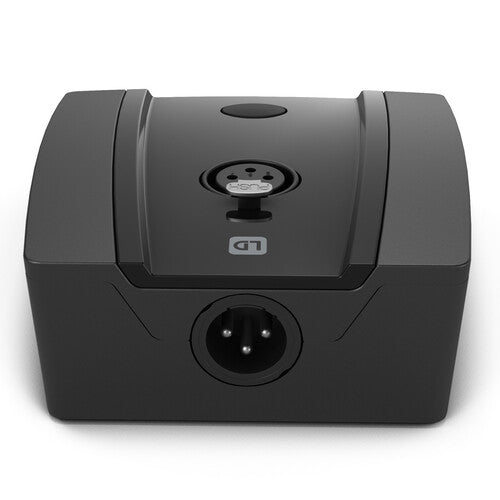

Audio Input Connector

1x 3-Pin XLR Female (Gooseneck Input Terminal)

Audio Output Connector

1x 3-Pin XLR Male (Main System Output Terminal)

Operating Voltage & Current Draw

15 V to 48 V DC Phantom Power (±10%);
Operating Current: 6 mA Typical

Power Consumption

3 mW (Idle / Muted Power Consumption)

Environmental Operating Limits

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Limits

< 85% Relative Humidity (Non-Condensing)

Dimensions, Weight & Packaging Specifications

Base Dimensions (W×H×D)

126.20 mm x 38.70 mm x 109.80 mm (5.00" x 1.50" x 4.30")

Product Net Weight

0.50 kg (1.20 lbs)

Package Shipping Weight

0.64 kg (1.40 lbs)

Packaging Box Dimensions (L×W×H)

165.10 mm x 119.38 mm x 60.96 mm (6.50" x 4.70" x 2.40")
