Key Specifications

Inputs/Outputs

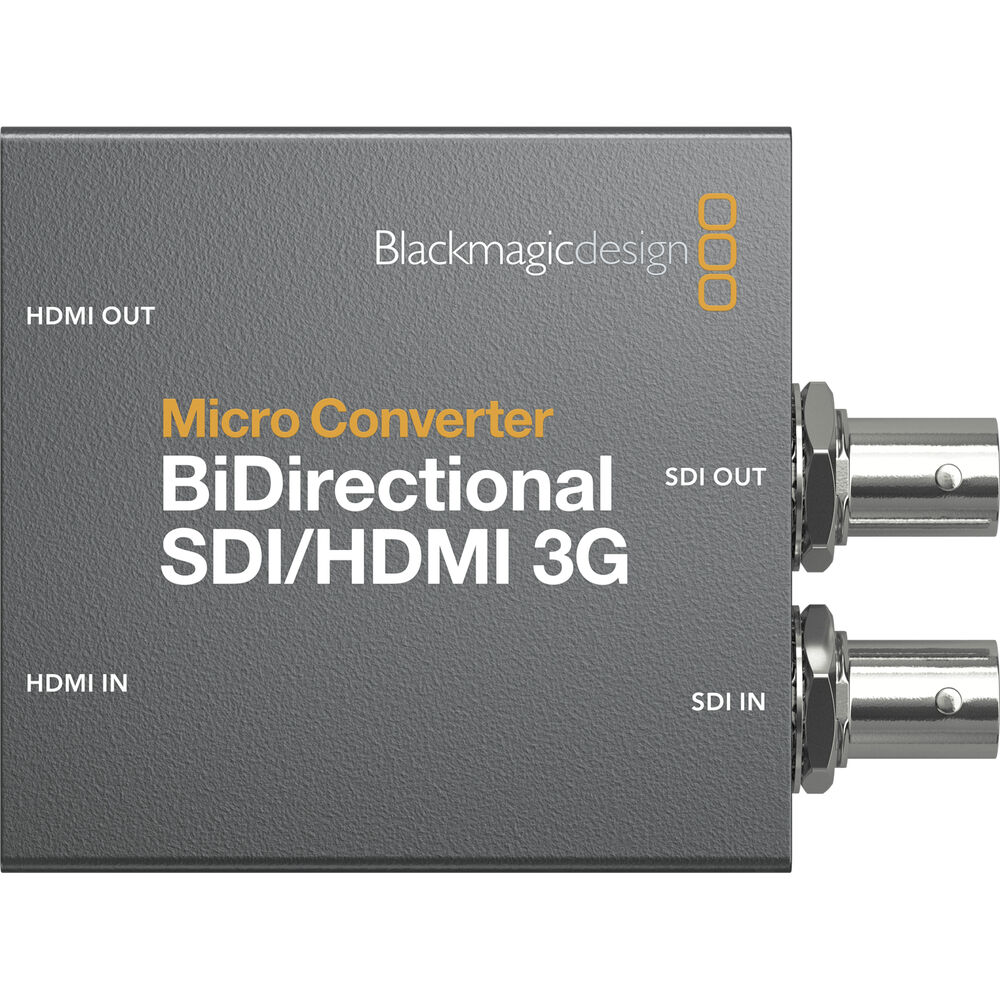

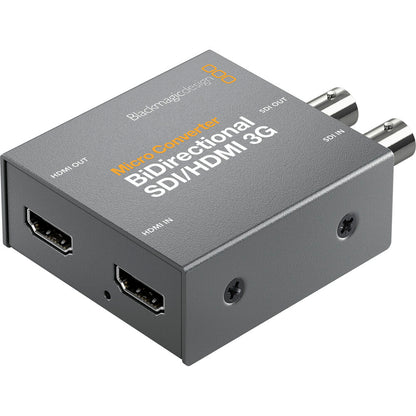

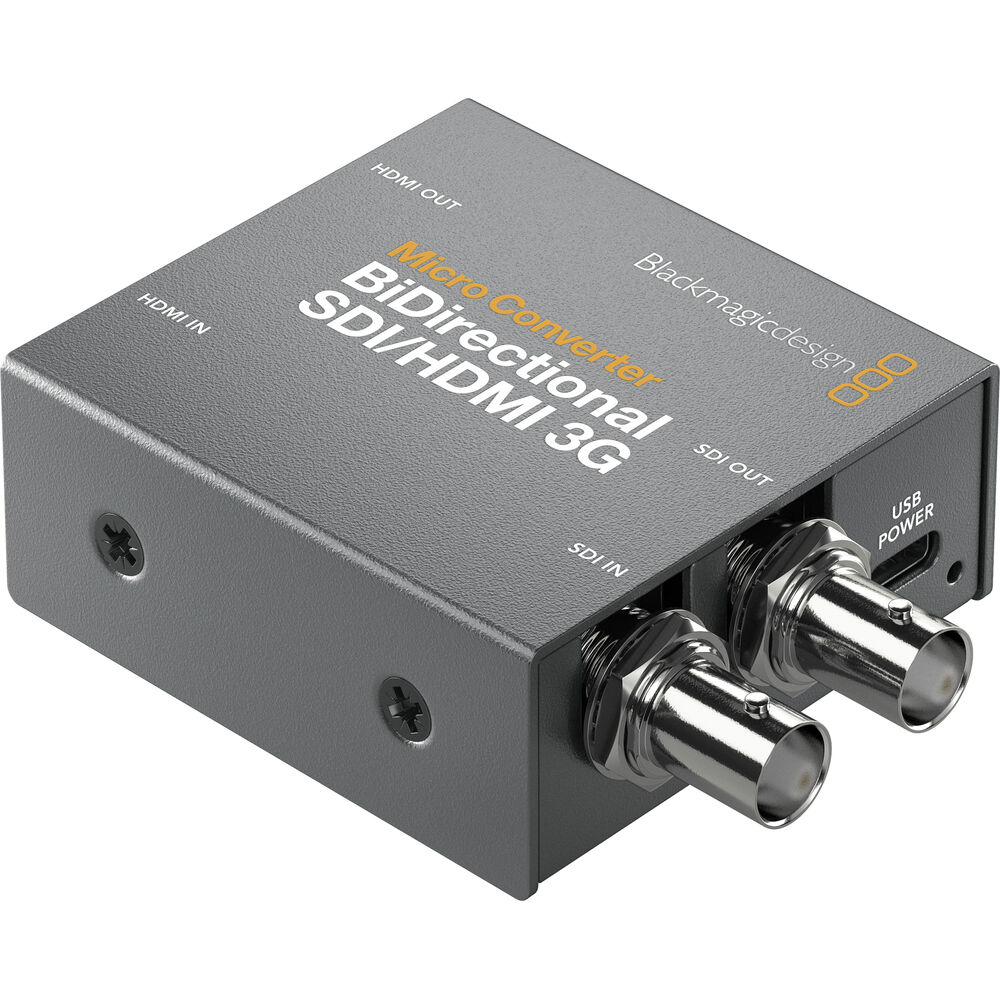

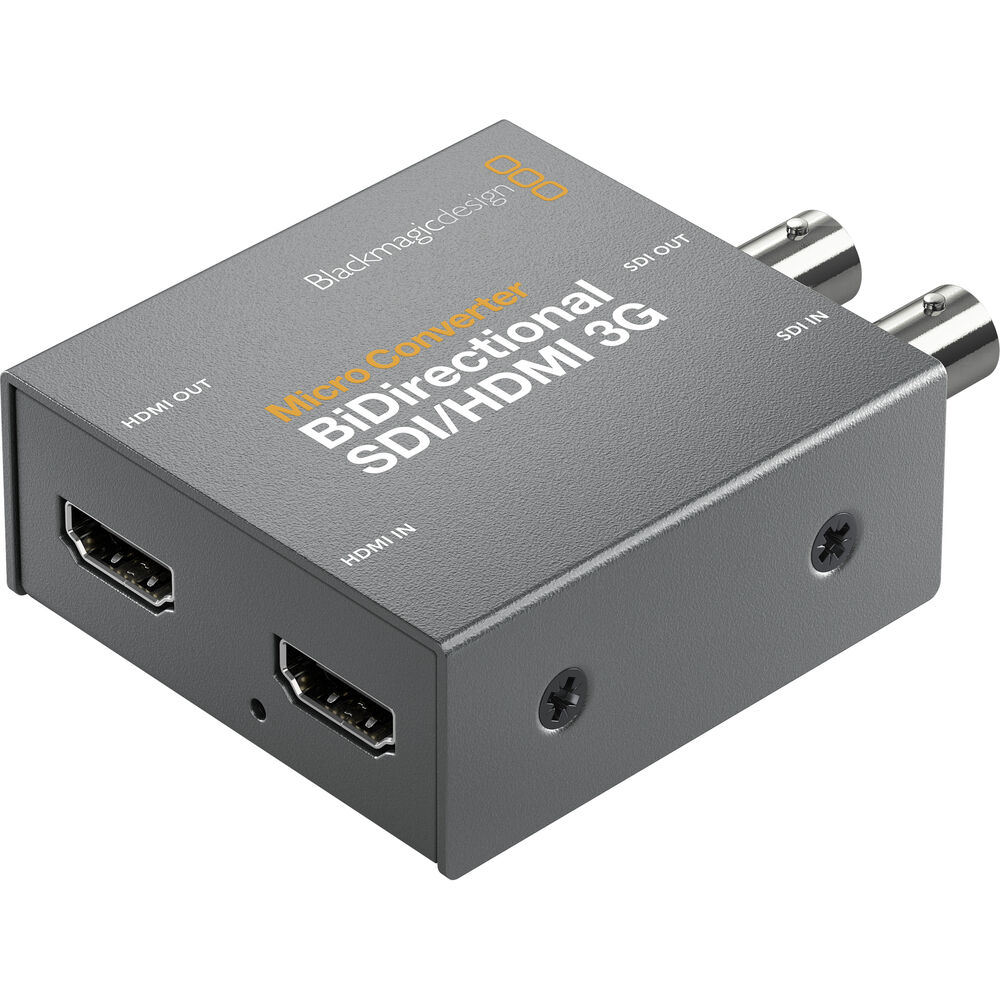

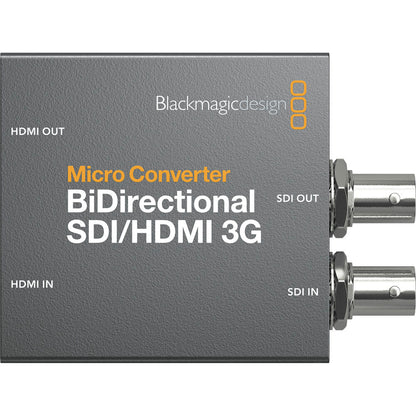

• Video Inputs: 1 x BNC (3G-SDI), 1 x HDMI (2.0)
• Audio Inputs: None
• Video Outputs: 1 x BNC (3G-SDI), 1 x HDMI (2.0)
• Audio Outputs: None
• Other I/O: 1 x USB-C Input
• Expansion Slots: None

Format Support

• SDI Input Formats: 8/10-Bit 4:2:2 RGB, YUV – DCI 2K (23.98–60 fps), 1080p (23.98–60 fps), 1080PsF (25–30 fps), 1080i (50–60 fps), 720p (50–60 fps), 480i (59.94 fps), 576i (50 fps)
• HDMI Input Formats: 8/10-Bit 4:2:2 RGB, YUV – 1080p (23.98–60 fps), 1080i (50–60 fps), 720p (50–60 fps), 480i (29.97 fps), 576i (25 fps)
• SDI Output Formats: 8/10-Bit 4:2:2 RGB, YUV – DCI 2K (23.98–60 fps), 1080p (23.98–60 fps), 1080PsF (25–30 fps), 1080i (50–60 fps), 720p (50–60 fps), 480i (29.97 fps), 576i (25 fps)
• Embedded Audio: HDMI/SDI

Standards & Compliance

• Video Standard Compliance: SMPTE 259M/292M/296M/424M/425M-A/425M-B
• HDR Support: No
• Tally Light: No
• Wireless: No
• OS Compatibility: macOS 10.15, macOS 11.1 or Later, Windows 10 (64-Bit Only)

Power & Physical

• Power Input: 1 x USB-C (4.4 to 5.2 VDC)
• Power Consumption: 2.5 W
• Dimensions: 3.13 x 1.8 x 0.98" / 79.5 x 45.7 x 24.89 mm
• Weight: 5.9 oz / 167 g

Environmental

• Operating Temperature: 32 to 72°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C
• Operating Humidity: 0 to 90%

Packaging Info

• Package Weight: 0.95 lb
• Box Dimensions (LxWxH): 5.75 x 4.85 x 2.9"
